16 10/100Mbps RJ45 ports
Innovative energy-efficient technology saves power up to 75%
Supports MAC address self-learning and auto MDI/MDIX
Standard 19-inch rack-mountable steel case
Specifications
| Ports | 16 x 10/100 |
|---|
| Power | AC 120/230 V (50/60 Hz) |
|---|
| Subtype | Fast Ethernet |
|---|
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
|---|
| Device Type | Switch - 16 ports |
|---|
| Enclosure Type | 1U |
|---|
| Dimensions (WxDxH) | 44 cm x 18 cm x 4.4 cm |
|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|

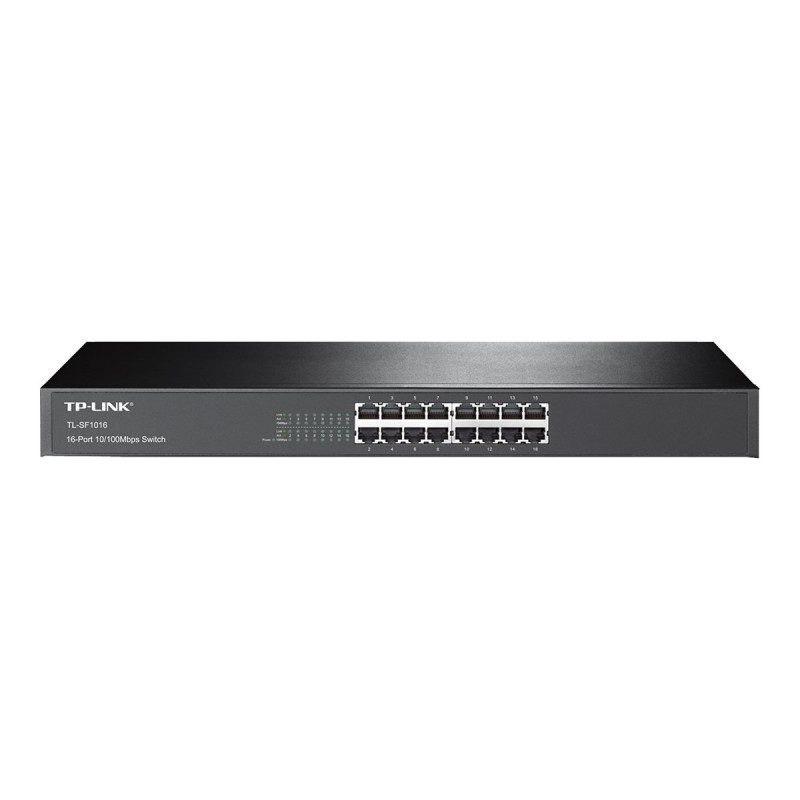

| Product Description | TP-Link TL-SF1016 - switch - 16 ports |
|---|
Dimensions & Weight
| Width | 44 cm |
|---|
| Depth | 18 cm |
|---|
| Height | 4.4 cm |
|---|
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|
| Max Operating Temperature | 40 C |
|---|
| Humidity Range Operating | 10 - 90% |
|---|
Expansion / Connectivity
| Interfaces | 16 x 100Base-TX RJ-45 |
|---|
General
| Device Type | Switch - 16 ports |
|---|
| Enclosure Type | Desktop 1U |
|---|
| Subtype | Fast Ethernet |
|---|
| Ports | 16 x 10/100 |
|---|
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward |
|---|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
|---|
| Status Indicators | Power, link/activity |
|---|
Miscellaneous
| Compliant Standards | Plug and Play, FCC |
|---|
Power
| Power Device | Internal power supply |
|---|
| Voltage Required | AC 120/230 V (50/60 Hz) |
|---|
Resources
Product information source: Dicker Data Partner Portal.
