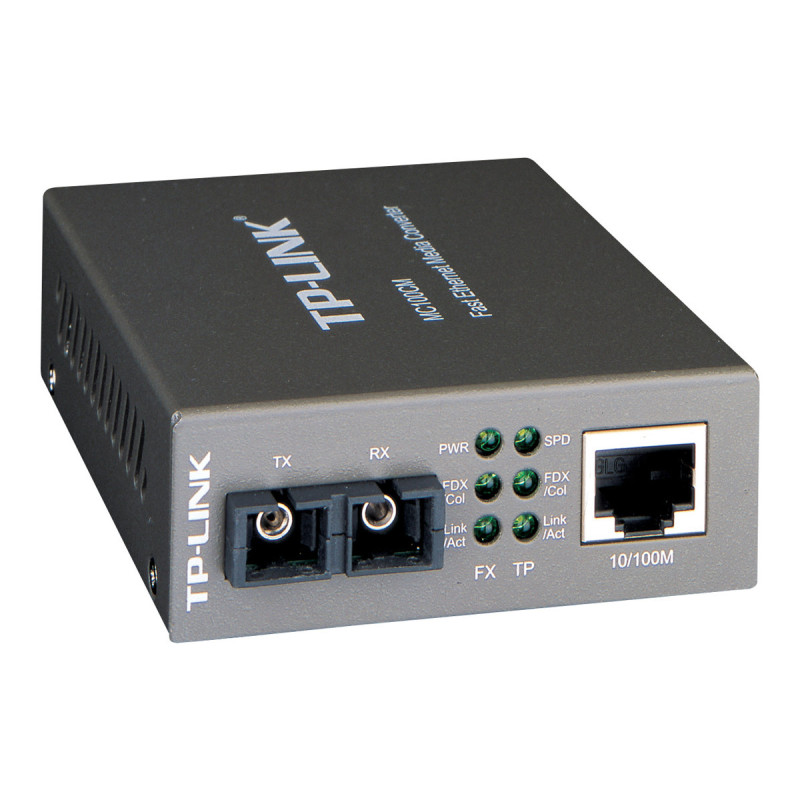

TP-Link 10/100Mbps RJ45 to 100Mbps multi-mode SC fiber Converter - (MC100CM)
$46.27
Tax included
Complies with 802.3u 10/100Base-TX, 100Base-FX standards Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 2km
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Complies with 802.3u 10/100Base-TX, 100Base-FX standards Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 2km
Specifications
| Device Type | Fibre media converter - RJ-45 / SC multi-mode |
|---|---|
| Form Factor | External |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Dimensions (WxDxH) | 9.5 cm x 7.3 cm x 2.7 cm |
| Optical Wave Length | 1310 nm |
| Product Description | TP-Link MC100CM - fibre media converter - 10Mb LAN, 100Mb LAN |
| Max Transfer Distance | 2 km |
Dimensions & Weight
| Width | 9.5 cm |
|---|---|
| Depth | 7.3 cm |
| Height | 2.7 cm |
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 40 C |
| Humidity Range Operating | 10 - 90% |
Expansion / Connectivity
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female 1 x Ethernet 100Base-FX - SC multi-mode |
|---|
General
| Device Type | Fibre media converter |
|---|---|
| Form Factor | External |
Miscellaneous
| Compliant Standards | FCC |
|---|
Networking
| Connectivity Technology | Wired |
|---|---|
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 2 km |
| Status Indicators | Collision status, port duplex mode, power, link/activity |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Power
| Power Device | External power adapter |
|---|
