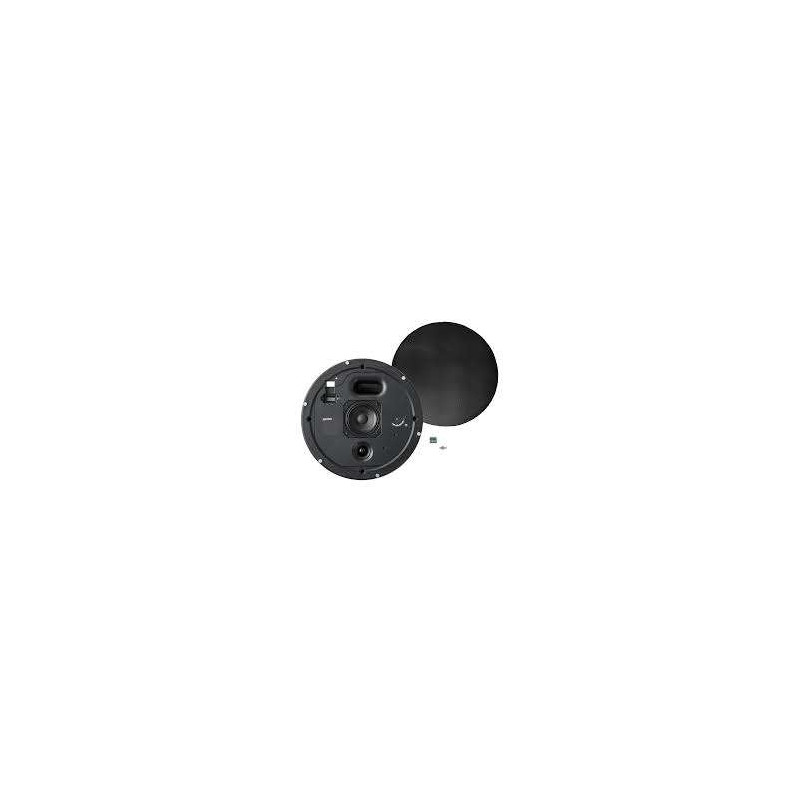

SHURE (MXP-5W) CEILING MOUNT 28W PASSIVE LOUDSPEAKER W/4" WOOFER,1" TWEETER,WHITE
$390.00
Tax included
The MXP-5 is a ceiling-mounted passive loudspeaker for speech and program audio reproduction in meeting rooms. Its shallow depth makes the MXP-5 ideal for retrofit applications with limited mounting space. Available tile bridge and new construction mounting brackets simplify installation. The dual-driver architecture delivers full-fidelity premium audio reproduction. The MXN-AMP provides optimized presets for all MXP loudspeaker models as well as user-configurable EQ for each speaker output. A convenient switch on the MXP-5 front faceplate allows for quick adjustment between 70/100V or 4-ohm operation. A cable pass-through allows for easy installation. 2 years manufacturing warranty AVAILABLE IN WHITE OR BLACK COLOUR Shure audio encryption keeps audio content protected between the...
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The MXP-5 is a ceiling-mounted passive loudspeaker for speech and program audio reproduction in meeting rooms. Its shallow depth makes the MXP-5 ideal for retrofit applications with limited mounting space. Available tile bridge and new construction mounting brackets simplify installation. The dual-driver architecture delivers full-fidelity premium audio reproduction. The MXN-AMP provides optimized presets for all MXP loudspeaker models as well as user-configurable EQ for each speaker output. A convenient switch on the MXP-5 front faceplate allows for quick adjustment between 70/100V or 4-ohm operation. A cable pass-through allows for easy installation. 2 years manufacturing warranty AVAILABLE IN WHITE OR BLACK COLOUR Shure audio encryption keeps audio content protected between the MXN-AMP and other Shure Microflex Ecosystem devices in the room. 2 years manufacturing warranty
Specifications
| Weight | 7.23 lbs (3.28 kg) |
|---|---|
| Dimensions | 13.39 x 13.39 x 4.41 in. (340 x 340 x 111.9 mm) |
| Maximum SPL | at an RMS input level of 23 dBV AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA |
| Sensitivity | at 2.83 V 92 db SPL 1W/m |
| Connector Type | 4-pin connector, 0.2 in. (5.08 mm) pitch |
| Coverage Angle | Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4 95° |
| Transformer Taps | 70V 4Ω, 1.875 W, 3.75 W, 7.5 W, 15 W 100V 4Ω, 3.75 W, 7.5 W, 15 W |
| Nominal Impedance | 4Ω |
| Frequency Response | ~90Hz – 20kHz |
| Maximum Input Power | IEC standard 60268-5 28 W |
| Operating Temperature Range | -7 to 40°C (19.4 to 104°F) |
Product information source: Dicker Data Partner Portal.
