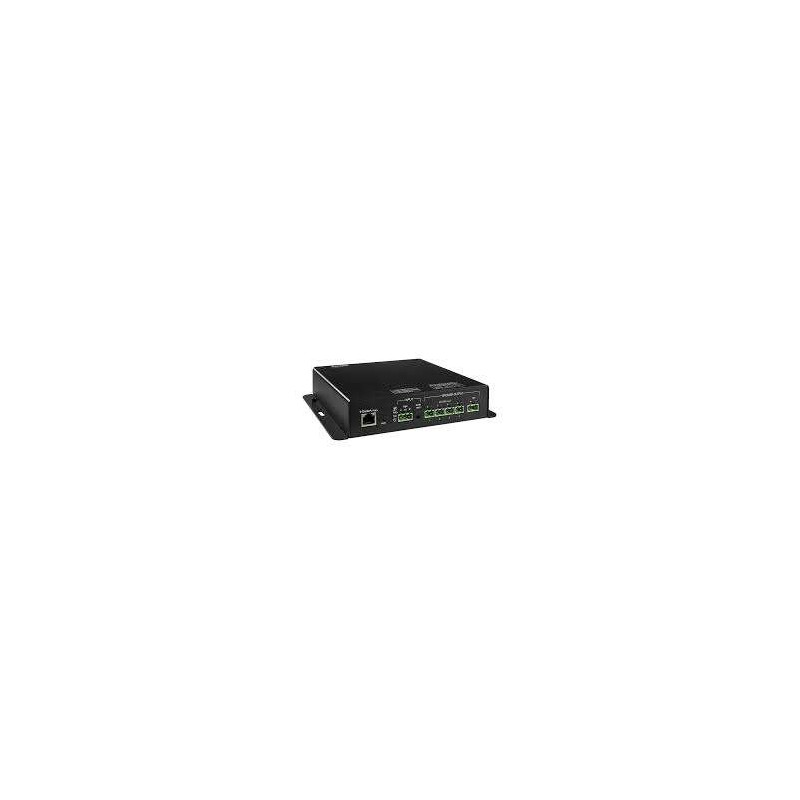

SHURE (MXN-AMP) POE POWERED AMPLIFIER,4 DANTE INPUT AND OUTPUT,14.5W OUTPUT PWR
$860.00
Tax included
MXN-AMP is one part of a complete room system for videoconferencing. It's helpful to think about all the parts of your room system as you get started setting up the MXN-AMP. 2 years manufacturing warranty
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
MXN-AMP is one part of a complete room system for videoconferencing. It's helpful to think about all the parts of your room system as you get started setting up the MXN-AMP. 2 years manufacturing warranty
Specifications
| Weight | 2.43 Ibs (1.1kg) |
|---|---|
| Latency | Analog to analog 2.2 ms typical, 2.5 ms max (add 1 ms for Dante) |
| Bit Depth | 24 |
| Power Input | Power over Ethernet (PoE) or PoE+ over RJ45 (48 V = 25.5 W MAX) |
| Sample Rate | 48 kHz |
| Audio Inputs | 4 Dante in, 1 3.5 mm TRS connector with two audio line level inputs |
| Audio Outputs | 4 Dante output channels, 4 LoZ loudspeaker outputs, 1 70V loudspeaker output |
| Control Input | 1 logic in |
| Amplifier Class | D |
| Power Consumption | PoE 12.95 W max PoE+ 25.5 W max |
| Cable Requirements | Cat 5e or higher (shielded cable recommended) |
| Frequency Response | 20 Hz to 20 kHz |
| Power Requirements | PoE (Class 0) or PoE+ (Class 4) |
| Product Dimensions | 7.95 x 7.01 x 1.57 in. (202 x 178 x 40 mm) L x W x H |
| Block Connector Type | Logic Input 3-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-03P LoZ Output 2-pin connector, 0.2 in. (5.08mm) pitch, Dinkle 2ESDV-02P 70V Output 2-pin connector, 0.295 in. (7.5mm) pitch, Dinkle 7ESDV-02P |
| Signal-To-Noise Ratio | 110 dB max |
| Output Power per Channel | LoZ Mode (4-channel) 3.25 W LoZ Mode (2-channel) 6.5 W 70V Mode 14.5 W |
Product information source: Dicker Data Partner Portal.
