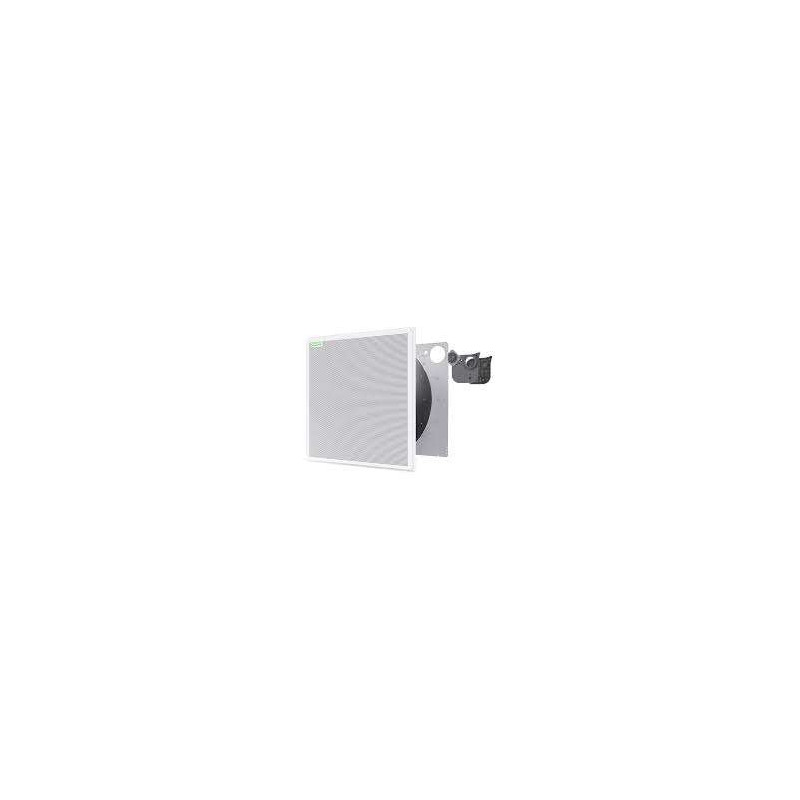

SHURE (MXA902) CEILING ARRAY MICROPHONE+LOUD SPEAKER,WHITE,SQUARE,60CM,SMALL /MEDIUM ROOM
$4,740.00
Tax included
The Microflex®Advance™ MXA902 Ceiling Array Microphone + Loudspeaker delivers premium audio capture and reproduction for all meeting spaces—with virtually no setup required. It combines an advanced array microphone with an integrated loudspeaker for natural sounding speech reproduction. Features Single-Zone Automatic Coverage™ technology to capture audio from a 20 by 20-foot (6 by 6 meter) area and onboard IntelliMix® DSP for echo- and noise-free audio. Paintable white finish; versatile mounting options. 2 years manufacturing warranty
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Microflex®Advance™ MXA902 Ceiling Array Microphone + Loudspeaker delivers premium audio capture and reproduction for all meeting spaces—with virtually no setup required. It combines an advanced array microphone with an integrated loudspeaker for natural sounding speech reproduction. Features Single-Zone Automatic Coverage™ technology to capture audio from a 20 by 20-foot (6 by 6 meter) area and onboard IntelliMix® DSP for echo- and noise-free audio. Paintable white finish; versatile mounting options. 2 years manufacturing warranty
Specifications
| General | Coverage Area Size 20 x 20 ft (6.1 x 6.1 m) |
|---|---|
| Latency | Does not include Dante latency 26.6 ms |
| Self Noise | 18.24 dB SPL-A |
| Loudspeaker | Channel Count 2 input channels |
| Maximum SPL | 95.74 dB SPL |
| Coverage Type | Single-zone automatic |
| Dynamic Range | 77.5 dB |
| Plenum Rating | UL2043 (Suitable for Air Handling Spaces) |
| Connector Type | RJ45 |
| Coverage Angle | Average of 1 octave band centered on 4 kHz 80° |
| Dust Protection | IEC 60529 IP5X Dust Protected |
| Control Software | Designer |
| Power Consumption | 24 W maximum |
| Cable Requirements | Cat5e or higher (shielded cable recommended) |
| Frequency Response | 125 Hz to 20 kHz |
| Power Requirements | Power over Ethernet Plus (PoE+), Class 4 |
| Microphone Elements | 113 MEMS |
| Maximum Output Level | At 1 meter Pink noise 86 dB SPL 1 kHz sine tone 88 dB SPL |
| Digital Signal Processing | Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range) |
| Frequency Range (−10 dB) | 120 Hz to 20 kHz |
| AES67 or Dante Digital Output | Channel Count 1 output channel Sampling Rate 48 kHz Bit Depth 24 |
| Digital Signal Processing on speaker | Delay, compressor, signal generator, equalizer (4-band parametric) |
| Acoustic Echo Cancellation Tail Length | Up to 250 ms |
Product information source: Dicker Data Partner Portal.
