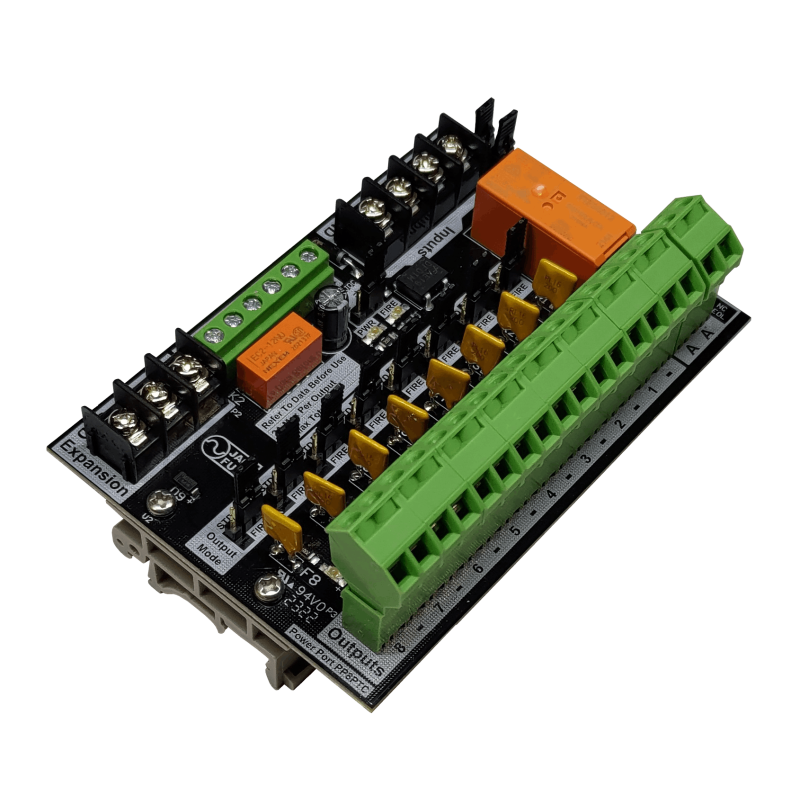

JACKFUSE PWR PORT 8-WAY PDM - FIRE TRIP SELF-HEALING FUSES AND AUX RELAY
$136.00
Tax included
The Power Port 8PTC is our premium power distribution module and is used when system uptime and security is a priority. Self-healing fuses and other new features help increase system reliability and reduce service calls. No more replacing blown fuses! APPLICATIONS: - Fused power distribution for all security devices - Fused over current protection - Automated emergency fire trip door override - Fire trip alarm monitoring - Fire trip interface to automatic doors and other devices FEATURES: - Eight self-healing fused outputs with status LED - Selectable outputs – fire power or standard power - 12VDC - Two dry contact interface outputs - Fire alarm monitoring output - Dry contact, 12 or 24VDC fire trip input (non-polarised) - Unfused auxiliary output for expansion - DIN rail mount
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Power Port 8PTC is our premium power distribution module and is used when system uptime and security is a priority. Self-healing fuses and other new features help increase system reliability and reduce service calls. No more replacing blown fuses! APPLICATIONS: - Fused power distribution for all security devices - Fused over current protection - Automated emergency fire trip door override - Fire trip alarm monitoring - Fire trip interface to automatic doors and other devices FEATURES: - Eight self-healing fused outputs with status LED - Selectable outputs – fire power or standard power - 12VDC - Two dry contact interface outputs - Fire alarm monitoring output - Dry contact, 12 or 24VDC fire trip input (non-polarised) - Unfused auxiliary output for expansion - DIN rail mount
Specifications
| Mounting | DIN rail |
|---|---|
| Fuse type | 2A Self-healing PPTC |
| Dimensions | 110 L X 75 W X 52 H (mm) |
| Fused outputs | 8 |
| Country of origin | Australia |
| Input voltage range | 0-14V DC |
| Fire relay coil voltage | 12-28V DC (or dry contact) |
| Max fire power current | 8A* |
| Max standard power current | 8A |
| Max constant current per output | 2A |
Product information source: Dicker Data Partner Portal.
