JACKFUSE PWR PORT 8-WAY PDM WITH FIRE TRIP GLASS FUSES LIFETIME WARRANTY
$121.00
Tax included

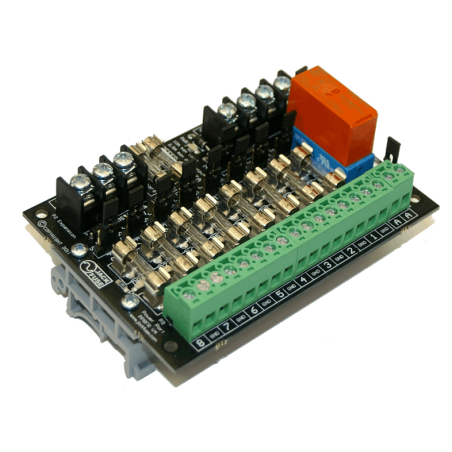

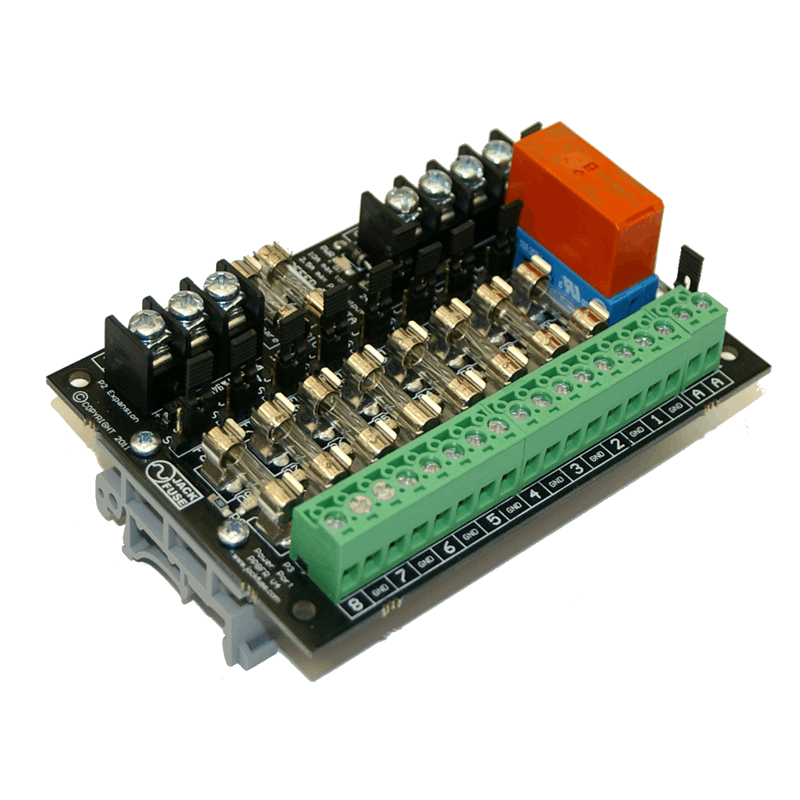

The PP8FR provides essential, cost effective, power distribution to electronic access control and security devices. Our flagship module is used in thousands of buildings nationwide. The PP8FR reduces system installation time, simplifies wiring and helps ensure safety compliance. APPLICATIONS: - Fused power distribution for all security devices - Automated emergency fire trip door override - Fire trip alarm monitoring FEATURES: - Eight individually fused outputs with status LED - Selectable outputs – fire power or standard power - On board spare fuse holders - 12 or 24VDC - Fire alarm monitoring output - Dry contact or voltage fire trip input - Unfused auxiliary output for expansion - DIN rail mount
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The PP8FR provides essential, cost effective, power distribution to electronic access control and security devices. Our flagship module is used in thousands of buildings nationwide. The PP8FR reduces system installation time, simplifies wiring and helps ensure safety compliance. APPLICATIONS: - Fused power distribution for all security devices - Automated emergency fire trip door override - Fire trip alarm monitoring FEATURES: - Eight individually fused outputs with status LED - Selectable outputs – fire power or standard power - On board spare fuse holders - 12 or 24VDC - Fire alarm monitoring output - Dry contact or voltage fire trip input - Unfused auxiliary output for expansion - DIN rail mount
Specifications
| Mounting | DIN rail |
|---|---|
| Fuse type | 1A Normal Blow M205 |
| Dimensions | 110 L X 75 W X 50 H (mm) |
| Fused outputs | 8 |
| Country of origin | Australia |
| Input voltage range | 0-26V DC |
| Max fire power current | 8A* |
| Fire relay coil voltage | 12-26V DC (or dry contact) |
| Max standard power current | 8A |
| On board spare fuse holders | 2 |
| Max constant current per output | 2A (with 2A replacement fuse) |
Product information source: Dicker Data Partner Portal.
