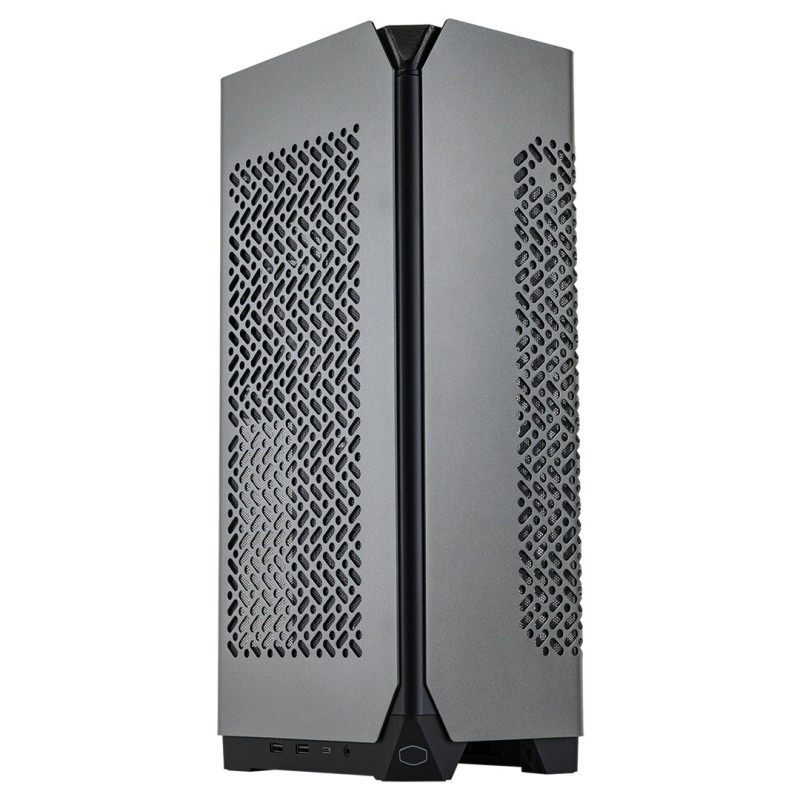

NCORE 100 MAX Cooler Master’s NCORE 100 MAX is the ultimate solution for going big on performance in the minimal amount of desktop space Mini-ITX Aluminum Case Built-in Extra Thick 120mm All-in-One Watercooler and V850 SFX Gold PSU Expandable Body from 155 to 172mm, supporting RTX4090 VGA card
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
NCORE 100 MAX Cooler Master’s NCORE 100 MAX is the ultimate solution for going big on performance in the minimal amount of desktop space Mini-ITX Aluminum Case Built-in Extra Thick 120mm All-in-One Watercooler and V850 SFX Gold PSU Expandable Body from 155 to 172mm, supporting RTX4090 VGA card
| Size | Mini ITX |
|---|---|
| Volume | 17.54L (Expansion mode) |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Dust Filters | Side panels |
| Exterior Color | Dark grey |
| Expansion Slots | 3x PCIe Slot Mounting |
| Clearances - RAM | 48mm |
| Drive Bays - 2 5" | SSD1 |
| Motherboard Support | ITX |
| Materials - Exterior | Steel, Plastic, Aluminum |
| Power Supply Support | SFX |
| Dimensions (L x W x H) | Expansion mode: 172mm x 212mm x 481mm (Incl. Protrusions) |
| Materials - Side Panel | Aluminum |
| Clearances - CPU Cooler | 48mm |
| Clearances - Power Supply | 100mm |
| Pre-Installed Accessories | 1x 240mm PCIe 4.0 x16 |
| Clearances - Graphics Card | 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick) |
| Pre-installed Fan(s) - Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Cable Routing - Behind MB Tray | 11mm |
| Pre-installed Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-Installed CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
Product information source: Dicker Data Partner Portal.
