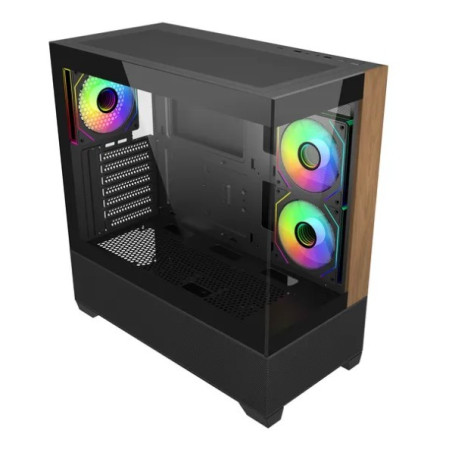

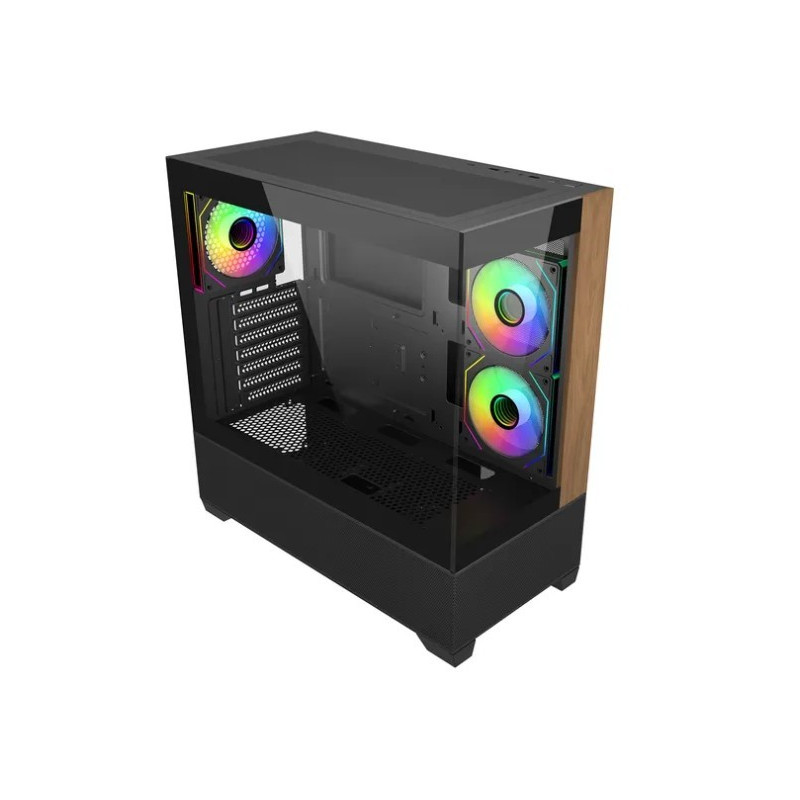

COOLER MASTER ATX CASE, WOOD FRONT PANEL, 270 GLASS, ARGB FANS(3), 2YR
$62.00
Tax included
Elite 690 Wood The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups—perfect for performance-driven or style-focused builds.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Elite 690 Wood The Elite 690 features dual tempered glass panels to showcase your build, while a wood-textured front accent and mesh intake blend warmth with airflow efficiency. With top and bottom ventilation for vertical cooling, it supports versatile fan and radiator setups—perfect for performance-driven or style-focused builds.
Specifications
| Size | Mid Tower |
|---|---|
| Series | Elite Series |
| Volume | 42.93 L (Liters Incl. Protrusions) |
| Warranty | 2 years |
| 2 5" Drive Bays | 1 (Max. 2) |
| 3 5" Drive Bays | 1 (Max. 2) |
| Clearance - PSU | 250mm |
| Expansion Slots | 7 |
| 5 25" Drive Bays | 0 |
| Fan Support - Top | 2x 140mm / 3x 120mm |
| Fan Support - Rear | 1x 120mm |
| Motherboard Support | ITX / Micro-ATX / ATX |
| Fan Support - Bottom | 3x 120mm |
| Power Supply Support | ATX |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 |
| Clearance - CPU Cooler | 170mm |
| Dimensions (L x W x H) | 434 x 218 x 454 mm (Incl. Protrusions), 430 x 218 x 435 mm (Excl. Protrusions) |
| Radiator Support - Top | 120 / 240 / 360 (Max height 45mm) |
| Materials - Front Panel | Tempered Glass + Wood |
| Fan Support - Side Mount | 2x 120mm |
| Clearance - Graphics Card | 425mm |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM |
| Radiator Support - Bottom | 120 / 240 / 360mm |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Material - Side Panel (Left) | Tempered Glass |
| Material - Side Panel (Right) | Steel |
| Radiator Support - Side Mount | 120 / 240mm |
| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan |
Product information source: Dicker Data Partner Portal.
