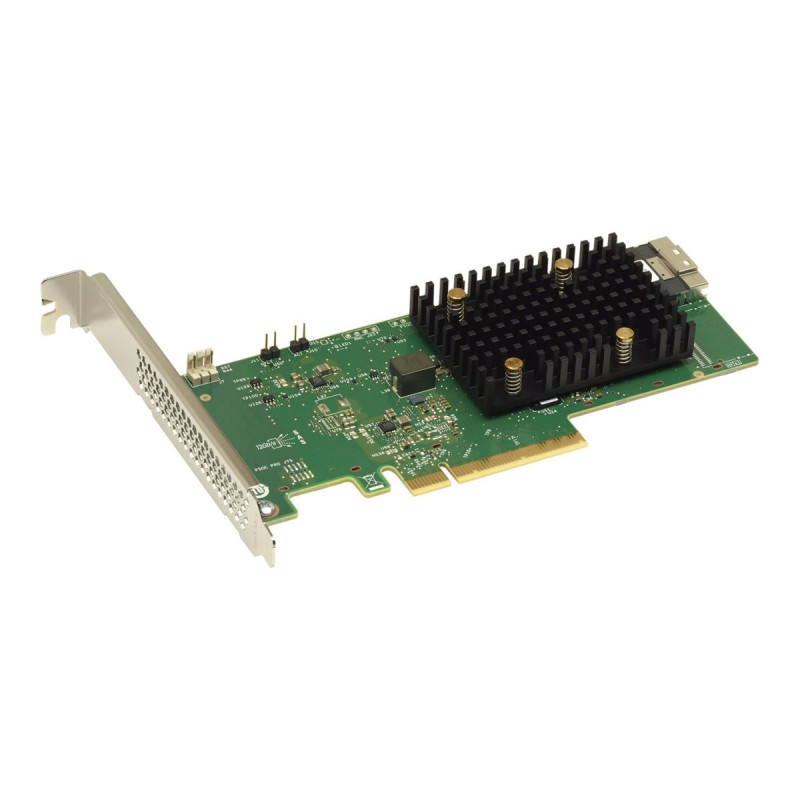

LENOVO RAID 545-8I PCIE 12GB ADAPTER (NO RAID 5, 6)
$704.00
Tax included
Lenovo ThinkSystem 545-8i - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 4.0 x8
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Lenovo ThinkSystem 545-8i - Storage controller (RAID) - 8 Channel - SATA / SAS 12Gb/s - low profile - RAID 0, 1, 10, JBOD - PCIe 4.0 x8
Specifications
| Bus Type | PCIe 4.0 x8 |
|---|---|
| Interface | SATA / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 10, JBOD |
| Channel Qty | 8 |
| Device Type | Storage controller (RAID) - plug-in card - low profile |
| Supported Devices | Disk array (RAID), solid state drive |
| Data Transfer Rate | 12 Gbit/s |
| Product Description | Lenovo ThinkSystem 545-8i - storage controller (RAID) - SATA / SAS 12Gb/s - PCIe 4.0 x8 |
| Manufacturer Warranty | 1-year warranty |
| Max Storage Devices Qty | 8 |
Environmental Parameters
| Min Operating Temperature | 10 C |
|---|---|
| Max Operating Temperature | 55 C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
Expansion / Connectivity
| Interfaces | 1 x SAS 12Gb/s - Slim SAS (SFF-8654) |
|---|
General
| Device Type | Storage controller (RAID) - plug-in card - low profile |
|---|---|
| Host Bus | PCIe 4.0 x8 |
Manufacturer Warranty
| Service & Support | Limited warranty - 1 year |
|---|
Miscellaneous
| Features | FastPath, SafeStore, Self-Encrypting Drive (SED) support, Online Capacity Expansion (OCE), Online RAID Level Migration (RLM) |
|---|---|
| Compliant Standards | WEEE, IEC/EN/UL 60950, RoHS, EN55022, EN55024, RRA 2013-24 & 25, AS/NZS CISPR 22, VCCI V-3, CNS 13438, ICES-003 Class B, FCC CFR 47 Part 15 Class B |
Storage Controller
| Interface | SATA / SAS 12Gb/s |
|---|---|
| Data Transfer Rate | 12 Gbit/s |
| Supported Devices | Disk array (RAID), solid state drive |
| Channel Qty | 8 |
| Max Storage Devices Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 10, JBOD |
| Processor | Broadcom SAS 3808 |
Resources
- e0c616a5 fc89 4177 a851 75fc7041b72c.xml
- fc345f55 ce1a 49b0 8413 048f4b0a3d36.xml
- 3fa19e4f 4e28 46ab a60c 43b08091e745.xml
Product information source: Dicker Data Partner Portal.
