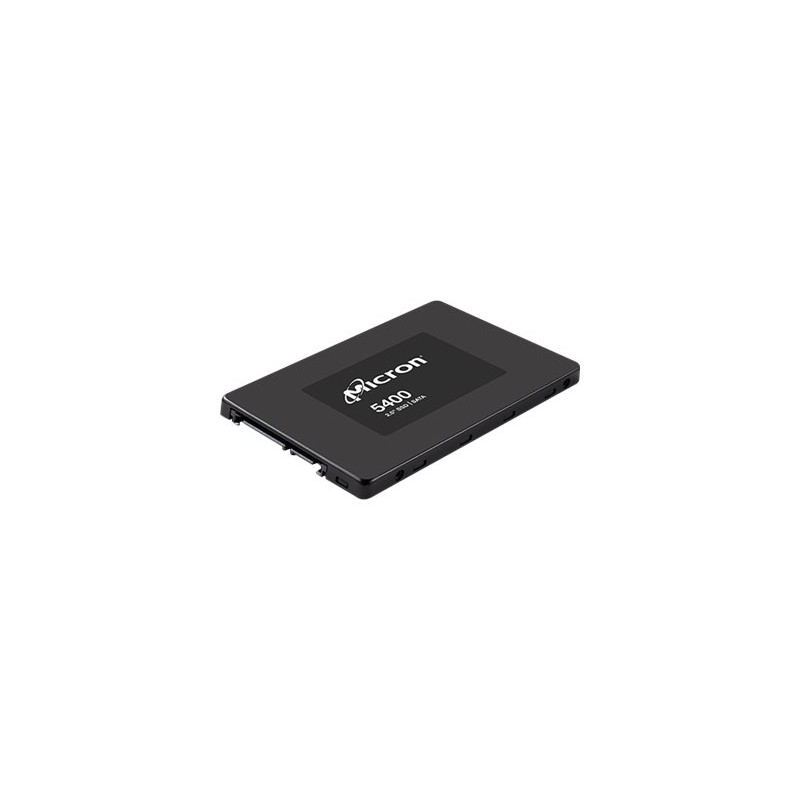

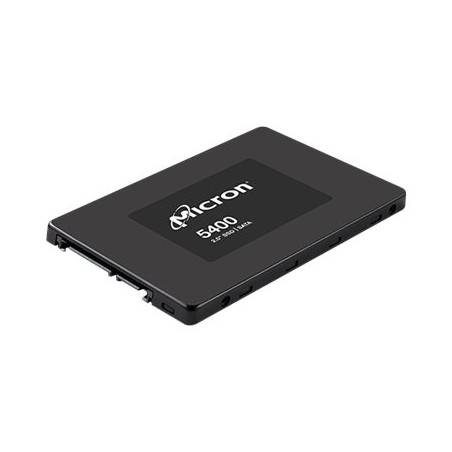

LENOVO 2.5" 5400 MAX 960GB MIXED USE SATA 6GB HS SSD
$4,029.00
Tax included
Micron 5400 MAX - SSD - Mixed Use - encrypted - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - Self-Encrypting Drive (SED), TCG Enterprise SSC - for ThinkSystem SR250 V2 7D7Q (2.5"), 7D7R (2.5"); ST250 V2 7D8F (2.5"), 7D8G (2.5")
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Micron 5400 MAX - SSD - Mixed Use - encrypted - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - Self-Encrypting Drive (SED), TCG Enterprise SSC - for ThinkSystem SR250 V2 7D7Q (2.5"), 7D7R (2.5"); ST250 V2 7D8F (2.5"), 7D8G (2.5")
Specifications
| Type | Solid state drive - hot-swap |
|---|---|
| Weight | 70 g |
| Capacity | 960 GB |
| Features | End-to-end data path protection, advanced power loss data management, Exclusive-OR (XOR), Extended Error Correction Code (ECC), Sanitise Cryptographic Erase support, 176-layer 3D TLC NAND technology, S.M.A.R.T. |
| Interface | SATA 6Gb/s |
| Drive Class | Mixed Use |
| Form Factor | 2.5" |
| Designed For | ThinkSystem SR250 V2 7D7Q (2.5"), 7D7R (2.5"); ST250 V2 7D8F (2.5"), 7D8G (2.5") |
| Data Transfer Rate | 600 MBps |
| Dimensions (WxDxH) | 70 mm x 100 mm x 7 mm |
| Hardware Encryption | Yes |
| Product Description | Micron 5400 MAX - SSD - Mixed Use - 960 GB - SATA 6Gb/s |
| Encryption Algorithm | 256-bit AES |
| Manufacturer Warranty | 1-year warranty |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
Compatibility Information
| Designed For | Lenovo ThinkSystem SR250 V2 7D7Q (2.5"), 7D7R (2.5") Lenovo ThinkSystem ST250 V2 7D8F (2.5"), 7D8G (2.5") |
|---|
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 70 C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 gRMS @ 5-800 Hz |
Expansion & Connectivity
| Interfaces | 1 x SATA 6 Gb/s |
|---|---|
| Compatible Bay | 2.5" |
General
| Device Type | Solid state drive - hot-swap |
|---|---|
| Capacity | 960 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | End-to-end data path protection, advanced power loss data management, Exclusive-OR (XOR), Extended Error Correction Code (ECC), Sanitise Cryptographic Erase support, 176-layer 3D TLC NAND technology, S.M.A.R.T. |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
Manufacturer Warranty
| Service & Support | Limited warranty - replacement - 1 year |
|---|
Miscellaneous
| Compliant Standards | BSMI CNS 13438 Class B, ICES-003 Class B, EN55024 Class B, RoHS, UL 60950-1 Second Edition, BSMI CNS 13438, RCM, IEC 60950-1:2005 Second Edition, IEC60950/EN60950, FCC CFR47 Part 15 B Class B, EN 55032 Class B, WEEE 2012/19/EC, KCC KN32 Class B, KCC KN35 Class B, Micron Green Standard, BSMI CNS 15663, VCCI 2015.04 Class B, EN 60950-1:2006+A1:2010+A11:2009 + A12:2011 + A2:2013, AS/NZS CISPR32 Class B, SI 2016/1091 Class B, SI 2012/3032 RoHS, EN55032 Class B |
|---|
Performance
| Drive Writes Per Day (DWPD) | 5 |
|---|---|
| SSD Endurance | 8760 TB |
| Drive Class | Mixed Use |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 540 MBps (read) / 520 MBps (write) |
| 4KB Random Read | 95000 IOPS |
| 4KB Random Write | 65000 IOPS |
| Average Latency | 35 s |
Power
| Power Consumption | 2.8 Watt (read) 3.1 Watt (write) |
|---|
Reliability
| MTBF | 3,000,000 hours |
|---|---|
| Non-Recoverable Errors | 1 per 10^17 |
Resources
- b007b408 b39c 42e1 bc35 b0b6c8a1dc30.xml
- 525ccb75 d3b1 41e8 a9d8 3727794559b9.xml
- 1468de4e 4ae6 4e4b 8768 16938116ad73.xml
Product information source: Dicker Data Partner Portal.
Comments (0)
No customer reviews for the moment.
Micron 5400 MAX - SSD - Mixed Use - encrypted - 960 GB - hot-swap - 2.5" - SATA 6Gb/s - 256-bit AES - Self-Encrypting Drive (SED), TCG Enterprise SSC - for ThinkSystem SR250 V2 7D7Q (2.5"), 7D7R (2.5"); ST250 V2 7D8F (2.5"), 7D8G (2.5")
