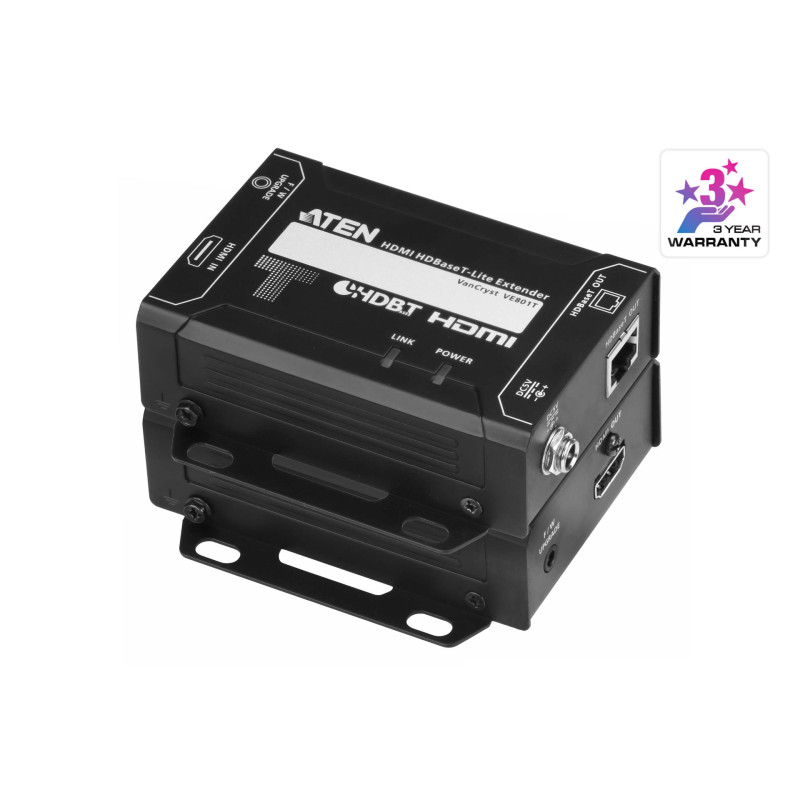

ATEN VE801 HDMI HDBASET-LITE EXTENDER
$297.26
Tax included
The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Colour and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centres or any installation that requires superior HDMI video quality to be extended for great distances. Features - Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable - HDMI (3D, Dee...
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The VE801 HDMI HDBaseT-Lite Extender extends an HDMI signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Colour and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centres or any installation that requires superior HDMI video quality to be extended for great distances. Features - Extends HDMI signals over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable - HDMI (3D, Deep colour, 4K); HDCP 2.2 compliant - Superior video quality – up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable) - HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology - Plug-and-play - Rack-mountable
Specifications
| - Power | 1 x DC Jack (Black) with locking |
|---|---|
| - Weight | 0.25 kg (both T and R units individually), 0.5 kg together |
| - Housing | Metal |
| - Compliance | HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC) |
| - Unit to Unit | 1 x RJ-45 Female |
| - Max Data Rate | 10.2Gbps (3.4Gbps per lane) |
| - Max Pixel Clock | 340 MHz |
| Power Consumption | DC5V:1.86W:9BTU (Transceiver) DC5V:4.24W:20BTU (Receiver) |
| - Output (Receiver) | 1 x HDMI Type A Female (Black) |
| - Input (Transceiver) | 1 x HDMI Type A Female (Black) |
| - Storage Temperature | -20 - 60°C |
| - Impedance (Receiver) | 100 Ohm |
| - Interfaces (Receiver) | 1 x HDMI Type A Female (Black) |
| - Operating Temperature | 0-50°C |
| - Max Distance Receiver) | 3m |
| - Impedance (Transceiver) | 100 Ohm |
| - Interfaces (Transceiver) | 1 x HDMI Type A Female (Black) |
| - Max Distance (Transceiver) | 3m |
| - Max Resolutions / Distance | Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6) *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| - Dimensions (L x W x H) with bracket | 9.86 x 8.70 x 3.00 cm |
| - Dimensions (L x W x H) without bracket | 9.42 x 6.60 x 2.90 cm |
Product information source: Dicker Data Partner Portal.
