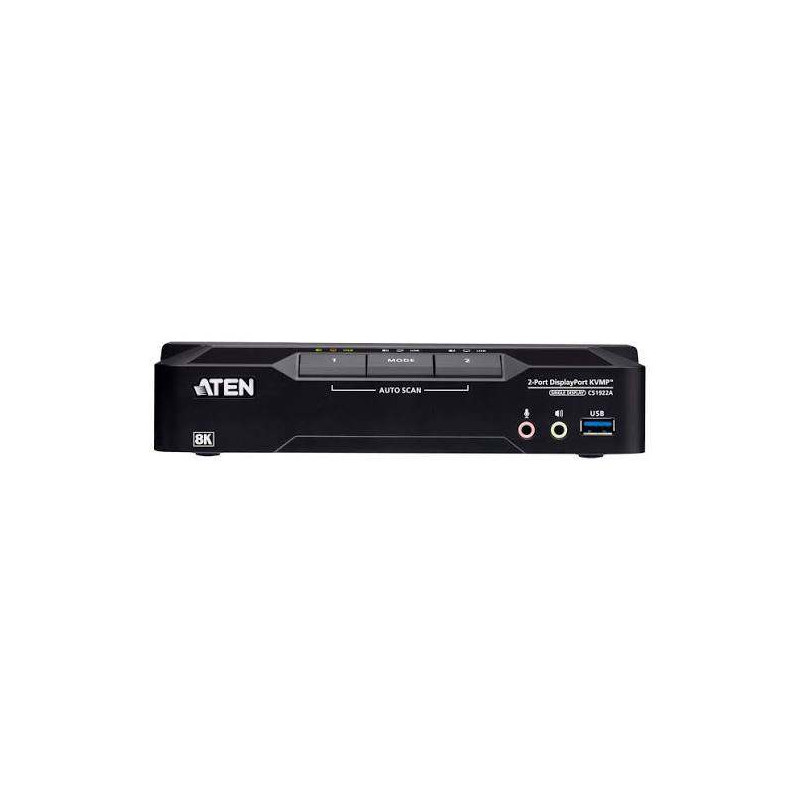

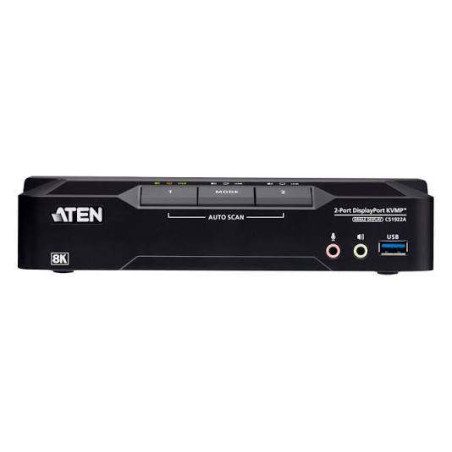

ATEN 2-PORT USB 3.0 8K DISPLAYPORT KVMP SWITCH
$370.11
Tax included
Built on ATEN’s enterprise-grade design heritage, the CS1922A belongs to ATEN’s first KVM switch series with 8K support, delivering professional-grade performance and reliable multi-computer control from a single console. Ultra-High Resolution for Versatile Professional Applications The CS1922A delivers up to 8K@60 Hz and 4K@240 Hz, providing precise, clear visuals for demanding tasks. It enables users to control multiple computers from a single console, supporting efficient multitasking and high-resolution workflows while keeping the workspace clean and organized. Multi-Display Expansion and Broad Display Compatibility Daisy-chaining further allows multi-display setups using a single keyboard and mouse, streamlining multi-screen workflows and enhancing productivity for complex tasks....
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Built on ATEN’s enterprise-grade design heritage, the CS1922A belongs to ATEN’s first KVM switch series with 8K support, delivering professional-grade performance and reliable multi-computer control from a single console. Ultra-High Resolution for Versatile Professional Applications The CS1922A delivers up to 8K@60 Hz and 4K@240 Hz, providing precise, clear visuals for demanding tasks. It enables users to control multiple computers from a single console, supporting efficient multitasking and high-resolution workflows while keeping the workspace clean and organized. Multi-Display Expansion and Broad Display Compatibility Daisy-chaining further allows multi-display setups using a single keyboard and mouse, streamlining multi-screen workflows and enhancing productivity for complex tasks. With DisplayPort Dual-Mode (DP++) support, the switch can connect to HDMI or DVI displays via compatible adapters, expanding compatibility with a wide range of monitors. Flexible and Intuitive Switching for Efficient Workflows Multiple switching methods, including front panel pushbuttons, a remote port selector, hotkeys, mouse switching, and RS-232 commands, allow users to control connected computers seamlessly. This flexibility enables fast, efficient workflow management tailored to individual preferences, ensuring smooth transitions between multiple systems. Efficient Peripheral Sharing and Easy Installation The integrated USB 3.1 Gen 1 hub provides 5 Gbps data transfer speeds, enabling fast sharing of peripherals between connected computers. All required DisplayPort and USB cables, along with a power adapter, are included for quick, plug-and-play setup, helping users maintain a clean, organized, and fully functional workspace from the start. Key Features - Up to 7680 × 4320 @ 60 Hz, 5120 × 2880 @ 60 Hz and 4096 × 2160 @ 240 Hz - Supports daisy-chaining for dual-display setups by connecting two CS1922A units, enabling dual-screen control through a single connection - All DisplayPort/USB cables and power adapter included for hassle-free installation - Computer selection via pushbuttons, remote port selector, hotkeys, mouse, and RS-232 commands
Specifications
| - KVM | 3 (Orange) |
|---|---|
| Video | Up to 7680 x 4320 @ 60Hz, 5120 x 2880 @ 60Hz, 4096 x 2160 @ 240Hz |
| - Audio | 3 (Green) |
| - Power | 1 x DC Jack |
| - Weight | 0.47kg |
| - Housing | Metal |
| - USB Hub | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear) |
| - Humidity | 0-80% RH, Non-condensing |
| - Selected | 3 x Pushbutton |
| - USB Link | 3 (Green) |
| Scan Interval | 1-99 seconds (default: 5 seconds) |
| Port Selection | Hotkey, Pushbutton, Mouse Wheel, RS-232 Commands, Remote Port Selector |
| - Console Ports | 2 x USB Type A Female 1 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear) 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
| Power Consumption | DC12V:2.26W:69BTU/h |
| - Keyboard / Mouse | USB |
| - Daisy Chain Ports | 1 x RJ-45 Female |
| - Station Selection | 1 x Slide Switch |
| Computer Connections | 2 |
| - Storage Temperature | -20–60°C |
| - KVM (Computer) Ports | 2 x USB3.1 Gen1 Type B Female (Blue) 2 x DisplayPort Female (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink) |
| - Operating Temperature | 0–50°C |
| - Dimensions (L x W x H) | 20.00 x 7.30 x 4.30 cm |
Product information source: Dicker Data Partner Portal.
