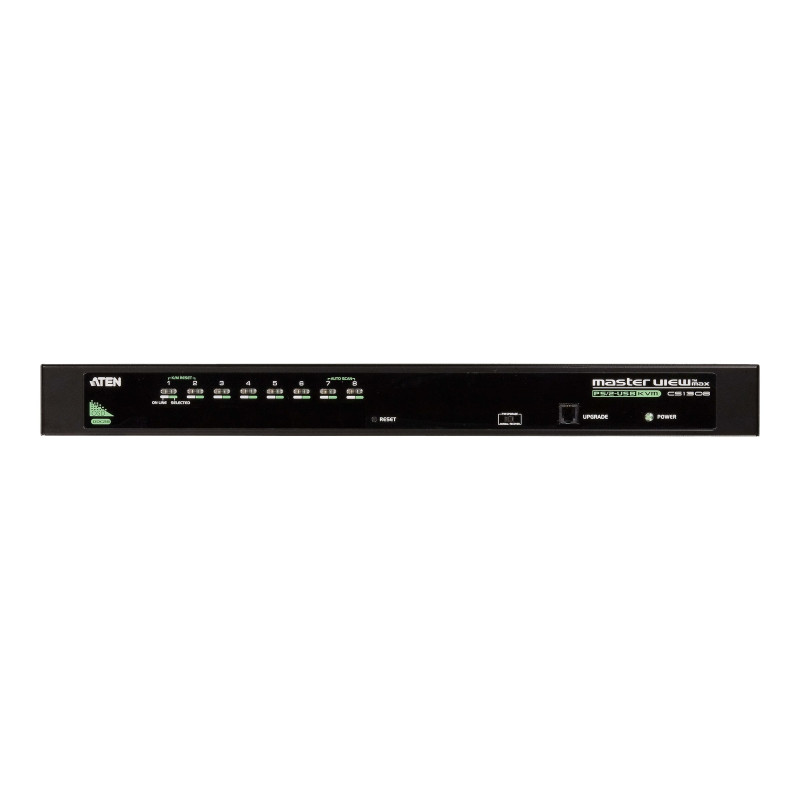

ATEN 8 PORT VGA KVMP SWITCH
$299.36
Tax included
The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers. Key Features - One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers - Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. - Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu - Video DynaSync™ - Exclusive ATEN technology eliminates boot-up displ...
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The CS1308 KVM switch allows access and control up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single KVM console. The switch supports both USB and PS/2 connections for the console and computers. Key Features - One USB-PS/2 console controls 8 computers; Cascade up to 2 levels - control up to 64 computers - Broadcast mode - operations simultaneously performed on all selected computers, software installation and upgrading, system wide shutdown, etc. - Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu - Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Specifications
| Video | 2048 x 1536; DDC2B |
|---|---|
| - Ports | 8 x Pushbutton |
| - Power | 1 x DC Jack |
| - Direct | 8 |
| - Online | 8 (Orange) |
| - Weight | 1.89kg |
| - Housing | Metal |
| - Maximum | 64 (via Cascade) |
| - Selected | 8 (Green) |
| - KVM Ports | 8 x SPHD-18 Female (Yellow) |
| - Power (LED) | 1 (Dark Green) |
| Scan Interval | 1 – 255 Seconds (Default: 5 secs) |
| Port Selection | OSD, Hotkey, Pushbutton |
| - Console Ports | 1 x SPHD-18 Male (Yellow) |
| Power Consumption | DC 5.3V : 2.34W : 19BTU/h |
| - Firmware Upgrade | 1 x RJ-11 Female (Black) |
| - Keyboard / Mouse | PS/2, USB |
| - Storage Temperature | -20 - 60C |
| - Operating Temperature | 0 - 50C |
| - Dimensions (L x W x H) | 43.72 x 16.13 x 4.40 cm |
| - Firmware Upgrade (Switch) | 1 x Slide |
Dimensions & Weight
| Width | 43.72 cm |
|---|---|
| Depth | 16.13 cm |
| Height | 4.4 cm |
| Weight | 1.89 kg |
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 50 C |
| Humidity Range Operating | 0 - 80% (non-condensing) |
| Min Storage Temperature | -20 C |
| Max Storage Temperature | 60 C |
Expansion / Connectivity
| Interfaces | 8 x KVM SPHD-15 1 x management RJ-11 1 x KVM SPHD-18 |
|---|
General
| Device Type | KVM switch - 8 ports - cascadable |
|---|---|
| Enclosure Type | Desktop 1U |
| Subtype | KVM |
| Ports | 8 x KVM port(s) |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | PS/2, USB |
| Max Cascading Depth | 2 |
| Max Resolution | 2048 x 1536 |
| Features | On-Screen Display, firmware upgradable, Video DynaSync, Auto Scan Mode, metal housing |
| Status Indicators | Port status, power |
Miscellaneous
| Cables Included | 1 x remote control cable 1 x keyboard / mouse / video cable |
|---|---|
| Rack Mounting Kit | Included |
| Compliant Standards | DDC-2B |
Power
| Power Device | External power adapter |
|---|---|
| Power Consumption Operational | 5 Watt |
Software / System Requirements
| OS Required | SunSoft Solaris, Apple MacOS, Linux, Microsoft Windows |
|---|
