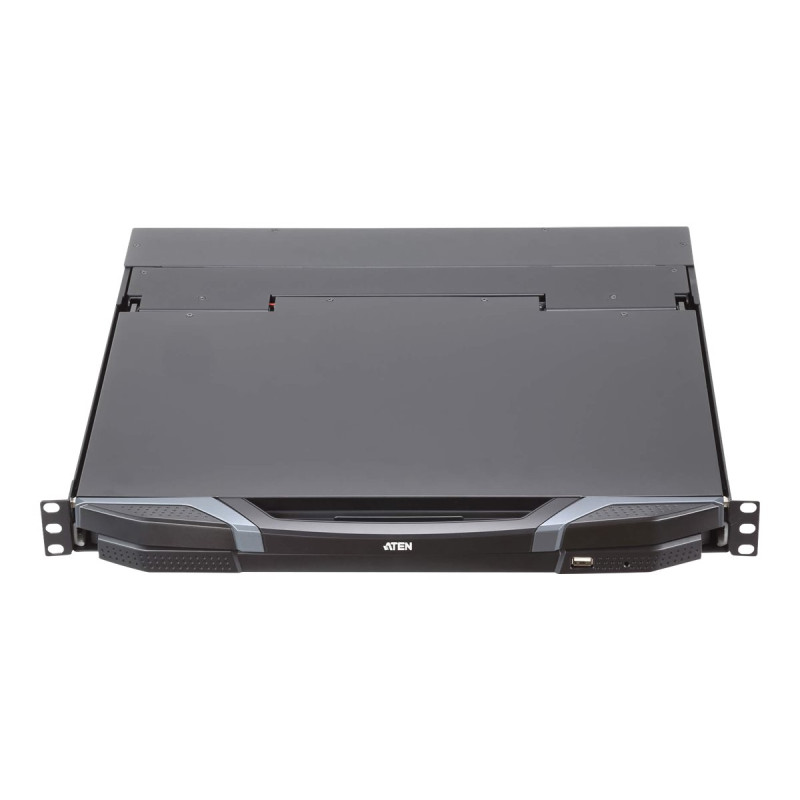

ATEN 18.5" SHORT DEPTH USB HDMI DVI VGA LCD CONSOLE

$2,910.53
Tax included

ATEN CL3800NW - KVM console - USB - 18.5" - rack-mountable - 1920 x 1080 Full HD (1080p) @ 60 Hz - 350 cd/m? - 1000:1 - 20 ms - HDMI, DVI-D, VGA - 1U

Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

ATEN CL3800NW - KVM console - USB - 18.5" - rack-mountable - 1920 x 1080 Full HD (1080p) @ 60 Hz - 350 cd/m? - 1000:1 - 20 ms - HDMI, DVI-D, VGA - 1U

Specifications

Weight9.61 kg
VoltageAC 120/230 V (50 - 60 Hz)
FeaturesTouchpad, 105 keys keyboard
Brightness350 cd/m?
KVM SwitchUSB
Device TypeKVM console - 18.5"
Pixel Pitch0.213 mm
Aspect Ratio16:9
Response Time20 ms
Colour Support16.7 million colours
Contrast Ratio1000:1
Input ConnectorsHDMI, DVI-D, VGA
Native ResolutionFull HD (1080p) 1920 x 1080 at 60 Hz
Dimensions (WxDxH)51.42 cm x 48.06 cm x 4.28 cm
Compliant StandardsDDC-2B
Height (Rack Units)1U
Product DescriptionATEN CL3800NW - KVM console - Full HD (1080p) - 18.5"

Connectivity

Interfaces3 x USB 2 x DVI-D 2 x HDMI 2 x VGA 3 x audio line-in/out USB (Type B)

Dimensions & Weight

Dimensions & Weight DetailsBody - width: 46.74 cm - depth: 44.92 cm - height: 4.28 cm

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature40 C
Humidity Range Operating0 - 80% (non-condensing)

General

Display TypeKVM console / TFT active matrix
Diagonal Size18.5"
Aspect Ratio16:9
Native ResolutionFull HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch0.213 mm
Brightness350 cd/m
Contrast Ratio1000:1
Colour Support16.7 million colours
Response Time20 ms
Horizontal Viewing Angle178
Vertical Viewing Angle178
Backlight TechnologyLED backlight
Dimensions (WxDxH)51.42 cm x 48.06 cm x 4.28 cm
Height (Rack Units)1U
Weight9.61 kg

Input

TypeTouchpad, 105 keys keyboard

KVM

Keyboard / Mouse InterfaceUSB
Max Resolution1920 x 1200 @ 60 Hz

Miscellaneous

FeaturesLockable, dual rails, firmware upgradable, metal housing
Cables Included1 x keyboard / mouse / video cable - 1.8 m
Rack Mounting KitIncluded
Compliant StandardsDDC-2B

Power

Input VoltageAC 120/230 V (50 - 60 Hz)
Power Consumption (Typical)26.8 Watt

Resources

Product information source: Dicker Data Partner Portal.
