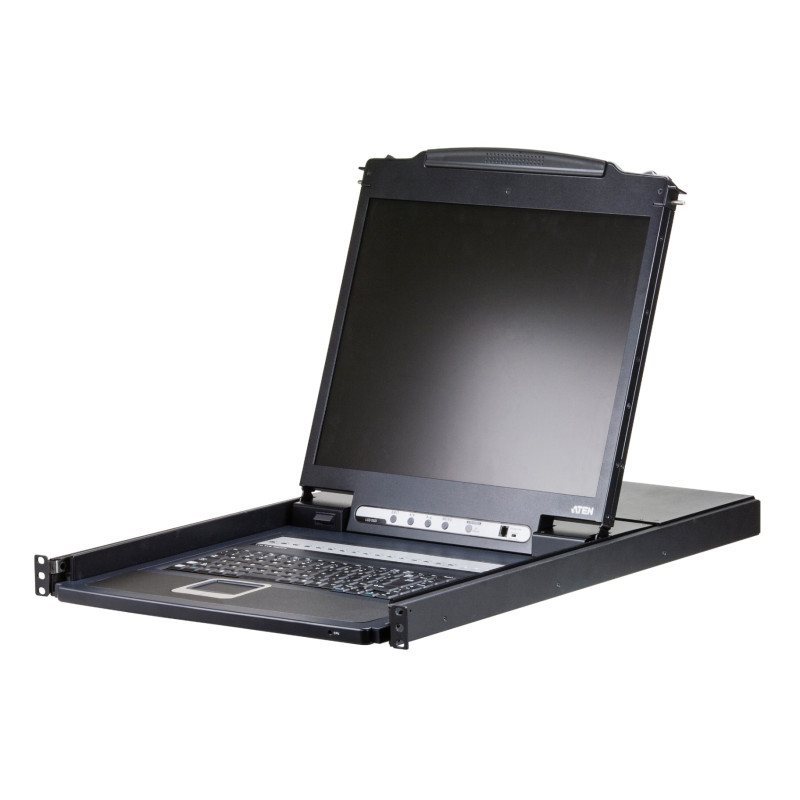

ATEN 19" 16 PORT LCD KVM
$1,573.20
Tax included
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing. The CL1316 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. Setup is fast and easy; plugging cables into their appropriat...
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
With limited server room space and rising maintenance costs, network administrators are now more than ever looking for solutions that reduce both costs and space requirements. ATEN LCD KVM Switches offer a space saving, streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack-mountable sliding housing. The CL1316 LCD KVM Switch features an integrated 19" LED-backlit LCD panel allowing access and control with up to 16 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the computers. The CL1316 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. Features - Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions - Integrated KVM console with 19" LED-backlit LCD panel - A single console controls up to 256 computers by cascade to 2 levels and connect up to 16 switches. - USB or PS/2 keyboard and mouse emulation – computers boot even when the console focus is elsewhere
Specifications
| - Lock | 1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green) |
|---|---|
| - Reset | 1 x Semi-recessed Pushbutton |
| - Direct | 16 |
| - Online | 16 (Orange) |
| - Weight | 12.77kg |
| - Housing | Metal + Plastic |
| - Maximum | 256 (via Cascade) |
| - Humidity | 0 - 80% RH, Non-condensing |
| - Selected | 16 (Green) |
| - KVM Ports | 16 x SPHD Female (Yellow) |
| - LCD Power | 1 x LED Pushbutton |
| - Luminance | 250 cd/m² |
| - Rail Type | Single Rail |
| - LCD Module | 19" TFT-LCD |
| - Resolution | 1280 × 1024 @ 75 Hz |
| - LCD Control | 4 x Pushbutton |
| - Pixel Pitch | 0.294 mm x 0.294 mm |
| Scan Interval | 1 - 255 seconds |
| - Power (LEDs) | 1 (Dark Green) 1 (Orange) |
| Port Selection | OSD, Hotkey, Pushbutton |
| - Response Time | 5 ms |
| - Viewing Angle | 170° (H), 160° (V) |
| - Contrast Ratio | 1000:1 |
| - Keyboard/Mouse | PS/2, USB |
| - Port Selection | 16 x Pushbutton |
| - Support Colour | 16.77M colors |
| Power Consumption | AC110V:25.9W:121BTU/h AC220V:26.1W:122BTU/h |
| - Power (Switches) | 1 x Rocker Switch |
| - Power (Connectors) | 1 x IEC 60320/C14 |
| - Storage Temperature | -20-60°C |
| - Operating Temperature | 0-50°C |
| - Dimensions (L x W x H) | 48.30 x 68.92 x 4.40 cm |
| - Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
| - LED Illumination Light | 1 x LED Illumination Light |
| Maximum Input Power Rating | 100-240 V AC; 50-60 Hz; 1A |
| - Firmware Upgrade (Switches) | 1 x Slide Switch |
| - Firmware Upgrade (Connectors) | 1 x RJ-11 Female |
Product information source: Dicker Data Partner Portal.
