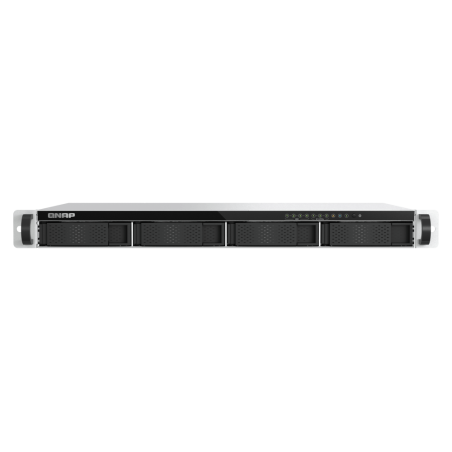

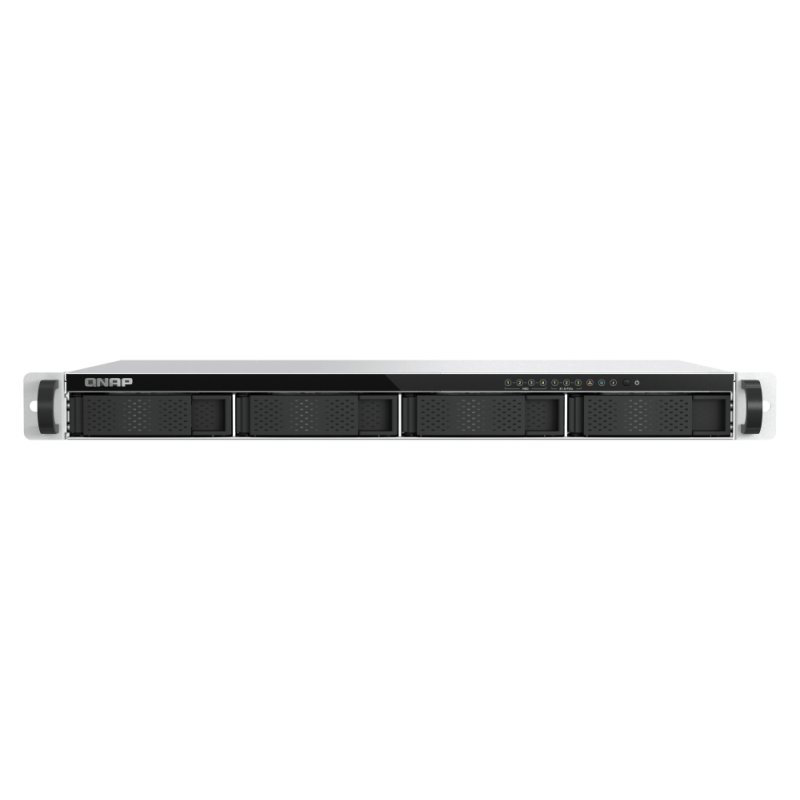

QNAP 4-BAY NAS 3.5"(0/4), ATOM X7405C-3.4GHz, 8GB, 2.5GbE(2), M.2/E1.S(3), 1U RACK, 3YR WT
$1,500.00
Tax included
The 1U short-depth rackmount TS-G765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The 1U short-depth rackmount TS-G765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. Adopting the latest Intel® Atom x7000C Series processor, the TS-h765eU comes with four 3.5-inch drive bays and three E1.S / M.2 PCIe NVMe slots for exceptional expandability, making it an ideal NAS for high performance and multitasking demands. The TS-h765eU runs the ZFS-based QuTS hero operating system that ensures data integrity and WORM protection for data immutability.
Specifications
| CPU | Intel Atom x7405C, 4-core, up to 3.4GHz |
|---|---|
| Fan | 3 x 40mm |
| Buttons | Power, Reset |
| M 2 Slot | 3 x E1.S up to 15mm (Pre-installed adapter for M.2 2280) |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Form Factor | 1U Short Depth Rackmount |
| Jumbo Frame | Yes |
| Memory Slot | 1 x SODIMM DDR5 |
| Flash Memory | 8GB (Dual boot OS protection) |
| USB 2 0 Port | 1 |
| Weight (Net) | 4.51 kg |
| Hot-swappable | Yes |
| System Memory | 8 GB SODIMM DDR5 (1 x 8 GB), enabled in-band ECC |
| LED Indicators | Power/Status, LAN, USB, HDD1-4, E1.S/PCIe SSD1~3 |
| Maximum Memory | 16 GB (1 x 16 GB) |
| System Warning | Buzzer |
| CPU Architecture | 64-bit x86 |
| GPU Pass-through | Yes |
| Encryption Engine | Yes (AES-NI) |
| Power Supply Unit | 150W, 100-240V |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Standard Warranty | 3 years |
| Wake on LAN (WOL) | Yes |
| Dimensions (HxWxD) | 43 × 430 × 292.1 mm |
| USB 3 2 Gen 1 Port | 1 |
| Drive Compatibility | - 3.5-inch SATA hard disk drives |
| Floating Point Unit | Yes |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| - E1 S NVMe PCIe SSDs | - E1.S NVMe PCIe SSDs |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| 10 Gigabit Ethernet Port | Optional via a PCIe adapter |
| - M 2 2280 NVMe PCIe SSDs | - M.2 2280 NVMe PCIe SSDs |
| 2 5 Gigabit Ethernet Port | 2 (2.5G/1G/100M/10M) |
| SSD Cache Acceleration Support | Yes |
| - 2 5-inch SATA solid-state drives | - 2.5-inch SATA solid-state drives |
| 3 x E1 S up to 15mm (Pre-installed adapter for M 2 2280) | 3 x E1.S up to 15mm (Pre-installed adapter for M.2 2280) |
| Max Number of Concurrent Connections (CIFS) - with Max Memory | 1500 |
Product information source: Dicker Data Partner Portal.
