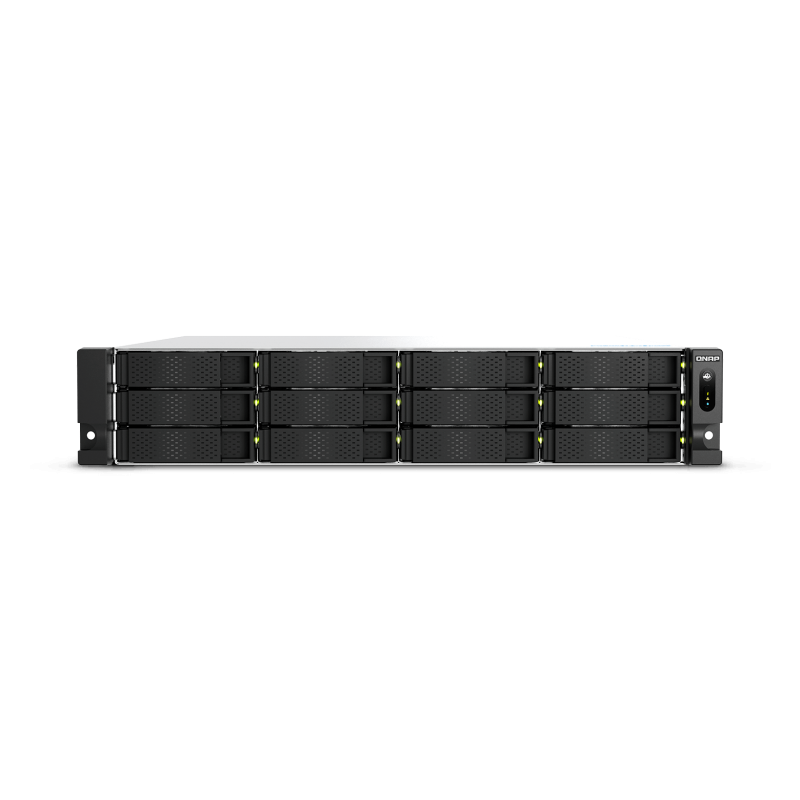

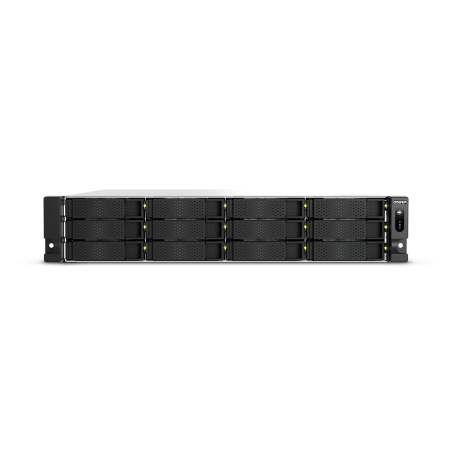

QNAP 12 BAY NAS 3.5"(0/12), R7 8C-5.3GHz, 32GB, 10GbE(2), 2.5GbE(2), RPS, 2U RACK, 5YR WTY
$7,999.00
Tax included
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.
Specifications
| CPU | AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz |
|---|---|
| Weight | - Net: 13 kg |
| Buttons | Power, Reset |
| Warranty | 5 Years |
| M 2 Slots | 2 x M.2 2280 PCIe Gen 5 x2 slots (Compatible with NVMe SSD PCIe Gen 3 and above) |
| USB Ports | 2 x Type-A USB 3.2 Gen 2 (10Gbps) |
| Drive Bays | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| PCIe Slots | - Slot 1: Gen 4 x 4 |
| Form Factor | 2U Rackmount |
| Flash Memory | 5GB (Dual boot OS protection) |
| Memory Slots | 4 x UDIMM DDR5 |
| Power Supply | 550W (x2), 100-240V |
| System Memory | 32 GB UDIMM DDR5 (1x 32 GB) |
| - Gross: 19 kg | - Gross: 19 kg |
| Cooling System | System fan: 3 x 60mm, 12VDC |
| Ethernet Ports | - 2 x 2.5GbE (2.5G/1G/100M) |
| LED Indicators | Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, Storage Expansion Port Status |
| Maximum Memory | 192 GB (4 x 48 GB) |
| System Warning | Buzzer |
| CPU Architecture | 64-bit x86 |
| GPU Pass-through | Supported |
| Encryption Engine | AES-NI |
| Power Consumption | - HDD Sleep Mode: 82.247 W |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Wake on LAN (WOL) | Yes |
| Dimensions (HxWxD) | 88.6 × 482 × 550 mm (excluding ear hooks and PSU protrusions) |
| ECC Memory Support | Optional |
| Graphics Processor | AMD Radeon Graphics |
| - Slot 3: Gen 4 x 4 | - Slot 3: Gen 4 x 4 |
| Drive Compatibility | - 3.5-inch SATA hard disk drives |
| Jumbo Frame Support | Yes |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Hot-swappable Drives | Yes |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| SSD Cache Acceleration | Supported |
| Hardware-accelerated Transcoding | Supported |
| - 2 x 10GbE (10G/5G/2 5G/1G/100M) | - 2 x 10GbE (10G/5G/2.5G/1G/100M) |
| - Slot 2: Gen 4 x 8 or Gen 4 x 4* | - Slot 2: Gen 4 x 8 or Gen 4 x 4* |
| - 2 5-inch SATA solid-state drives | - 2.5-inch SATA solid-state drives |
| Max Concurrent Connections (CIFS) | 5000 |
| - Operating Mode: 367 65 W (Tested with fully populated drives) | - Operating Mode: 367.65 W (Tested with fully populated drives) |
Product information source: Dicker Data Partner Portal.
