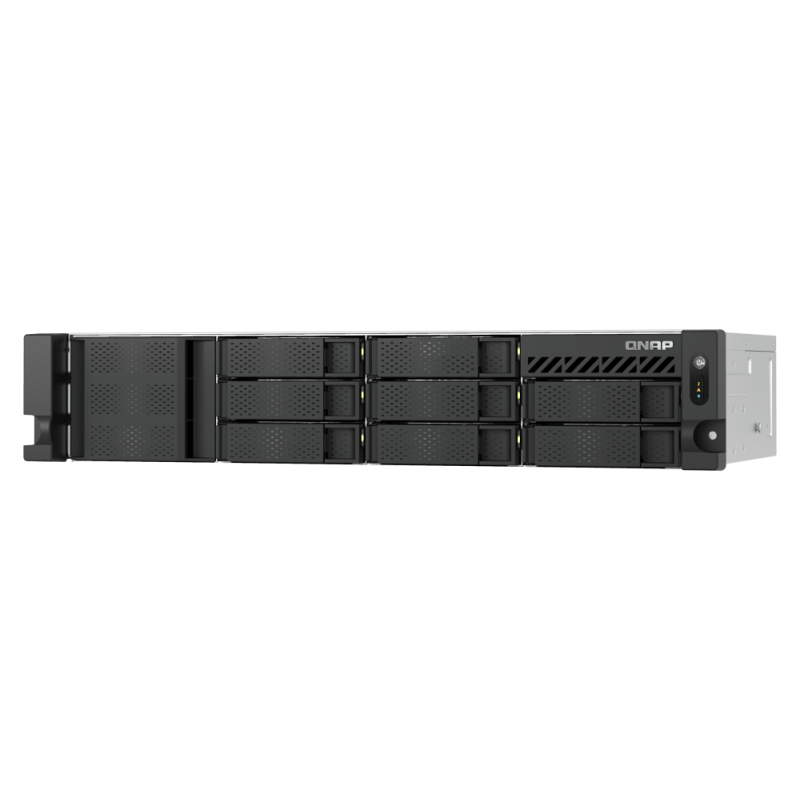

QNAP 8-BAY NAS 3.5"(0/8), ATOM 8C-2.8GHz, 8GB, 2.5GbE(2), PCIe, 2U RACK, 3YR WTY
$3,099.00
Tax included
The TS-855eU has a depth of only 11.7 inches (297.4 mm) and is perfectly suited for installation in a compact rack, or places with a lot of cabling. Flexible storage expansion Connect TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855eU for adding up to 48 additional drive capacity to match your business growth. Dual 2.5GbE connectivity Features two 2.5GbE ports (backwards compatible with 1G/100M). Supports port trunking for enhanced performance and fault tolerance. PCIe expandability Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fibre Channel cards. Optimized SSD performance Dual M.2 PCIe NVMe slots enable SSD caching or SSD storage pool for the system drive of QuTS hero. Virtual machines and containers Centralize your virtualization sto...
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The TS-855eU has a depth of only 11.7 inches (297.4 mm) and is perfectly suited for installation in a compact rack, or places with a lot of cabling. Flexible storage expansion Connect TL-R1620Sep-RP / TL-R1220Sep-RP JBOD units to the TS-855eU for adding up to 48 additional drive capacity to match your business growth. Dual 2.5GbE connectivity Features two 2.5GbE ports (backwards compatible with 1G/100M). Supports port trunking for enhanced performance and fault tolerance. PCIe expandability Features two PCIe Gen 3 slots for installing 5/10/25GbE network cards, QM2 cards or Fibre Channel cards. Optimized SSD performance Dual M.2 PCIe NVMe slots enable SSD caching or SSD storage pool for the system drive of QuTS hero. Virtual machines and containers Centralize your virtualization storage, and host multiple virtual machines and containerized apps.
Specifications
| CPU | Intel ® Atom® C5125 8-core processor, 2.8GHz |
|---|---|
| Fan | 3 x 60mm, 12VDC |
| SR-IOV | Yes |
| Buttons | Power, Reset |
| M 2 Slot | 2 x M.2 2280 (PCIe Gen 3 x 4) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| PCIe Slot | 2 x PCIe Gen3 (x4) |
| Form Factor | 2U Short Depth Rackmount |
| Jumbo Frame | Yes |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Weight (Net) | 8.1 kg |
| Hot-swappable | Yes |
| System Memory | 8 GB non-ECC SODIMM DDR4 (1 x 8 GB) |
| HDMI™ Output | Optional via a PCIe graphics card |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power |
| Maximum Memory | 64 GB (2 x 32 GB) |
| System Warning | Buzzer |
| Weight (Gross) | 9.6 kg |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| HDD Compatibility | 3.5-inch SATA hard disk drives |
| M 2 Compatibility | NVMe SSD PCIe Gen 3 and above |
| Power Supply Unit | 250W PSU, 100 - 240V |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Standard Warranty | 3 years |
| Wake on LAN (WOL) | Only the 2.5GbE port |
| Dimensions (HxWxD) | 88.6 × 432 × 297.4 mm |
| ECC Memory Support | Yes |
| USB 3 2 Gen 1 Port | 4 |
| Floating Point Unit | - |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| PCIe Slot Dimensions | Slot 1: 97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| 5 Gigabit Ethernet Port | Optional via a network adapter |
| 10 Gigabit Ethernet Port | Optional via a network adapter |
| 25 Gigabit Ethernet Port | Optional via a network adapter |
| 2 5 Gigabit Ethernet Port | 2 (2.5G/1G/100M/10M) |
| 2 5-inch SATA hard disk drives | 2.5-inch SATA hard disk drives |
| SSD Cache Acceleration Support | Yes |
| 2 5-inch SATA solid-state drives | 2.5-inch SATA solid-state drives |
| Max Concurrent Connections (CIFS) | 2500 (with Max. Memory) |
| Power Consumption (HDD Sleep Mode) | 49.799 W |
| Power Consumption (Operating Mode) | 79.113 W (tested fully populated with WD10EFRX hard drives) |
| Slot 2: 210 x 68 9 x 18 76 mm / 8 27 x 2 71 x 0 74 inches | Slot 2: 210 x 68.9 x 18.76 mm / 8.27 x 2.71 x 0.74 inches |
Product information source: Dicker Data Partner Portal.
