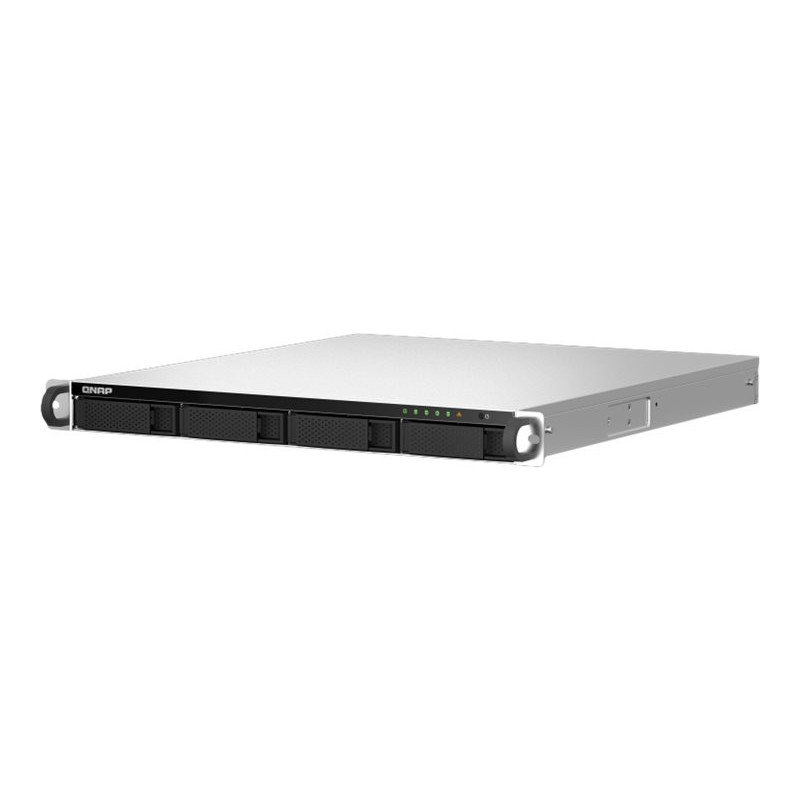

QNAP 4-BAY NAS 3.5"(0/4), CEL QC-2.0GHz, 8GB, 2.5GbE(2), PCIe, RPS, 1U RACK, 3YR WTY
$2,399.00
Tax included
Powered by an Intel® Celeron® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI™ output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime. The TS-464U-RP uses the QTS operating system by default. You will be abl...
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Powered by an Intel® Celeron® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI™ output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime. The TS-464U-RP uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.2.)
Specifications
| RAM | 8 GB |
|---|---|
| Power | AC 100-240 V |
| Weight | 8.12 kg () |
| Processor | 1 x Intel Celeron N5105/N5095 (Quad-Core) |
| Networking | 10Mb LAN, 100Mb LAN, GigE, 2.5 GigE |
| Device Type | NAS server |
| Performance | Maximum pool size: 308 TB ? Maximum number of storage pool: 128 ? Maximum volume size: 250 TB ? Maximum number of volume: 128 ? Maximum shared folder size: 250 TB ? Maximum number of shared folder: 512 ? Maximum LUN size: 250 TB ? Maximum number of targets LUN: 256 ? Minimum snapshot interval: up to 5 minutes ? Maximum FTP connection: 1024 ? Local user account: 4096 ? Local group account: 512 ? Domain user/group account: 200000 ? Virtual hosts: 32 ? Maximum number of version control: 64 |
| Enclosure Type | Rack-mountable - 1U |
| Power Redundancy | Yes |
| Host Connectivity | 2.5 Gigabit Ethernet |
| Dimensions (WxDxH) | 43 cm x 47.9 cm x 4.33 cm |
| Storage Controller | RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD |
| Product Description | QNAP TS-464U-RP - NAS server |
| System Requirements | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
| Manufacturer Warranty | 3-year warranty |
| Storage Operating System | QNAP QTS 5.0.1 |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
Dimensions & Weight (Shipping)
| Shipping Weight | 10.1 kg |
|---|
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 40 C |
| Humidity Range Operating | 5 - 95% RH (non-condensing) |
Expansion / Connectivity
| Expansion Bays | 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5" |
|---|---|
| Expansion Slots | 1 (total) / 1 (free) x PCI Express 3.0 x2 |
| Interfaces | 2 x 2.5 Gigabit Ethernet - RJ-45 2 x USB 2.0 - Type A 2 x USB 3.2 Gen 2 - Type A 1 x HDMI output |
General
| Device Type | NAS server |
|---|---|
| Host Connectivity | 2.5 Gigabit Ethernet |
| Enclosure Type | Rack-mountable - 1U |
| Total Storage Capacity | 0 GB |
| Installed Devices / Modules Qty | 0 (installed) / 4 (max) |
| Width | 43 cm |
| Depth | 47.9 cm |
| Height | 4.33 cm |
| Weight | 8.12 kg () |
| Built-in Devices | 2 x 40 mm fan |
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years |
|---|
Miscellaneous
| Cables Included | 1 x network cable |
|---|---|
| Compliant Standards | TLS v1.2, TLS, TLS v1.0, TLS v1.1, SSL, TLS v1.3 |
| Included Accessories | 2 x hangers, 48 x flat head screws (for 3.5" HDD), 36 x flat head screws (for 2.5" HDD) |
Networking
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE, 2.5 GigE |
|---|---|
| Network / Transport Protocol | PPTP, L2TP, FTP, SMB, DDNS, SFTP, IPv4, IPv6, FTPS, CIFS, WireGuard, TFTP, QuFTP |
| Remote Management Protocol | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, RADIUS |
| Network Services Compatibility | DHCP, Microsoft CIFS, Server Message Block (SMB), Apple File Protocol (AFP), Network File System v3 (NFS v3), Network File System v4 (NFS v4) |
| Performance | Maximum pool size: 308 TB Maximum number of storage pool: 128 Maximum volume size: 250 TB Maximum number of volume: 128 Maximum shared folder size: 250 TB Maximum number of shared folder: 512 Maximum LUN size: 250 TB Maximum number of targets LUN: 256 Minimum snapshot interval: up to 5 minutes Maximum FTP connection: 1024 Local user account: 4096 Local group account: 512 Domain user/group account: 200000 Virtual hosts: 32 Maximum number of version control: 64 |
| Features | Firewall protection, VLAN support, wake on LAN (WOL), Jumbo Frames support, DHCP server, FTP server, Network Access Protection (NAP), Domain Controller, system log, built-in hardware transcoding, file station, port trunking, EXT4 file system, SSD trim, Windows ODX, FXP support, hybrid backup sync, Qfiling, Qsirch, SQL Server, Network Recycle Bin, VJBOD Cloud, Qsync, QuMagie, Smart Fan, QmailAgent, QuWAN, LDAP server, Storage Pool, SED Storage Pool, JBOD Expansion, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD read-only Cache, SSD read-write cache, SSD write-only cache, SSD profiling tool, External Device Management, Mount Smart Phone (MTP), Object Storage, shared folder permission, advanced folder permission, group quota, folder quota, home folder, Resource Monitor, Virtual Switch, Allow/Deny List, Access Protection, Service binding, HD Station, DA Driver Analyzer, floating point unit, SSD cache acceleration support, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, multipath IO (MPIO), online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, SSD life estimation, domain security, security counselor, malware remover, 2-step verification, HybridMount, Hyper Data Protector, Boxafe, Windows ACL, schedule on/off, media streaming add-on, Secure Erase, QVPN Service, user quota |
| Encryption Algorithm | FIPS 140-2, 256-bit AES, AES-NI |
Power
| Power Device | Internal power supply |
|---|---|
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V |
| Power Consumption Operational | 51.404 Watt |
| Power Provided | 250 Watt |
Processor / Memory
| Processors Installed | 1 x Intel Celeron N5105/N5095 |
|---|---|
| Number of Cores | Quad-Core |
| Max Supported Qty | 1 |
| Max Turbo Speed | 2.9 GHz |
| RAM | 8 GB (installed) / 8 GB (supported) |
| Flash Memory Installed | 4 GB |
Software / System Requirements
| Storage Operating System | QNAP QTS 5.0.1 |
|---|---|
| Software Included | QNAP Virtualization Station, McAfee, IronWolf Health Management |
| OS Required | Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11 |
Storage Controller
| Type | RAID |
|---|---|
| Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD |
Product information source: Dicker Data Partner Portal.
