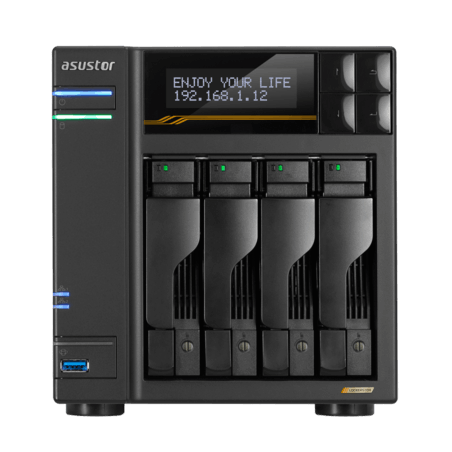

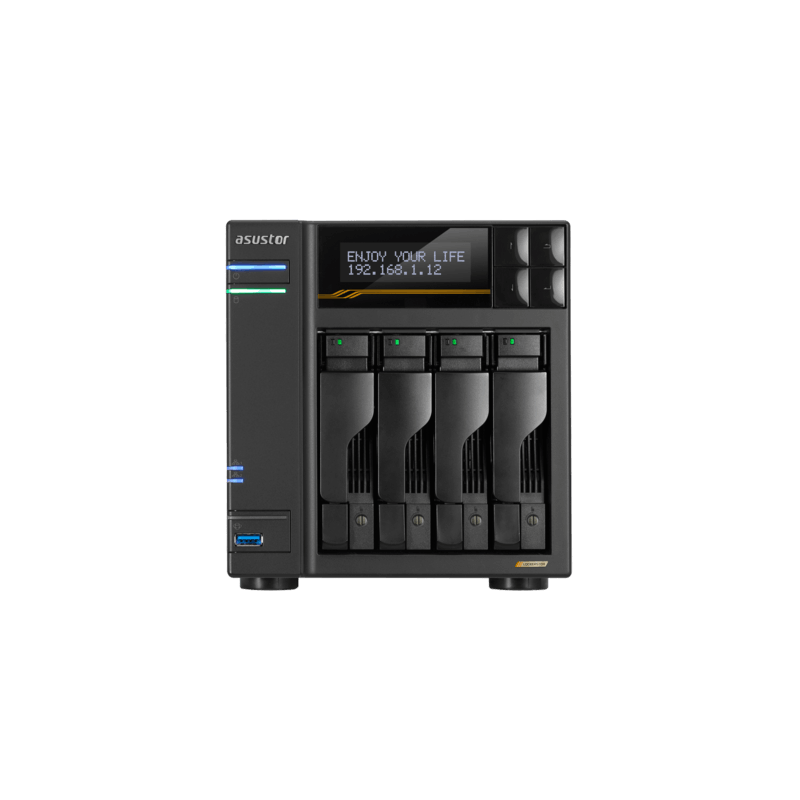

ASUSTOR 4-BAY NAS 3.5"/2.5"(0/4), QC-2.3GHz, 16GB, M.2(4), 5G(2), 10G(2), PCIe, TWR, 3YR
$1,575.00
Tax included
Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo 16GB of server-grade DDR5-4800 ECC memory (Max 64GB) Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0 2x USB4 ports at 40 Gbps 3x USB 3.2 Gen 2 Type-A at 10 Gbps 2x 10-Gigabit Ethernet 2x 5-Gigabit Ethernet Supports Wake on LAN and Wake on WAN (5 GbE)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo 16GB of server-grade DDR5-4800 ECC memory (Max 64GB) Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0 2x USB4 ports at 40 Gbps 3x USB 3.2 Gen 2 Type-A at 10 Gbps 2x 10-Gigabit Ethernet 2x 5-Gigabit Ethernet Supports Wake on LAN and Wake on WAN (5 GbE)
Specifications
| Size | 185.5(H) x 170(W) x 230(D) mm |
|---|---|
| Memory | 16GB ECC DDR5-4800 SO-DIMM |
| Weight | 3.2 kg / 7.06 lb |
| Network | 2x 5 Gigabit Ethernet (5G/2.5G/1G/100M) 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M) |
| Humidity | 5% to 95% RH |
| Warranty | 3 Years |
| CPU Model | AMD Ryzen V3C14 |
| Expansion | 3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A 2 x USB 4.0 (40Gbps) Type-C Note. USB 4.0 is backward compatible with 3.2 Gen2 (10Gbps max), USB 3.2 Gen1 (5Gbps) and 2.0 |
| LCD Panel | Yes |
| Drive Bays | 4 |
| System Fan | 1x 120mm |
| Noise Level | 17.6dB (HDD idle) |
| Flash Memory | 8GB eMMC |
| CPU Frequency | Quad-Core 2.3GHz (burst up 3.8 GHz) |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA |
| M 2 Drive Slots | 4 |
| CPU Architecture | x64 64-bit |
| Multimedia Output | N/A |
| Power Consumption | 34 W (Operation); 23 W (Sleep Mode) |
| Total Memory Slots | 2 |
| Input Power Voltage | 100V to 240V AC |
| Storage Temperature | -20°C~70°C (-4°F~158°F) |
| PCIe Expansion Slots | PCIe 4.0, x4 link, (for optional 10 GbE card) |
| Compatible Drive Type | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe |
| Operation Temperature | 0°C~40°C (32°F~104°F) |
| Memory Expandable up to | 64GB (2x 32GB) |
| Memory Module Pre-installed | 16GB (1x 16GB) |
| Power Supply Unit / Adapter | 90W x1 |
| Supports Hot Swappable Drives | Yes |
| Maximum Drive Bays with Expansion Unit | 24 |
Product information source: Dicker Data Partner Portal.
