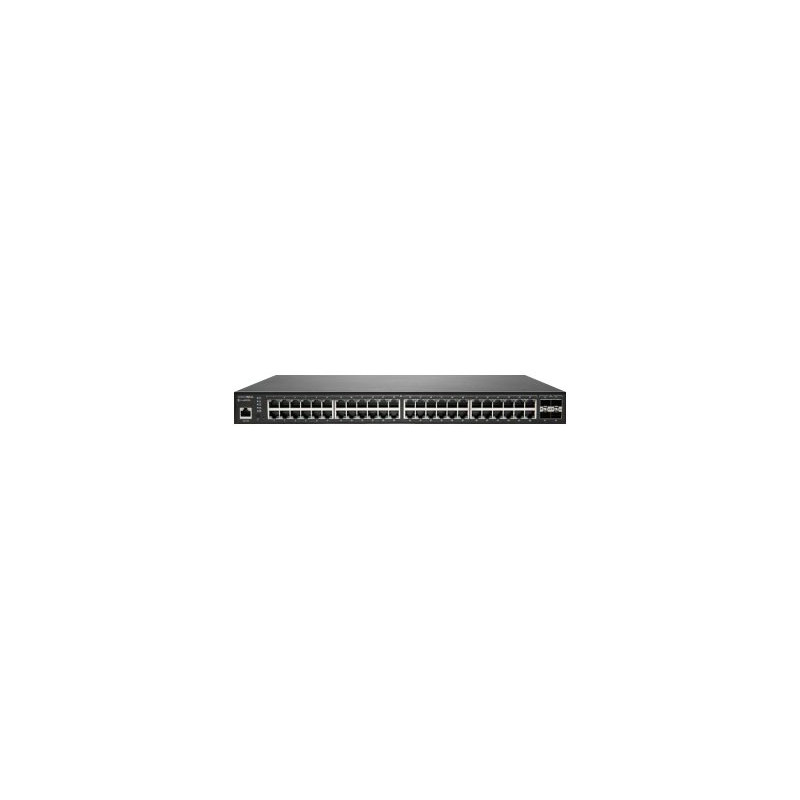

SONICWALL SWITCH SWS14-48FPOE
search
  • SONICWALL SWITCH SWS14-48FPOE

SONICWALL SWITCH SWS14-48FPOE

$2,691.00
Tax included

SonicWall Switch SWS14-48FPOE - Switch - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W)

Dimension: 40x60cm
Quantity
Product available with different options

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

SonicWall Switch SWS14-48FPOE - Switch - Managed - 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ - rack-mountable - PoE+ (740 W)

Specifications

Ports48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
PowerAC 120/230 V (50/60 Hz)
Weight4.8 kg
Subtype10 Gigabit Ethernet
CapacityVirtual interfaces (VLANs): 4096
FeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 2MB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration
PoE Budget740 W
Device TypeSwitch - 52 ports - Managed
PerformanceSwitching capacity: 176 Gbps
Enclosure TypeRack-mountable 1U
Routing ProtocolStatic IP routing
Dimensions (WxDxH)44 cm x 31 cm x 4.4 cm
Compliant StandardsIEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
Product DescriptionSonicWall Switch SWS14-48FPOE - switch - 52 ports - Managed - rack-mountable
MAC Address Table Size32K entries
Power Over Ethernet (PoE)PoE+
Remote Management ProtocolSNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI

Dimensions & Weight

Width44 cm
Depth31 cm
Height4.4 cm
Weight4.8 kg

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature40 C
Humidity Range Operating10 - 95%
Min Storage Temperature-40 C
Max Storage Temperature70 C

Expansion / Connectivity

Interfaces48 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ 1 x console RJ-45

General

Device TypeSwitch - 52 ports - Managed
Enclosure TypeRack-mountable 1U
Subtype10 Gigabit Ethernet
Ports48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)PoE+
PoE Budget740 W
PerformanceSwitching capacity: 176 Gbps
CapacityVirtual interfaces (VLANs): 4096
MAC Address Table Size32K entries
Routing ProtocolStatic IP routing
Remote Management ProtocolSNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI
Authentication MethodRADIUS
FeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Guard, DHCP relay, LACP, DHCP client, 2MB packet buffer, Storm Control, Back Pressure Support, LLDP-MED, STP BPDU Guard, EEE, VLAN Tagging, daisy-chaining support, LAG, DSCP based QoS, zero-touch configuration
Compliant StandardsIEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM512 MB
Flash Memory128 MB
Status IndicatorsPoE, LAN

Miscellaneous

MTBF100,645 hours
Compliant StandardsFCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, RoHS, KCC, WEEE, ANATEL, REACH, ICES Class A, LVD, EMC Class A, VCCI Class A, MSIP

Power

Power DeviceInternal power supply
Power Provided900 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Power Consumption Operational530 Watt

Resources

Product information source: Dicker Data Partner Portal.

SONICWALL
demo_7
0 Item

Data sheet

Capacity
Virtual interfaces (VLANs): 4096
Weight
4.8 kg
Dimensions (WxDxH)
44 cm x 31 cm x 4.4 cm
Power
AC 120/230 V (50/60 Hz)
Compliant Standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at
Features
Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, firmware upgradable, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, Jumbo Frames support, STP Root Gua
Remote Management Protocol
SNMP 1, SNMP 3, SNMP 2c, HTTPS, SSH, CLI
Routing Protocol
Static IP routing
MAC Address Table Size
32K entries
Composition
Matt paper
Performance
Switching capacity: 176 Gbps
PoE Budget
740 W
Power Over Ethernet (PoE)
PoE+
Ports
48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Subtype
10 Gigabit Ethernet
Enclosure Type
Rack-mountable 1U
Device Type
Switch - 52 ports - Managed
Product Description
SonicWall Switch SWS14-48FPOE - switch - 52 ports - Managed - rack-mountable
