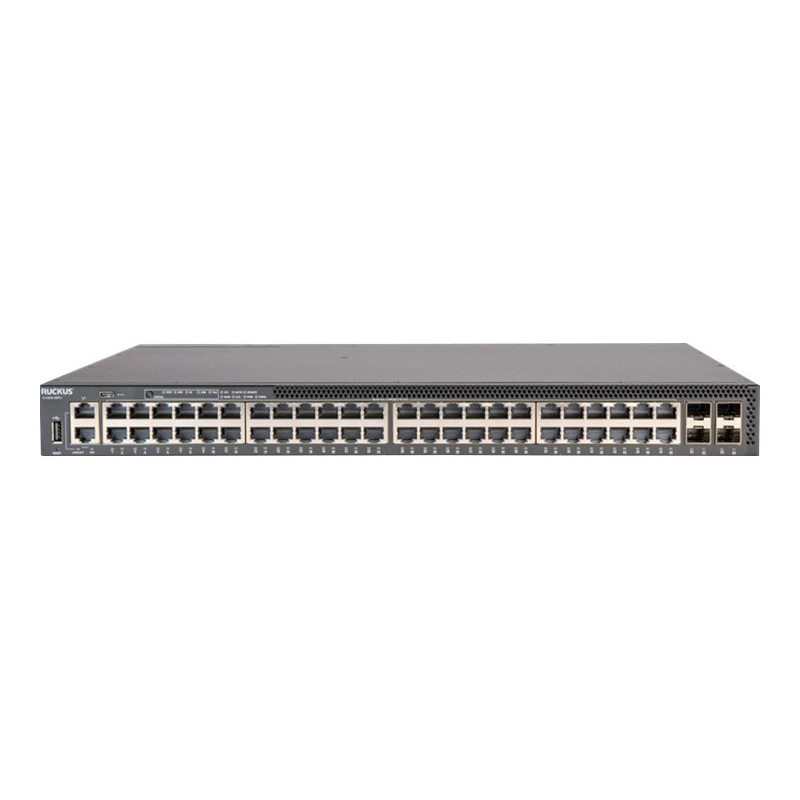

RUCKUS 48-PRT MG POE FRU BUNDLE 2PSU
$9,563.00
Tax included
Ruckus ICX 8200 - Switch - L3 - Managed - 32 x 10/100/1000 (PoE+) + 16 x 10/100/1000/2500 (PoE++) - front to back airflow - rack-mountable - PoE++ (1480 W)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Ruckus ICX 8200 - Switch - L3 - Managed - 32 x 10/100/1000 (PoE+) + 16 x 10/100/1000/2500 (PoE++) - front to back airflow - rack-mountable - PoE++ (1480 W)
Specifications
| Ports | 32 x 10/100/1000 (PoE+) + 16 x 10/100/1000/2500 (PoE++) |
|---|---|
| Power | AC 100-240 V (50 - 60 Hz) |
| Weight | 6.64 kg |
| Capacity | Virtual interfaces (VLANs): 4095 ? Spanning Tree Protocol instances: 253 |
| Features | Flow control, DHCP support, BOOTP support, ARP support, VLAN support, Weighted Round Robin (WRR) queuing, MAC address filtering, DDos attack prevention, Metro Ring Protocol (MRP) support, sFlow, PIM snooping, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support |
| PoE Budget | 1480 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity: 344 Gbps ? Forwarding performance: 254 Mpps ? Stacking bandwidth: 1.2 Tbps |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Power Redundancy | Yes |
| Routing Protocol | OSPF, VRRP, GRE, static IPv4 routing, static IPv6 routing |
| Dimensions (WxDxH) | 44 cm x 37 cm x 4.4 cm |
| Jumbo Frame Support | 9216 bytes |
| Product Description | Ruckus ICX 8200 - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32K entries |
| Power Over Ethernet (PoE) | PoE++ |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, DHCP |
Dimensions & Weight
| Width | 44 cm |
|---|---|
| Depth | 37 cm |
| Height | 4.4 cm |
| Weight | 6.64 kg |
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 45 C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Storage Temperature | 70 C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Expansion / Connectivity
| Interfaces | 32 x 10/100/1000 Base-T (PoE+) RJ-45 16 x 10/100/1000/2500 Base-T (PoE++) RJ-45 1 x RJ-45 out-of-band network management 1 x USB-C console management 1 x serial (console) RJ-45 management 1 x USB storage 4 x 25 GbE SFP28 uplink/stacking |
|---|
General
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
|---|---|
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Ports | 32 x 10/100/1000 (PoE+) + 16 x 10/100/1000/2500 (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 1480 W |
| Performance | Switching capacity: 344 Gbps Forwarding performance: 254 Mpps Stacking bandwidth: 1.2 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 Spanning Tree Protocol instances: 253 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 12 |
| Routing Protocol | OSPF, VRRP, GRE, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, DHCP |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, DHCP support, BOOTP support, ARP support, VLAN support, Weighted Round Robin (WRR) queuing, MAC address filtering, DDos attack prevention, Metro Ring Protocol (MRP) support, sFlow, PIM snooping, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Built-in Devices | 2 x fans |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime Limited warranty - technical support - 3 years |
|---|
Miscellaneous
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15 B Class A, VCCI Class A, EN 300 386, KN32 Class A, KN35 Class A, EN 55032, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, TCVN 7189 Class A, TCVN 7317, EN 55035 |
|---|
Power
| Power Device | Internal power supply - hot-plug |
|---|---|
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Power Provided | 920 Watt |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
Resources
Product information source: Dicker Data Partner Portal.
