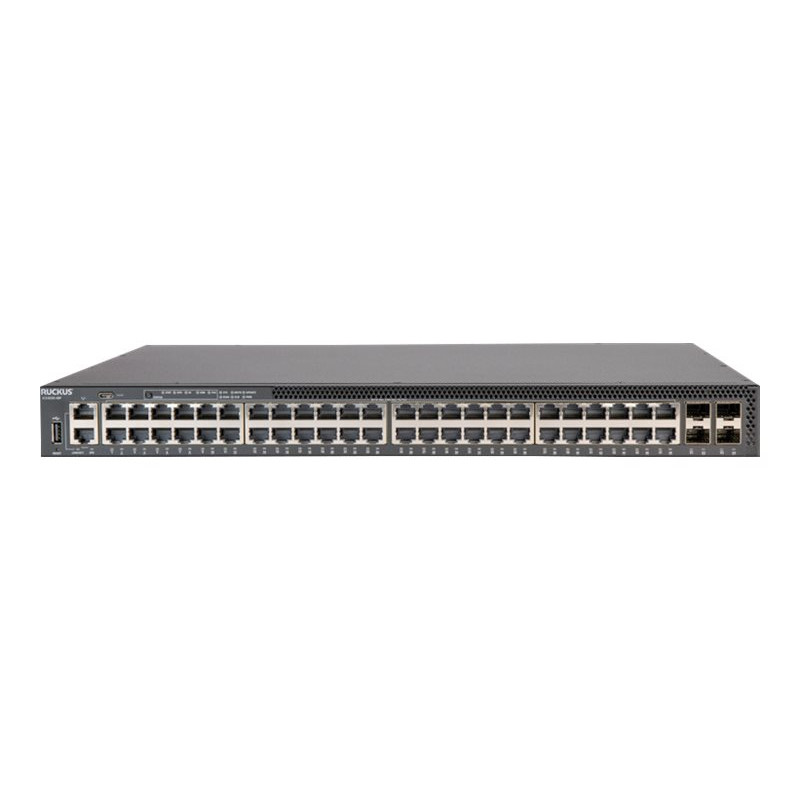

RUCKUS 48-PRT POE 370W 4X25G SFP28
$5,268.00
Tax included
Ruckus ICX 8200 - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 25 GbE SFP28 (stacking / uplink) - front and side to back - rack-mountable - PoE+ (370 W)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Ruckus ICX 8200 - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 4 x 25 GbE SFP28 (stacking / uplink) - front and side to back - rack-mountable - PoE+ (370 W)
Specifications
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 25 GbE SFP28 (stacking / uplink) |
|---|---|
| Power | AC 100-240 V (50 - 60 Hz) |
| Weight | 5.57 kg |
| Capacity | Virtual interfaces (VLANs): 4095 ? Spanning Tree Protocol instances: 253 |
| PoE Budget | 370 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity: 296 Gbps ? Forwarding performance: 220 Mpps ? Stacking bandwidth: 1.2 Tbps |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Routing Protocol | OSPF, VRRP, GRE, static IPv4 routing, static IPv6 routing |
| Dimensions (WxDxH) | 44 cm x 37 cm x 4.4 cm |
| Jumbo Frame Support | 9216 bytes |
| Product Description | Ruckus ICX 8200 - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32K entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, DHCP |
Dimensions & Weight
| Width | 44 cm |
|---|---|
| Depth | 37 cm |
| Height | 4.4 cm |
| Weight | 5.57 kg |
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 45 C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Storage Temperature | 70 C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Expansion / Connectivity
| Interfaces | 48 x 10/100/1000 Base-T (PoE+) RJ-45 1 x RJ-45 out-of-band network management 1 x USB-C console management 1 x serial (console) RJ-45 management 1 x USB storage 4 x 25 GbE SFP28 uplink/stacking |
|---|
General
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
|---|---|
| Enclosure Type | Front and side to back rack-mountable 1U |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 25 GbE SFP28 (stacking / uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 296 Gbps Forwarding performance: 220 Mpps Stacking bandwidth: 1.2 Tbps |
| Capacity | Virtual interfaces (VLANs): 4095 Spanning Tree Protocol instances: 253 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 12 |
| Routing Protocol | OSPF, VRRP, GRE, static IPv4 routing, static IPv6 routing |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, DHCP |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| RAM | 4 GB |
| Flash Memory | 8 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime Limited warranty - technical support - 3 years |
|---|
Miscellaneous
| Compliant Standards | EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15 B Class A, VCCI Class A, EN 300 386, KN32 Class A, KN35 Class A, EN 55032, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, TCVN 7189 Class A, TCVN 7317, EN 55035 |
|---|
Power
| Power Device | Internal power supply |
|---|---|
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Provided | 525 Watt |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
Resources
Product information source: Dicker Data Partner Portal.
