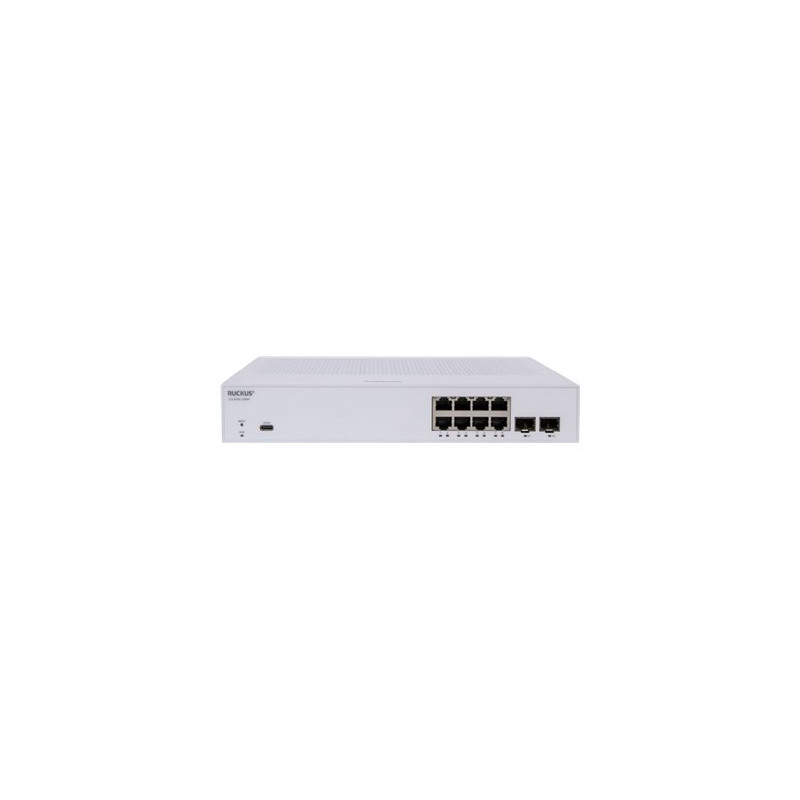

RUCKUS 8-PRT POE+ 124W 2x10G SFP

Name: RUCKUS 8-PRT POE+ 124W 2x10G SFP
Brand: RUCKUS
SKU: ICX8100-C08PF-X
Price: 1459 AUD
Availability: InStock

$1,459.00

Tax included

Ruckus ICX 8100 - Switch - compact - Managed - 8 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (124 W) - for P/N: PCJAPAN, PCUK, SX-PCAUS

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Description
Product Details

Ruckus ICX 8100 - Switch - compact - Managed - 8 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink) - rack-mountable - PoE+ (124 W) - for P/N: PCJAPAN, PCUK, SX-PCAUS

Specifications

Ports	8 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink)
Power	AC 100-240 V (50 - 60 Hz)
Weight	2.11 kg
Capacity	Packet buffer size: 4 MB
Features	sFlow, EEE, CoS, DSCP/ToS mapping, QoS, traffic management, 802.1x authentication, MAC address authentication, Flexible authentication, Web authentication, DHCP snooping, DAI, IPv6 Neighbour Discovery Inspection, AAA, DoS protection, MAC address blocking, SCP, protected ports, CoA, TPM, Syslog support, Layer 2 switching, High Availability, auto-uplink (auto MDI/MDI-X), BPDU Guard, double VLAN mode, GVRP, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, IPG adjustment, LFS, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, PVST, PVST+, PIM-SM snooping, Port Loop Detection, port mirroring, Private VLAN, Q-in-Q tunnelling, RFN, Root Guard, UDLD, VLAN mapping, DHCP server, DHCP relay, RSPAN
PoE Budget	124 W
Device Type	Switch - 8 ports - Managed
Performance	Switching capacity: 56 Gbps ? Forwarding performance: 42 Mpps
Designed For	P/N: PCJAPAN, PCUK, SX-PCAUS
Enclosure Type	Rack-mountable
Dimensions (WxDxH)	27 cm x 21.4 cm x 4.4 cm
Compliant Standards	IEEE 802.3at, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3bt
Jumbo Frame Support	9216 bytes
Product Description	Ruckus ICX 8100 - switch - compact - 8 ports - Managed - rack-mountable
Manufacturer Warranty	Limited lifetime warranty
MAC Address Table Size	32K entries
Power Over Ethernet (PoE)	PoE+
Remote Management Protocol	SNMP 1, SNMP 2c, Telnet, DHCP, HTTP, HTTPS, CLI, TFTP, SSH, SSH-2, BOOTP, SNMP 3, NTP, SCP

Compatibility Information

Designed For	P/N: PCJAPAN, PCUK, SX-PCAUS

Dimensions & Weight

Width	27 cm
Depth	21.4 cm
Height	4.4 cm
Weight	2.11 kg

Environmental Parameters

Min Operating Temperature	0 C
Max Operating Temperature	45 C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-40 C
Max Storage Temperature	70 C
Humidity Range Storage	10 - 90% (non-condensing)

Expansion / Connectivity

Interfaces	8 x 10/100/1000 Base-T (PoE+) RJ-45 2 x 10Gbit LAN SFP+ uplink 1 x USB Type C console management

General

Device Type	Switch - 8 ports - Managed
Enclosure Type	Rack-mountable
Ports	8 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)	PoE+
PoE Budget	124 W
Performance	Switching capacity: 56 Gbps Forwarding performance: 42 Mpps
Capacity	Packet buffer size: 4 MB
MAC Address Table Size	32K entries
Jumbo Frame Support	9216 bytes
Remote Management Protocol	SNMP 1, SNMP 2c, Telnet, DHCP, HTTP, HTTPS, CLI, TFTP, SSH, SSH-2, BOOTP, SNMP 3, NTP, SCP
Encryption Algorithm	AES
Authentication Method	Secure Shell v.2 (SSH2), RADIUS, TACACS, TACACS+, RADSEC
Features	sFlow, EEE, CoS, DSCP/ToS mapping, QoS, traffic management, 802.1x authentication, MAC address authentication, Flexible authentication, Web authentication, DHCP snooping, DAI, IPv6 Neighbour Discovery Inspection, AAA, DoS protection, MAC address blocking, SCP, protected ports, CoA, TPM, Syslog support, Layer 2 switching, High Availability, auto-uplink (auto MDI/MDI-X), BPDU Guard, double VLAN mode, GVRP, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, IPG adjustment, LFS, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, PVST, PVST+, PIM-SM snooping, Port Loop Detection, port mirroring, Private VLAN, Q-in-Q tunnelling, RFN, Root Guard, UDLD, VLAN mapping, DHCP server, DHCP relay, RSPAN
Compliant Standards	IEEE 802.3at, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3bt
RAM	2 GB
Flash Memory	8 GB

Manufacturer Warranty

Service & Support	Limited warranty - lifetime

Miscellaneous

MTBF

1,194,958 hours

Compliant Standards

RoHS, China RoHS, UK RoHS, FCC Part 15 B Class A, EN 55032 Class A, EN 55035, EN55024, ICES-003 Class A, VCCI Class A, EN 300 386, CNS 15936-1 Class A, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, EN 61000-3-2, EN 61000-3-3, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 60825, EN 60950-1, IEC 60950-1, EN 62368-1, CNS 15598-1, BSMI CNS 15663, China RoHS SJ/T 11363-2006, China RoHS SJ/T 11364-2006, Directive 1907/2006/EC, Directive 2006/66/EC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 30/2011/TT-BCT, Directive 94/62/EC, EU REACH, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 2011/65/EU, WEEE 2012/19/EU

Power

Power Device	Internal power supply
Installed Qty	1
Max Supported Qty	1
Power Provided	154 Watt
Voltage Required	AC 100-240 V (50 - 60 Hz)

Resources

Product information source: Dicker Data Partner Portal.

Brand RUCKUS

Reference ICX8100-C08PF-X

In stock 6 Items

Condition New
