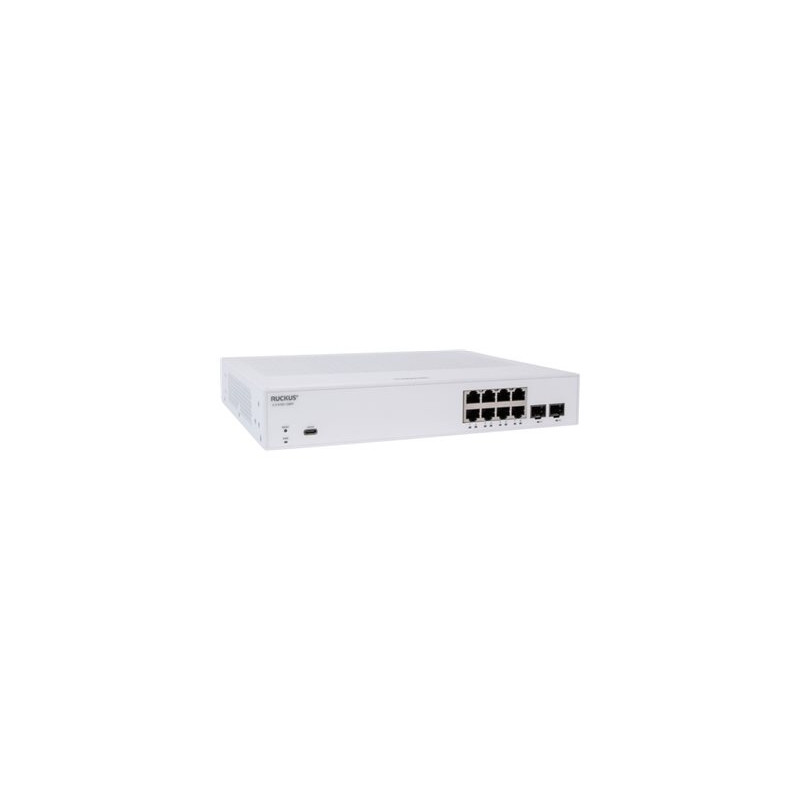

RUCKUS 8-PRT POE+ 124W 2X1G SFP
search
  • RUCKUS 8-PRT POE+ 124W 2X1G SFP

RUCKUS 8-PRT POE+ 124W 2X1G SFP

$892.00
Tax included

Ruckus ICX 8100 - Switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit SFP - rack-mountable - PoE+ (124 W)

Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Ruckus ICX 8100 - Switch - Managed - 8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit SFP - rack-mountable - PoE+ (124 W)

Specifications

Ports8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit SFP
PowerAC 100-240 V (50 - 60 Hz)
Weight4.3 kg
CapacityMaximum number of VLANs: 4095 ? PVLANs supported: 32 ? STP instances: 254 ? ARP entries: 8192
FeaturesFlow control, DHCP support, BOOTP support, ARP support, VLAN support, WRR queuing, MAC address filtering, MRP support, sFlow, PIM snooping, STP support, RSTP support
PoE Budget124 W
Device TypeSwitch - 8 ports - Managed - stackable
PerformanceSwitching capacity (full duplex): 56 Gbps ? Forwarding performance: 42 Mpps
Enclosure TypeRack-mountable
Dimensions (WxDxH)27 cm x 21.4 cm x 4.4 cm
Jumbo Frame Support9216 bytes
Product DescriptionRuckus ICX 8100 - switch - 8 ports - Managed - rack-mountable
Manufacturer WarrantyLimited lifetime warranty
MAC Address Table Size32K entries
Power Over Ethernet (PoE)PoE+
Remote Management ProtocolSNMP 1, SNMP 2c, Telnet, DHCP, HTTP, HTTPS, CLI, TFTP, SSH, SSH-2, BOOTP, SNMP 3, NTP, SCP

Dimensions & Weight

Width27 cm
Depth21.4 cm
Height4.4 cm
Weight4.3 kg

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature45 C
Humidity Range Operating10 - 90% RH (non-condensing)
Max Storage Temperature70 C
Humidity Range Storage10 - 90% (non-condensing)

Expansion / Connectivity

Interfaces24 x 10/100/1000 Base-T (PoE+) RJ-45 4 x Gigabit SFP SFP 1 x USB Type C console management 1 x serial RJ-45

General

Device TypeSwitch - 8 ports - Managed - stackable
Enclosure TypeRack-mountable
Ports8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit SFP
Power Over Ethernet (PoE)PoE+
PoE Budget124 W
PerformanceSwitching capacity (full duplex): 56 Gbps Forwarding performance: 42 Mpps
CapacityMaximum number of VLANs: 4095 PVLANs supported: 32 STP instances: 254 ARP entries: 8192
MAC Address Table Size32K entries
Jumbo Frame Support9216 bytes
Remote Management ProtocolSNMP 1, SNMP 2c, Telnet, DHCP, HTTP, HTTPS, CLI, TFTP, SSH, SSH-2, BOOTP, SNMP 3, NTP, SCP
Encryption AlgorithmAES
Authentication MethodRADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
FeaturesFlow control, DHCP support, BOOTP support, ARP support, VLAN support, WRR queuing, MAC address filtering, MRP support, sFlow, PIM snooping, STP support, RSTP support
RAM2 GB
Flash Memory8 GB

Manufacturer Warranty

Service & SupportLimited warranty - lifetime

Miscellaneous

MTBF1,194,958 hours
Compliant StandardsFCC Part 15 Subpart B, EN 55032, EN 55035 Class A, EN55024, ICES-003 Class A, EN 55032 Class A, VCCI Class A, EN 300 386, BSMI CNS 15936, KCC KN32 Class A, KN35 Class A, TCVN 7189 Class A, EN 61000-3-2, EN 61000-3-3, CAN/CSA-C22.2 No. 62368-1, EN 60825, UL 62368-1, TCVN 7317, EN 60950-1, IEC 60950-1, IEC 62368-1, CNS 15598-1, 2014/35/EU, 2014/30/EU, 2011/65/EU, 2012/19/EU, 2006/66/EG, Directive 1907/2006/EC, REACH, Directive 30/2011/TT-BCT, SJ/T 11363-2006, SJ/T 11364-2006, CNS 15663, IEC 68-2-36, IEC 68-2-27, IEC 68-2-32

Power

Power DeviceInternal power supply
Installed Qty1
Max Supported Qty1
Power Provided154 Watt
Voltage RequiredAC 100-240 V (50 - 60 Hz)

Resources

Product information source: Dicker Data Partner Portal.

RUCKUS
ICX8100-C08PF
