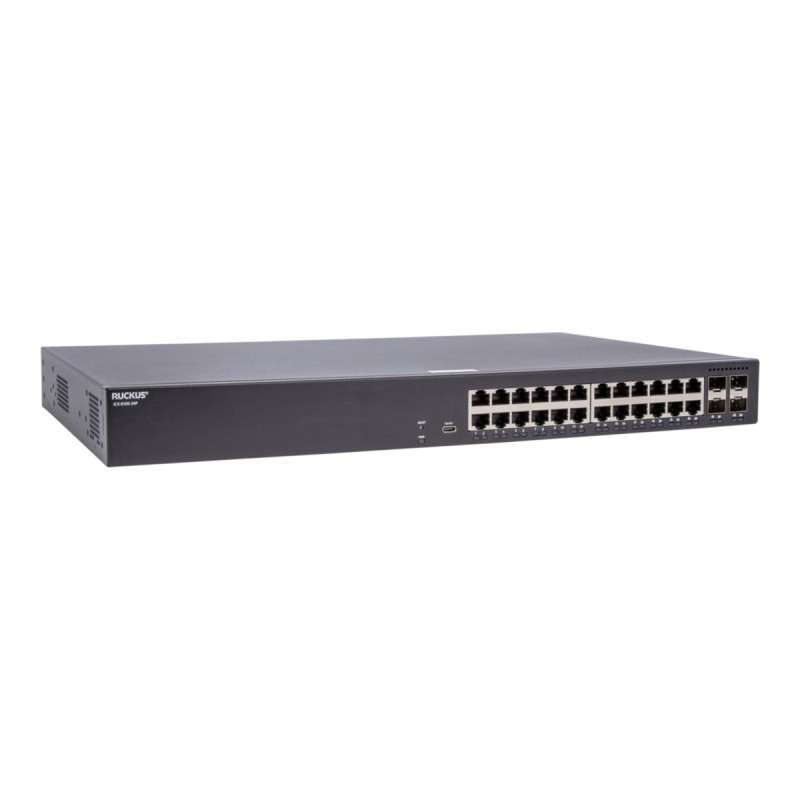

RUCKUS 24-PRT POE+ 370W 4X10G SFP
$2,959.00
Tax included
Ruckus ICX 8100-24P - Switch - Managed - 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (370 W) - for P/N: CC-USBC-USBA, ICX7000-C12-WMK, PCAUS, PCEURO, PCINDIA, PCUK, PCUSA2, XBR-R000295
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Ruckus ICX 8100-24P - Switch - Managed - 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (370 W) - for P/N: CC-USBC-USBA, ICX7000-C12-WMK, PCAUS, PCEURO, PCINDIA, PCUK, PCUSA2, XBR-R000295
Specifications
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
|---|---|
| Power | AC 100-240 V (50 - 60 Hz) |
| Weight | 4.3 kg |
| Subtype | Gigabit Ethernet |
| Capacity | Packet buffer size: 4 MB ? Maximum number of VLANs: 4095 ? PVLANs supported: 32 ? STP instances: 254 ? ARP entries: 8192 ? Link aggregation groups: 128 ? Maximum member ports per LAG: 8 ? QoS priority queues per port: 8 ? IGMP multicast groups: 4096 ? MLD multicast groups: 512 |
| Features | sFlow, EEE, CoS, DSCP/ToS mapping, QoS, traffic management, 802.1x authentication, MAC address authentication, Flexible authentication, Web authentication, DHCP snooping, DAI, IPv6 Neighbour Discovery Inspection, AAA, DoS protection, MAC address blocking, SCP, protected ports, CoA, TPM, Syslog support, Layer 2 switching, High Availability, auto-uplink (auto MDI/MDI-X), BPDU Guard, double VLAN mode, GVRP, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, IPG adjustment, LFS, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, PVST, PVST+, PIM-SM snooping, Port Loop Detection, port mirroring, Private VLAN, Q-in-Q tunnelling, RFN, Root Guard, UDLD, VLAN mapping, DHCP server, DHCP relay, RSPAN |
| PoE Budget | 370 W |
| Device Type | Switch - 24 ports - Managed |
| Performance | Switching capacity: 128 Gbps ? Forwarding capacity: 96 Mpps |
| Designed For | P/N: CC-USBC-USBA, ICX7000-C12-RMK, ICX7000-C12-WMK, ICX7000-RMK, PCAUS, PCEURO, PCINDIA, PCJAPAN, PCSWISS-C1312G-HF, PCUK, PCUSA2, XBR-R000295 |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Routing Protocol | IGMPv2, IGMPv3, IGMP, MLD, PIM-SM, PIM-SMv6 |
| Dimensions (WxDxH) | 44 cm x 28 cm x 4.4 cm |
| Compliant Standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1 AVB, IEEE 802.1BR, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at |
| Jumbo Frame Support | 9216 bytes |
| Product Description | Ruckus ICX 8100-24P - switch - 24 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 32K entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | DHCP, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, NTP, SCP, BOOTP, Telnet, TFTP, CLI, SSH, SSH-2 |
Compatibility Information
| Designed For | P/N: CC-USBC-USBA, ICX7000-C12-RMK, ICX7000-C12-WMK, ICX7000-RMK, PCAUS, PCEURO, PCINDIA, PCJAPAN, PCSWISS-C1312G-HF, PCUK, PCUSA2, XBR-R000295 |
|---|
Dimensions & Weight
| Width | 44 cm |
|---|---|
| Depth | 28 cm |
| Height | 4.4 cm |
| Weight | 4.3 kg |
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 45 C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Storage Temperature | 70 C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Expansion / Connectivity
| Interfaces | 12 x 10/100/1000 Base-T (PoE+) RJ-45 30 W 4 x 10Gbit LAN SFP+ uplink 1 x console USB Type-C 12 x 10/100/1000 Base-T (PoE) RJ-45 15.4 W |
|---|
General
| Device Type | Switch - 24 ports - Managed |
|---|---|
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance | Switching capacity: 128 Gbps Forwarding capacity: 96 Mpps |
| Capacity | Packet buffer size: 4 MB Maximum number of VLANs: 4095 PVLANs supported: 32 STP instances: 254 ARP entries: 8192 Link aggregation groups: 128 Maximum member ports per LAG: 8 QoS priority queues per port: 8 IGMP multicast groups: 4096 MLD multicast groups: 512 |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMPv3, IGMP, MLD, PIM-SM, PIM-SMv6 |
| Remote Management Protocol | DHCP, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, NTP, SCP, BOOTP, Telnet, TFTP, CLI, SSH, SSH-2 |
| Encryption Algorithm | AES |
| Authentication Method | Secure Shell v.2 (SSH2), RADIUS, TACACS, TACACS+, RADSEC |
| Features | sFlow, EEE, CoS, DSCP/ToS mapping, QoS, traffic management, 802.1x authentication, MAC address authentication, Flexible authentication, Web authentication, DHCP snooping, DAI, IPv6 Neighbour Discovery Inspection, AAA, DoS protection, MAC address blocking, SCP, protected ports, CoA, TPM, Syslog support, Layer 2 switching, High Availability, auto-uplink (auto MDI/MDI-X), BPDU Guard, double VLAN mode, GVRP, IGMP fast leave, IGMP proxy, IGMP snooping, IGMP snooping v2, IGMP snooping v3, IPG adjustment, LFS, MAC address filtering, MAC based VLAN, MAC Learning Disable, MLD snooping, MLD snooping v2, PVST, PVST+, PIM-SM snooping, Port Loop Detection, port mirroring, Private VLAN, Q-in-Q tunnelling, RFN, Root Guard, UDLD, VLAN mapping, DHCP server, DHCP relay, RSPAN |
| Compliant Standards | IEEE 802.3az, IEEE 802.1p, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.1 AVB, IEEE 802.1BR, IEEE 802.1Q, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3at |
| RAM | 2 GB |
| Flash Memory | 8 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
|---|
Miscellaneous
| MTBF | 741,863 hours |
|---|---|
| Compliant Standards | RoHS, China RoHS, UK RoHS, FCC Part 15 B Class A, EN 55032 Class A, EN 55035, EN55024, ICES-003 Class A, VCCI Class A, EN 300 386, CNS 15936-1 Class A, KN32 Class A, KN35 Class A, TCVN 7189 Class A, TCVN 7317, EN 61000-3-2, EN 61000-3-3, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, EN 60825, EN 60950-1, IEC 60950-1, EN 62368-1, CNS 15598-1, BSMI CNS 15663, China RoHS SJ/T 11363-2006, China RoHS SJ/T 11364-2006, Directive 1907/2006/EC, Directive 2006/66/EC, Directive 2014/30/EU, Directive 2014/35/EU, Directive 30/2011/TT-BCT, Directive 94/62/EC, EU REACH, IEC 68-2-27, IEC 68-2-32, IEC 68-2-36, IEC 68-2-6, RoHS 2011/65/EU, WEEE 2012/19/EU |
Power
| Power Device | Internal power supply |
|---|---|
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Provided | 550 Watt |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
Resources
- b7b3ab64 0372 4fa3 a6c8 6aca793d78da.xml
- 867d8257 dae6 4d35 bf80 27a3ff4e0376.xml
- 9996e328 5564 4241 a9c9 572716612b1c.xml
Product information source: Dicker Data Partner Portal.
