RUCKUS 48-PRT POE+ 740W 4X10G SFP+ L3 PREM
$1,800.00
Tax included

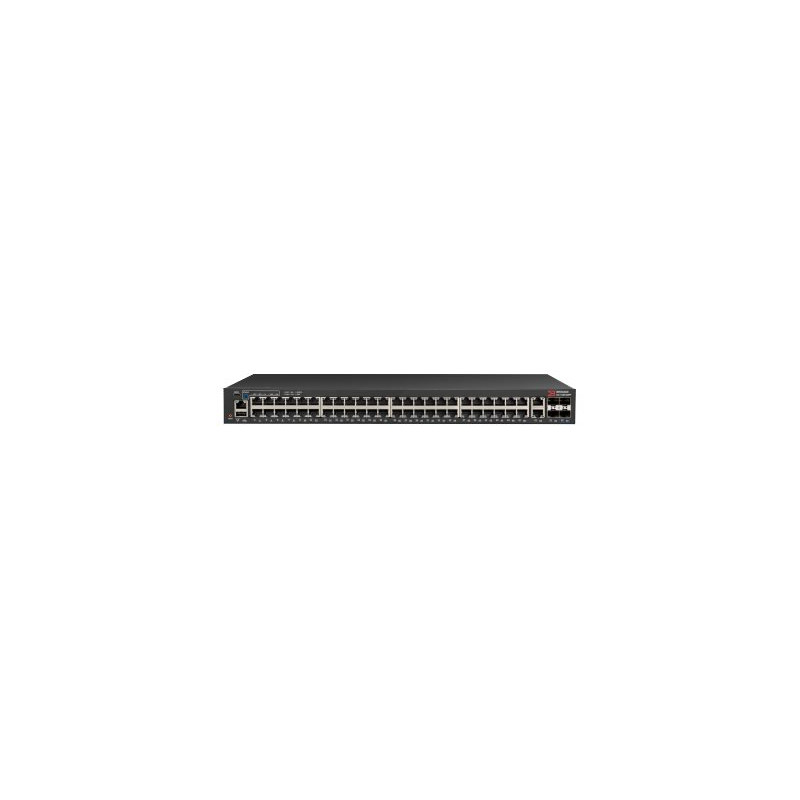

Ruckus ICX 7150-48PF - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (740 W)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Ruckus ICX 7150-48PF - Switch - L3 - Managed - 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - front and side to back - rack-mountable - PoE+ (740 W)
Specifications
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
|---|---|
| Power | AC 120/230 V (50/60 Hz) |
| Subtype | Gigabit Ethernet |
| Capacity | Virtual interfaces (VLANs): 4095 ? Spanning Tree Protocol instances: 254 ? ARP entries: 2048 ? QoS hardware queues: 8 |
| Features | Flow control, DoS attack prevention, DiffServ support, WRR queuing, IPv6 support, sFlow, VCT technology, DHCP snooping, ACL support, QoS, DHCP server, DAI, TPM, IPv4 support, DHCP relay, CoS, SP, tagged VLAN, 802.1x authentication, ToS, DSCP support, OpenFlow support, NTP |
| PoE Budget | 740 W |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Performance | Switching capacity: 180 Gbps ? Forwarding performance: 134 Mpps ? Stacking bandwidth: 320 Gbps |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, RIPng |
| Dimensions (WxDxH) | 44 cm x 37 cm x 4.365 cm |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1BR |
| Jumbo Frame Support | 9216 bytes |
| Product Description | Ruckus ICX 7150-48PF - switch - 48 ports - Managed - rack-mountable |
| Manufacturer Warranty | Limited lifetime warranty |
| MAC Address Table Size | 16384 entries |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI, SCP |
Dimensions & Weight
| Width | 44 cm |
|---|---|
| Depth | 37 cm |
| Height | 4.365 cm |
Environmental Parameters
| Min Operating Temperature | -5 C |
|---|---|
| Max Operating Temperature | 50 C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -25 C |
| Max Storage Temperature | 70 C |
| Humidity Range Storage | 0 - 95% (non-condensing) |
Expansion / Connectivity
| Interfaces | 48 x 1000Base-T RJ-45 24 ports (PoE+) / 48 ports (PoE) 2 x 1000Base-T RJ-45 uplink 1 x management RJ-45 1 x console RJ-45 1 x USB-C management 4 x Gigabit / 10Gbit LAN SFP+ uplink/stacking |
|---|
General
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
|---|---|
| Enclosure Type | Front and side to back rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 4 x 1 Gigabit / 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 740 W |
| Performance | Switching capacity: 180 Gbps Forwarding performance: 134 Mpps Stacking bandwidth: 320 Gbps |
| Capacity | Virtual interfaces (VLANs): 4095 Spanning Tree Protocol instances: 254 ARP entries: 2048 QoS hardware queues: 8 |
| MAC Address Table Size | 16384 entries |
| Jumbo Frame Support | 9216 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, RIPng |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI, SCP |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | Flow control, DoS attack prevention, DiffServ support, WRR queuing, IPv6 support, sFlow, VCT technology, DHCP snooping, ACL support, QoS, DHCP server, DAI, TPM, IPv4 support, DHCP relay, CoS, SP, tagged VLAN, 802.1x authentication, ToS, DSCP support, OpenFlow support, NTP |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1BR |
| RAM | 1 GB |
| Flash Memory | 2 GB |
Manufacturer Warranty
| Service & Support | Limited warranty - lifetime |
|---|
Miscellaneous
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN50081-1, EN55022, ICES-003, EN 61000-3-3, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, RoHS, EN 61000-6-3, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006, AS/NZS 55022, IEC 60068-2-36 |
|---|
Power
| Power Device | Internal power supply |
|---|---|
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Provided | 880 watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
Resources
- 295146f2 400b 464f 8db4 2ee4499beabc.xml
- 4644d54b 6814 4b89 9eb9 a6e89b76db03.xml
- b2aaea90 6485 4dbf 985c 703f6cdc820c.xml
Product information source: Dicker Data Partner Portal.
