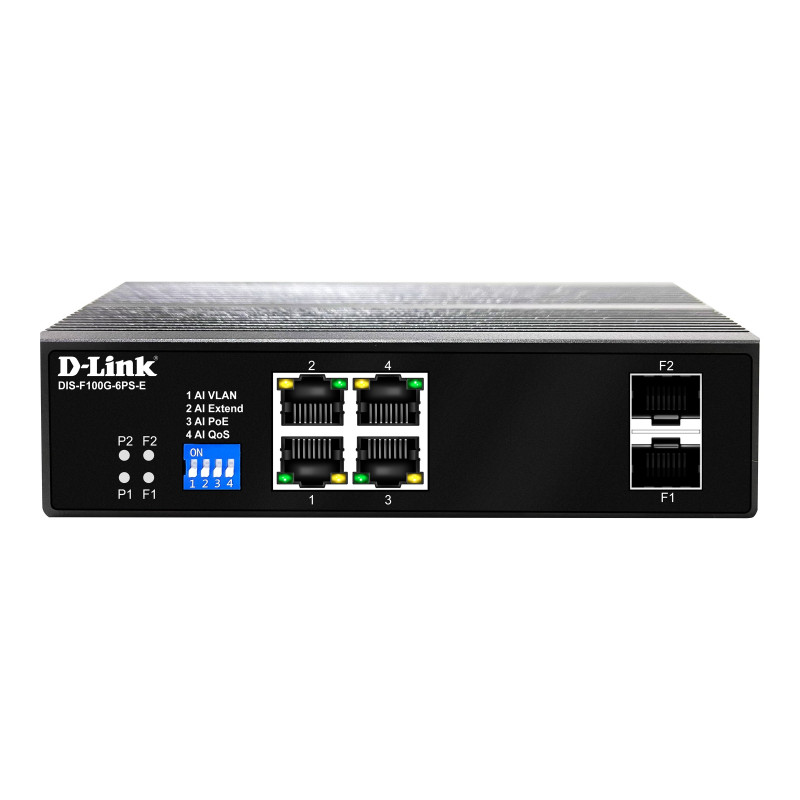

D-LINK 6P GIGABIT INDUSTRIAL POE SWITCH WITH 4 POE+ PORTS (120W) AND 2 SFP PORTS
search
  • D-LINK 6P GIGABIT INDUSTRIAL POE SWITCH WITH 4 POE+ PORTS (120W) AND 2 SFP PORTS

D-LINK 6P GIGABIT INDUSTRIAL POE SWITCH WITH 4 POE+ PORTS (120W) AND 2 SFP PORTS

$328.26
Tax included

D-Link DIS F100G-6PS-E - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP - DIN rail mountable - PoE+ (120 W)

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

D-Link DIS F100G-6PS-E - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP - DIN rail mountable - PoE+ (120 W)

Specifications

Ports4 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP
PowerDC 48 - 56 V
Weight750 g
SubtypeGigabit Ethernet
FeaturesVLAN support, auto-uplink (auto MDI/MDI-X), store and forward, QoS, fanless, built-in DIP switch, metal housing, 6KV Surge protection, port-based VLAN, PoE watchdog mode, Long Reach PoE technology
PoE Budget120 W
Device TypeSwitch - 6 ports - unmanaged
PerformanceSwitching capacity: 12 Gbps ? Forwarding rate: 8.9 Mpps
Power RedundancyYes
Dimensions (WxDxH)15.9 cm x 10.5 cm x 3.9 cm
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Product DescriptionD-Link DIS F100G-6PS-E - switch - 6 ports - unmanaged
MAC Address Table Size8K entries
Power Over Ethernet (PoE)PoE+

Dimensions & Weight

Width15.9 cm
Depth10.5 cm
Height3.9 cm
Weight750 g

Environmental Parameters

Min Operating Temperature-40 C
Max Operating Temperature75 C
Humidity Range Operating5 - 95% RH (non-condensing)
Min Storage Temperature-40 C
Max Storage Temperature85 C
Humidity Range Storage0 - 95% RH (non-condensing)

Expansion / Connectivity

Interfaces4 x 1000Base-T RJ-45 PoE+ - 30 W 2 x 1000Base-X SFP 1 x console RJ-45

General

Device TypeSwitch - 6 ports - unmanaged
Enclosure TypeDIN rail mountable
SubtypeGigabit Ethernet
Ports4 x 10/100/1000 (PoE+) + 2 x 100/1000 SFP
Power Over Ethernet (PoE)PoE+
PoE Budget120 W
PerformanceSwitching capacity: 12 Gbps Forwarding rate: 8.9 Mpps
MAC Address Table Size8K entries
FeaturesVLAN support, auto-uplink (auto MDI/MDI-X), store and forward, QoS, fanless, built-in DIP switch, metal housing, 6KV Surge protection, port-based VLAN, PoE watchdog mode, Long Reach PoE technology
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Status IndicatorsPower, link/activity

Miscellaneous

Included AccessoriesDIN-rail mounting kit, power terminal block
Compliant StandardsPlug and Play, CISPR 22 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, EMC, FCC, RoHS, FCC CFR47 Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP40, RCM, EN 55022 Class A

Power

Max Supported Qty2
Power RedundancyYes
Voltage RequiredDC 48 - 56 V

Resources

Product information source: Dicker Data Partner Portal.

DLINK
DIS-F100G-6PS-E
