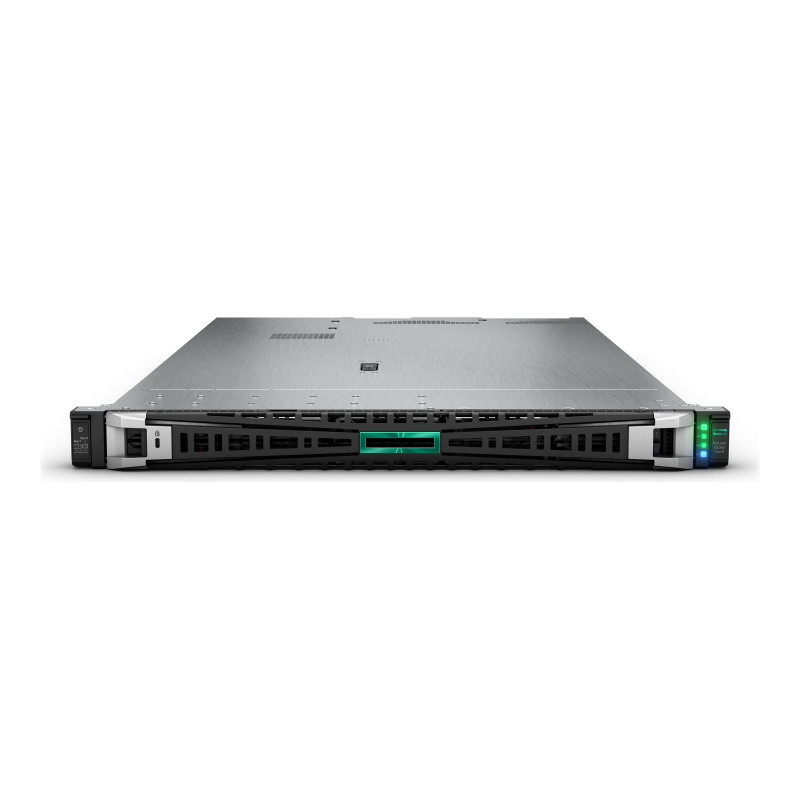

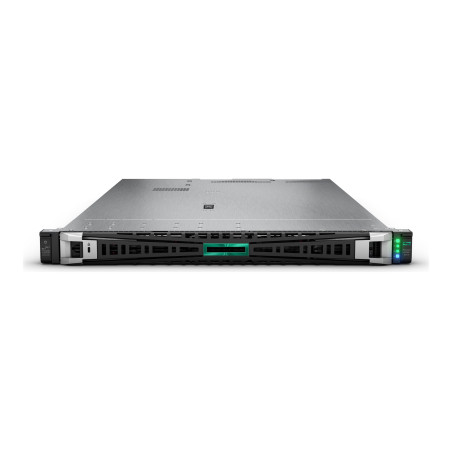

HPE DL360 G11 4514Y 2X32G 8SFF AP SVR
$15,444.55
Tax included
HPE ProLiant DL360 Gen11 - Server - rack-mountable 1U - 2-way - 1 x Xeon Silver 4514Y / up to 3.4 GHz - RAM 64 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none - Smart Choice
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
HPE ProLiant DL360 Gen11 - Server - rack-mountable 1U - 2-way - 1 x Xeon Silver 4514Y / up to 3.4 GHz - RAM 64 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none - Smart Choice
Specifications
| RAM | 64 GB (installed) / 8 TB (max) - DDR5 SDRAM - Advanced ECC |
|---|---|
| Type | Server - rack-mountable |
| Weight | 31.38 kg |
| Processor | 1 x Intel Xeon Silver 4514Y / 2 GHz (up to 3.4 GHz, (16-core) |
| Hard Drive | No HDD |
| Networking | 1GbE |
| OS Provided | No operating system |
| Cache Memory | 30 MB L3 Cache |
| Localisation | Region: Asia Pacific |
| Video Memory | 16 MB |
| Optical Storage | No optical drive |
| Power Redundancy | Optional |
| Software Included | HPE iLO Advanced, HPE OneView Standard (free download), HPE iLO Standard with Intelligent Provisioning, HPE Server UEFI |
| Dimensions (WxDxH) | 43.46 cm x 75.31 cm x 4.29 cm |
| Server Scalability | 2-way |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM); NVMe (HPE NS204i-u) |
| Cache Per Processor | 30 MB |
| Height (Rack Units) | 1U |
| Product Description | HPE ProLiant DL360 Gen11 - rack-mountable Xeon Silver 4514Y 2 GHz - 64 GB - no HDD |
| Server Storage Bays | Hot-swap 2.5" |
| Manufacturer Warranty | Limited warranty - parts and labour - 3 years - on-site |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Selling Program | HPE Smart Choice |
Cache Memory
| Installed Size | L3 Cache - 30 MB |
|---|---|
| Cache Per Processor | 30 MB |
Dimensions & Weight
| Width | 43.46 cm |
|---|---|
| Depth | 75.31 cm |
| Height | 4.29 cm |
| Weight | 31.38 kg |
Environmental Parameters
| Min Operating Temperature | 10 C |
|---|---|
| Max Operating Temperature | 35 C |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
Expansion / Connectivity
| Bays | 1 (total) / 1 (free) x external Universal Media Bay 8 (total) / 8 (free) x hot-swap 2.5" SFF |
|---|---|
| Slots | 2 (total) / 1 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |
| Interfaces | 1 x HPE iLO - Type A (1 in front) 1 x HPE iLO - RJ-45 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) 1 x VGA 4 x LAN (Gigabit Ethernet) 1 x USB 2.0 |
General
| Type | Server |
|---|---|
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | Led panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: Asia Pacific |
Graphics Controller
| Video Memory | 16 MB |
|---|---|
| Video Interfaces | VGA |
Hard Drive
| Type | No HDD |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
|---|
Miscellaneous
| Included Accessories | 7 x high performance fans |
|---|---|
| Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4 |
| Manufacturer Selling Program | HPE Smart Choice |
Monitor
| Monitor Type | None. |
|---|
Networking
| Ethernet Ports | 4 x Gigabit Ethernet |
|---|---|
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Gigabit Ethernet, Ethernet, Fast Ethernet |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | Wake on LAN (WoL), PXE support |
Operating System / Software
| OS Provided | No operating system |
|---|---|
| OS Certified | Windows, Linux |
| Software | HPE iLO Advanced, HPE OneView Standard (free download), HPE iLO Standard with Intelligent Provisioning, HPE Server UEFI |
Optical Storage
| Type | No optical drive |
|---|
Power
| Device Type | Power supply - hot-plug |
|---|---|
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
Processor / Chipset
| CPU | Intel Xeon Silver 4514Y |
|---|---|
| Clock Speed | 2 GHz |
| Max Turbo Speed | 3.4 GHz |
| Number of Cores | 16-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C741 |
RAM
| Installed Size | 64 GB (installed) / 8 TB (max) |
|---|---|
| Technology | DDR5 SDRAM - Advanced ECC |
| Effective Memory Speed | 2200 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (Total) / 30 (empty) |
| Features | HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only |
| Configuration Features | 2 x 32 GB |
Storage Controller
| Type | 1 x RAID - OCP |
|---|---|
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| Buffer Size | 4 GB |
Storage Controller (2nd)
| Type | 1 x NVMe |
|---|---|
| Storage Controller Name | HPE NS204i-u |
Sustainability Information
| ENERGY STAR Certified | Yes |
|---|---|
| ENERGY STAR Version | 4.0 |
Resources
- 00a86d3e a7d3 4cd8 8e2e 2e72e3853620.xml
- b63ca92b 5af0 4601 856f d2d71da91683.xml
- 5efefcbf 5feb 4d68 9448 d1009054f319
- 2dd3b161 1237 454d 8b97 254a5eae9d6a.xml
Product information source: Dicker Data Partner Portal.
