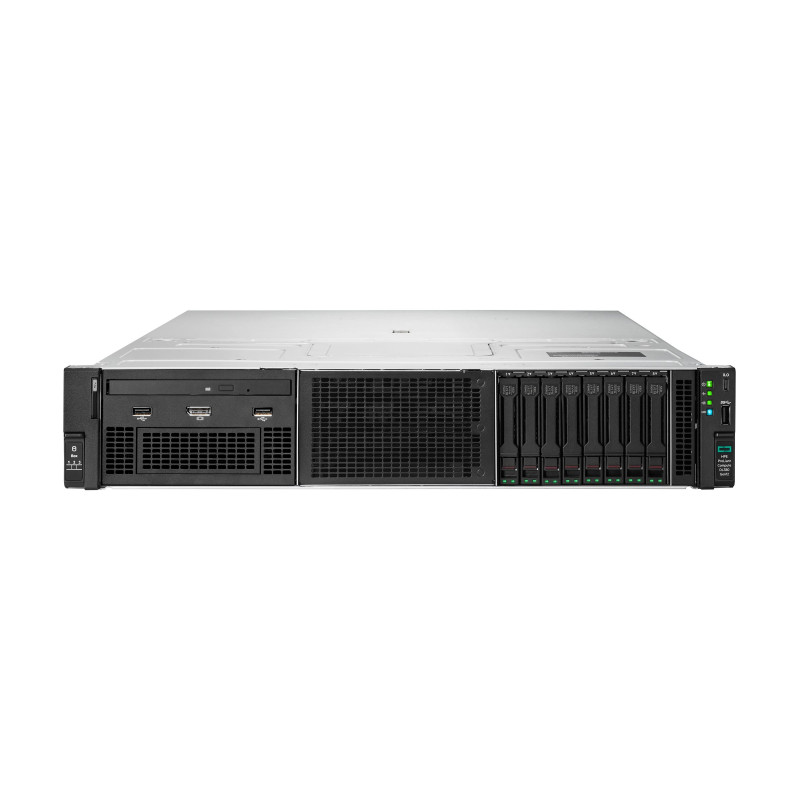

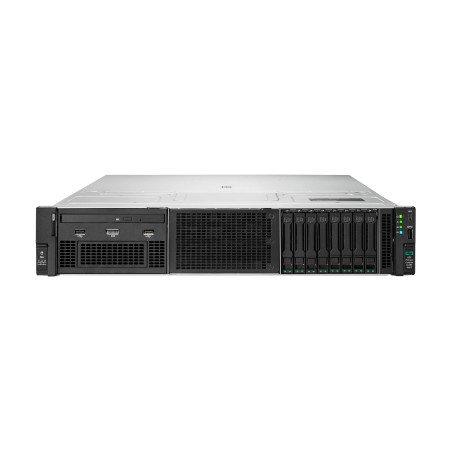

HPE DL380 G12 6505P 2x32G 8SFF AP Svr
search
  • HPE DL380 G12 6505P 2x32G 8SFF AP Svr
  • HPE DL380 G12 6505P 2x32G 8SFF AP Svr
  • HPE DL380 G12 6505P 2x32G 8SFF AP Svr
  • HPE DL380 G12 6505P 2x32G 8SFF AP Svr
  • HPE DL380 G12 6505P 2x32G 8SFF AP Svr

HPE DL380 G12 6505P 2x32G 8SFF AP Svr

$15,886.20
Tax included

HPE ProLiant Compute DL380 Gen12 - Server - rack-mountable 2U - 1-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - hot-swap 2.5" bay(s) - no HDD - no OS - monitor: none

Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPE ProLiant Compute DL380 Gen12 - Server - rack-mountable 2U - 1-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - hot-swap 2.5" bay(s) - no HDD - no OS - monitor: none

Specifications

RAM64 GB (installed) / 8 TB (max) - DDR5 SDRAM - Advanced ECC
TypeServer - rack-mountable
Processor1 x Intel Xeon 6505P / 2.2 GHz (up to 4.1 GHz, (12-core)
Hard DriveNo HDD
OS ProvidedNo operating system
Cache Memory48 MB L3 Cache
LocalisationRegion: Asia Pacific
Video Memory16 MB
Optical StorageNo optical drive
Power RedundancyYes
Software IncludedHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced
Server Scalability1-way
Storage ControllerRAID (HPE NS204i-u v2) - OCP 3.0 (HPE MR416i-o Gen11 SPDM)
Cache Per Processor48 MB
Height (Rack Units)2U
Product DescriptionHPE ProLiant Compute DL380 Gen12 - rack-mountable Xeon 6505P 2.2 GHz - 64 GB - no HDD
Server Storage BaysHot-swap 2.5"
Manufacturer WarrantyLimited warranty - parts and labour - 3 years - on-site
Environmental StandardsENERGY STAR Qualified
Processor Main FeaturesIntel Turbo Boost Technology 2, Hyper-Threading Technology, 150W TDP, 24 Threads

Cache Memory

Installed SizeL3 Cache - 48 MB
Cache Per Processor48 MB

Environmental Parameters

Min Operating Temperature10 C
Max Operating Temperature35 C
Humidity Range Operating8 - 90% RH (non-condensing)

Expansion / Connectivity

Bays8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) 1 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0
Interfaces1 x USB-C (1 in front) (HPE iLO Service Port) 3 x USB 3.2 Gen 1 (1 front, 2 rear) 2 x USB 3.0 (2 internal) 1 x HPE iLO - RJ-45 (1 rear) (management port) 1 x VGA (1 rear)

General

TypeServer
Product Form FactorRack-mountable - 2U
Built-in DevicesLed panel
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Server Scalability1-way
Hot-Swap Bays Qty8
LocalisationRegion: Asia Pacific

Graphics Controller

Video Memory16 MB
Video InterfacesVGA

Hard Drive

TypeNo HDD

Manufacturer Warranty

Service & SupportLimited warranty - parts and labour - 3 years - on-site

Miscellaneous

Included Accessories6 high performance fans
Compliant StandardsACPI 6.5, PCIe 5.0, SMBIOS 3.7, UEFI 2.10, UEFI Class 3, Redfish API, AES, TLS v1.2, DMTF, APML, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, WEEE 2002/95/EC, ErP Lot 9, IPv6 Ready

Monitor

Monitor TypeNone.

Networking

Ethernet ControllerBroadcom BCM5719

Operating System / Software

OS ProvidedNo operating system
SoftwareHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced

Optical Storage

TypeNo optical drive

Power

Device TypePower supply - hot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Installed Qty2
Max Supported Qty2
Power Provided1000 Watt
80 PLUS Certification80 PLUS Titanium

Processor / Chipset

CPUIntel Xeon 6505P
Clock Speed2.2 GHz
Max Turbo Speed4.1 GHz
Number of Cores12-core
CPU Qty1
Max CPU Qty1
CPU UpgradabilityUpgradable
Processor Main FeaturesIntel Turbo Boost Technology 2, Hyper-Threading Technology, 150W TDP, 24 Threads

RAM

Installed Size64 GB (installed) / 8 TB (max)
TechnologyDDR5 SDRAM - Advanced ECC
Effective Memory Speed6400 MT/s
Rated Memory Speed6400 MT/s
Form FactorDIMM 288-pin
Slots32 (Total) / 30 (empty)
FeaturesRegistered, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
Configuration Features2 x 32 GB

Storage Controller

Type1 x RAID - OCP 3.0
Controller Interface TypeHPE NS204i-u v2
Storage Controller NameHPE MR416i-o Gen11 SPDM
Channel Qty16
Buffer Size8 GB

Sustainability Information

ENERGY STAR CertifiedYes
ENERGY STAR Version4.0

Resources

Product information source: Dicker Data Partner Portal.

Hewlett Packard Enterprise
P91139-375
