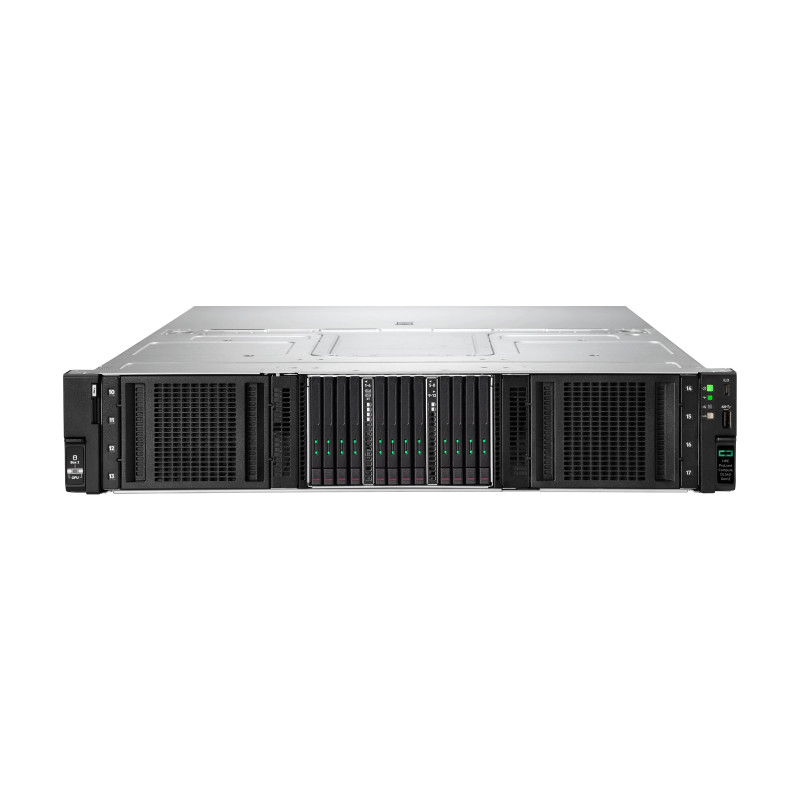

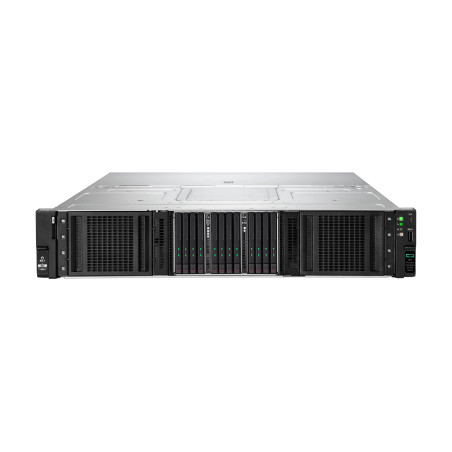

HPE DL340 G12 6505P 2x32G 8SFF AP Svr
$11,259.60
Tax included
HPE ProLiant Compute DL340 Gen12 - Server - rack-mountable 2U - 1-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - no OS - monitor: none
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
HPE ProLiant Compute DL340 Gen12 - Server - rack-mountable 2U - 1-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - no OS - monitor: none
Specifications
| RAM | 64 GB (installed) / 4 TB (max) - DDR5 SDRAM |
|---|---|
| Type | Server - rack-mountable |
| Weight | 17.6 kg |
| Processor | 1 x Intel Xeon 6505P / 2.2 GHz (up to 4.1 GHz, (12-core) |
| Hard Drive | No HDD |
| OS Provided | No operating system |
| Cache Memory | 48 MB L3 Cache |
| Localisation | Region: Asia Pacific |
| Video Memory | 16 MB |
| Optical Storage | No optical drive |
| Power Redundancy | Yes |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Compute Ops Management (subscription included) |
| Dimensions (WxDxH) | 44.8 cm x 63.95 cm x 8.75 cm |
| Server Scalability | 1-way |
| Storage Controller | RAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP 3.0 (HPE MR408i-o Gen11 SPDM) |
| Cache Per Processor | 48 MB |
| Height (Rack Units) | 2U |
| Product Description | HPE ProLiant Compute DL340 Gen12 - rack-mountable Xeon 6505P 2.2 GHz - 64 GB - no HDD |
| Server Storage Bays | Hot-swap 2.5" |
| Manufacturer Warranty | Limited warranty - parts and labour - 3 years - on-site |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 24 Threads, 150W TDP |
Cache Memory
| Installed Size | L3 Cache - 48 MB |
|---|---|
| Cache Per Processor | 48 MB |
Dimensions & Weight
| Width | 44.8 cm |
|---|---|
| Depth | 63.95 cm |
| Height | 8.75 cm |
| Weight | 17.6 kg |
Environmental Parameters
| Min Operating Temperature | 10 C |
|---|---|
| Max Operating Temperature | 35 C |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
Expansion / Connectivity
| Bays | 8 (total) / 6 (free) x hot-swap 2.5" SFF |
|---|---|
| Slots | 3 (total) / 3 (free) x PCIe 5.0 x16 1 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0 (slot A) |
| Interfaces | 1 x HPE iLO - Type C (1 in front) (service port) 1 x management (Gigabit Ethernet) - RJ-45 (1 front) (HPE iLO Service Port) 4 x USB 3.2 Gen 1 - Type A (1 front, 2 rear, 1 internal) 1 x VGA (1 rear) |
General
| Type | Server |
|---|---|
| Product Form Factor | Rack-mountable - 2U |
| Built-in Devices | Led panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 8 |
| Localisation | Region: Asia Pacific |
Graphics Controller
| Video Memory | 16 MB |
|---|---|
| Video Interfaces | VGA |
Hard Drive
| Type | No HDD |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - parts and labour - 3 years - on-site |
|---|
Miscellaneous
| Compliant Standards | ACPI 6.4, Energy Star, SMBIOS 3.4, Redfish API, AES, Triple DES, TLS v1.2, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4 |
|---|
Monitor
| Monitor Type | None. |
|---|
Networking
| Remote Management Controller | Integrated Lights-Out 7 |
|---|
Operating System / Software
| OS Provided | No operating system |
|---|---|
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Compute Ops Management (subscription included) |
Optical Storage
| Type | No optical drive |
|---|
Power
| Device Type | Power supply - hot-plug |
|---|---|
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Provided | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Titanium |
Processor / Chipset
| CPU | Intel Xeon 6505P |
|---|---|
| Clock Speed | 2.2 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology, 24 Threads, 150W TDP |
RAM
| Installed Size | 64 GB (installed) / 4 TB (max) |
|---|---|
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 6400 MT/s |
| Rated Memory Speed | 6400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 16 (Total) / 14 (empty) |
| Features | HPE SmartMemory, registered |
| Configuration Features | 2 x 32 GB |
Storage Controller
| Type | 1 x RAID - OCP 3.0 |
|---|---|
| Controller Interface Type | Serial ATA-600 / SAS 3.0 / PCI Express (NVMe) |
| Storage Controller Name | HPE MR408i-o Gen11 SPDM |
| Channel Qty | 8 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Buffer Size | 4 GB |
Resources
- dfab98a5 eff6 4ac9 be47 dd015aa3d619.xml
- f35e33c8 d5bb 4731 9b6a 2b30905cbc6e.xml
- 5cce0688 eb3e 4f54 92ab 22a11497bfb7.xml
Product information source: Dicker Data Partner Portal.
