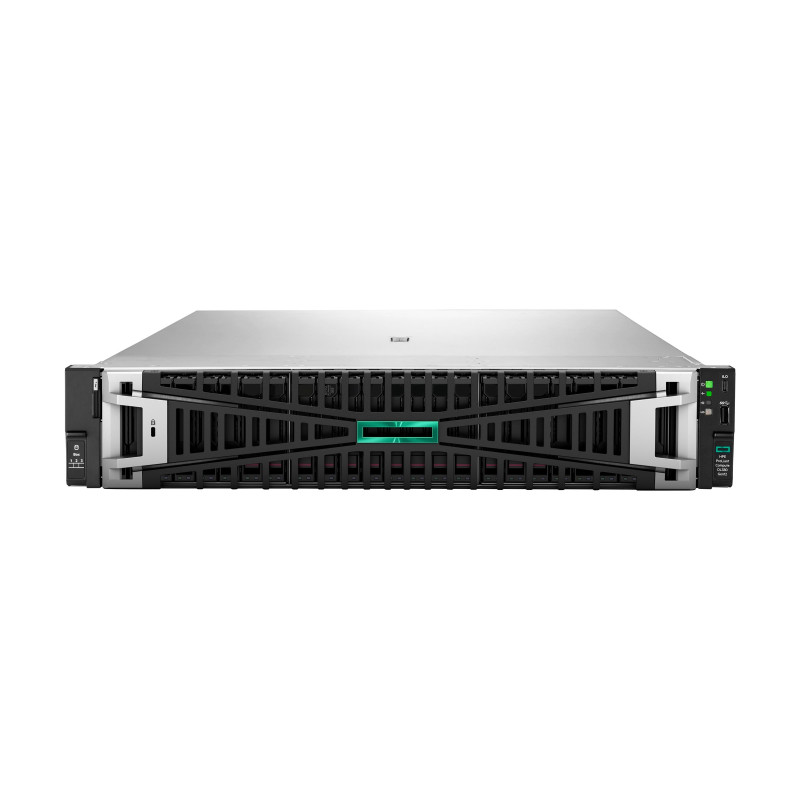

HPE DL380 G12 6505P 2x32G 8SFF SSD Svr

$14,523.30
Tax included

HPE ProLiant Compute DL380 Gen12 - Server - rack-mountable 2U - 2-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - monitor: none

Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPE ProLiant Compute DL380 Gen12 - Server - rack-mountable 2U - 2-way - 1 x Xeon 6505P / up to 4.1 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 2 x 480 GB - monitor: none

Specifications

RAM64 GB (installed) / 8 TB (max) - DDR5 SDRAM
TypeServer - rack-mountable
Weight18 kg
Processor1 x Intel Xeon 6505P / 2.2 GHz (up to 4.1 GHz, (12-core)
Hard Drive2 x SSD 480 GB
Cache Memory48 MB L3 Cache
LocalisationRegion: Asia Pacific
Video Memory16 MB
Optical StorageNo optical drive
Power RedundancyYes
Software IncludedHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Compute Ops Management (subscription included)
Dimensions (WxDxH)44.8 cm x 72.7 cm x 8.75 cm
Server Scalability2-way
Storage ControllerRAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP 3.0 (HPE MR408i-o Gen11 SPDM)
Cache Per Processor48 MB
Height (Rack Units)2U
Product DescriptionHPE ProLiant Compute DL380 Gen12 - rack-mountable Xeon 6505P 2.2 GHz - 64 GB - SSD 2 x 480 GB
Server Storage BaysHot-swap 2.5"
Manufacturer WarrantyLimited warranty - parts and labour - 3 years - on-site
Processor Main FeaturesIntel Turbo Boost Technology 2, Hyper-Threading Technology, 24 Threads, 150W TDP

Cache Memory

Installed SizeL3 Cache - 48 MB
Cache Per Processor48 MB

Dimensions & Weight

Width44.8 cm
Depth72.7 cm
Height8.75 cm
Weight18 kg

Environmental Parameters

Min Operating Temperature10 C
Max Operating Temperature35 C
Humidity Range Operating8 - 90% RH (non-condensing)

Expansion / Connectivity

Bays8 (total) / 6 (free) x hot-swap 2.5" SFF
Slots1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x16 mode) 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) 1 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0
Interfaces1 x USB-C (1 in front) (HPE iLO Service Port) 3 x USB 3.2 Gen 1 (1 front, 2 rear) 2 x USB 3.0 (2 internal) 1 x HPE iLO - RJ-45 (1 rear) (management port) 1 x VGA (1 rear)

General

TypeServer
Product Form FactorRack-mountable - 2U
Built-in DevicesLed panel
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Server Scalability2-way
Hot-Swap Bays Qty8
LocalisationRegion: Asia Pacific

Graphics Controller

Video Memory16 MB
Video InterfacesVGA

Hard Drive

TypeSSD
Capacity2 x 480 GB

Manufacturer Warranty

Service & SupportLimited warranty - parts and labour - 3 years - on-site

Miscellaneous

Included Accessories4 standard fans
Compliant StandardsACPI 6.5, SMBIOS 3.7, Redfish API, TLS v1.2, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, UEFI 2.10, UEFI Class 3, WEEE 2002/95/EC, APML

Monitor

Monitor TypeNone.

Networking

Remote Management ControllerIntegrated Lights-Out 7

Operating System / Software

SoftwareHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE Compute Ops Management (subscription included)

Optical Storage

TypeNo optical drive

Power

Device TypePower supply - hot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Installed Qty2
Max Supported Qty2
Power Provided800 Watt
80 PLUS Certification80 PLUS Platinum

Processor / Chipset

CPUIntel Xeon 6505P
Clock Speed2.2 GHz
Max Turbo Speed4.1 GHz
Number of Cores12-core
CPU Qty1
Max CPU Qty2
CPU UpgradabilityUpgradable
Processor Main FeaturesIntel Turbo Boost Technology 2, Hyper-Threading Technology, 24 Threads, 150W TDP

RAM

Installed Size64 GB (installed) / 8 TB (max)
TechnologyDDR5 SDRAM
Form FactorDIMM 288-pin
Slots32 (Total) / 30 (empty)
FeaturesHPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only
Configuration Features2 x 32 GB

Storage Controller

Type1 x RAID - OCP 3.0
Controller Interface TypeSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Storage Controller NameHPE MR408i-o Gen11 SPDM
Channel Qty8
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size4 GB
