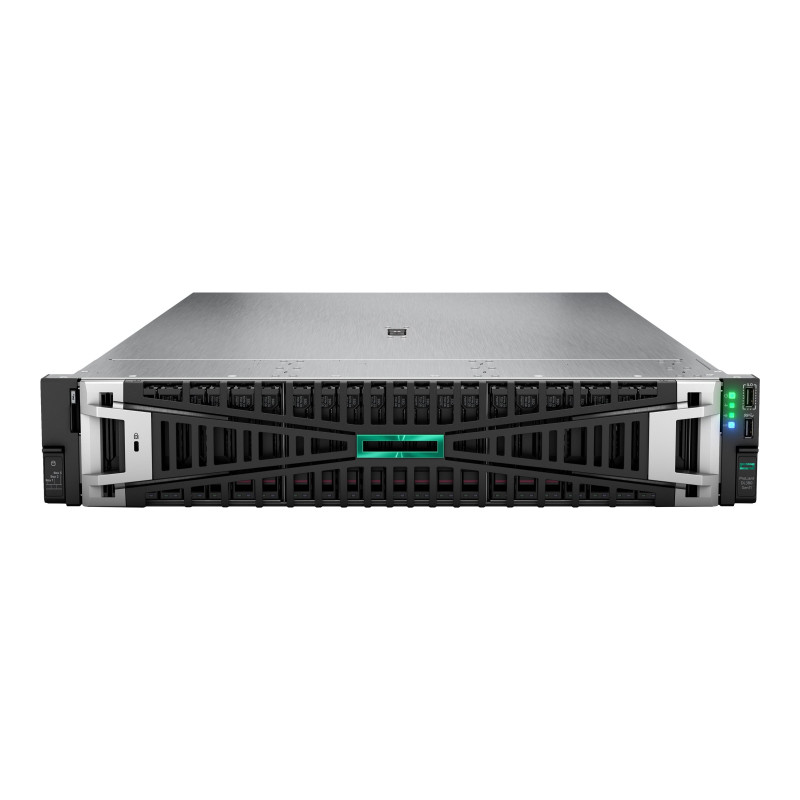

HPE DL380 G11 6526Y 4x32G 8SFF HDD Svr
search
  • HPE DL380 G11 6526Y 4x32G 8SFF HDD Svr

HPE DL380 G11 6526Y 4x32G 8SFF HDD Svr

$23,142.90
Tax included

HPE ProLiant DL380 Gen11 - Server - rack-mountable 2U - 2-way - 1 x Xeon Gold 6526Y / up to 3.9 GHz - RAM 128 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - HDD 5 x 600 GB - Gigabit Ethernet - no OS - monitor: none

Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPE ProLiant DL380 Gen11 - Server - rack-mountable 2U - 2-way - 1 x Xeon Gold 6526Y / up to 3.9 GHz - RAM 128 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - HDD 5 x 600 GB - Gigabit Ethernet - no OS - monitor: none

Specifications

RAM128 GB (installed) / 8 TB (max) - DDR5 SDRAM - Advanced ECC
TypeServer - rack-mountable
Weight16 kg
Processor1 x Intel Xeon Gold 6526Y / 2.8 GHz (up to 3.9 GHz, (16-core)
Hard Drive5 x HDD 600 GB
Networking1GbE
OS ProvidedNo operating system
Cache Memory37.5 MB L3 Cache
LocalisationRegion: Asia Pacific
Video Memory16 MB
Optical StorageNo optical drive
Power RedundancyOptional
Software IncludedHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced
Dimensions (WxDxH)44.8 cm x 72.7 cm x 8.75 cm
Server Scalability2-way
Storage ControllerRAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM)
Cache Per Processor37.5 MB
Height (Rack Units)2U
Product DescriptionHPE ProLiant DL380 Gen11 - rack-mountable Xeon Gold 6526Y 2.8 GHz - 128 GB - HDD 5 x 600 GB
Server Storage BaysHot-swap 2.5"
Environmental StandardsENERGY STAR Qualified
Processor Main Features32 Threads

Cache Memory

Installed SizeL3 Cache - 37.5 MB
Cache Per Processor37.5 MB

Dimensions & Weight

Width44.8 cm
Depth72.7 cm
Height8.75 cm
Weight16 kg

Environmental Parameters

Min Operating Temperature10 C
Max Operating Temperature35 C
Humidity Range Operating8 - 90% RH (non-condensing)

Expansion / Connectivity

Bays8 (total) / 6 (free) x hot-swap 2.5" SFF
Slots1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) 2 (total) / 0 (free) x Open Compute Project mezzanine (OCP) 3.0
Interfaces1 x USB 3.0 (1 in front) (HPE iLO Service Port) 4 x USB 3.0 (2 rear, 2 internal) 1 x HPE iLO - RJ-45 (1 rear) 1 x VGA (1 rear) 4 x LAN (Gigabit Ethernet) - RJ-45

General

TypeServer
Product Form FactorRack-mountable - 2U
Built-in DevicesLed panel
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Server Scalability2-way
Hot-Swap Bays Qty8
LocalisationRegion: Asia Pacific

Graphics Controller

Video Memory16 MB
Video InterfacesVGA

Hard Drive

TypeHDD
Capacity5 x 600 GB

Miscellaneous

Included Accessories4 standard fans
Compliant StandardsACPI 6.4, PCIe 5.0, SMBIOS 3.4, Redfish API, AES, Triple DES, TLS v1.2, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, DMTF, ErP Lot 9, FIPS 140-2, WEEE 2002/95/EC

Monitor

Monitor TypeNone.

Networking

Interface (Bus) TypeOpen Compute Project mezzanine (OCP) 3.0
Ethernet Ports4 x Gigabit Ethernet
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet

Operating System / Software

OS ProvidedNo operating system
SoftwareHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced

Optical Storage

TypeNo optical drive

Power

Device TypePower supply - hot-plug
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Installed Qty2
Max Supported Qty2
Voltage RequiredAC 100-240 V
Power Provided800 Watt
80 PLUS Certification80 PLUS Platinum

Processor / Chipset

CPUIntel Xeon Gold 6526Y
Clock Speed2.8 GHz
Max Turbo Speed3.9 GHz
Number of Cores16-core
CPU Qty1
Max CPU Qty2
CPU UpgradabilityUpgradable
Processor Main Features32 Threads
Chipset TypeIntel C741

RAM

Installed Size128 GB (installed) / 8 TB (max)
TechnologyDDR5 SDRAM - Advanced ECC
Effective Memory Speed4800 MT/s
Rated Memory Speed5600 MT/s
Form FactorDIMM 288-pin
Slots32 (Total) / 28 (empty)
FeaturesHPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only
Configuration Features4 x 32 GB

Storage Controller

Type1 x RAID - OCP
Controller Interface TypeSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Storage Controller NameHPE MR408i-o Gen11 SPDM
Channel Qty8
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size4 GB

Sustainability Information

ENERGY STAR CertifiedYes
ENERGY STAR Version3.0

Resources

Product information source: Dicker Data Partner Portal.

Hewlett Packard Enterprise
P87449-375
