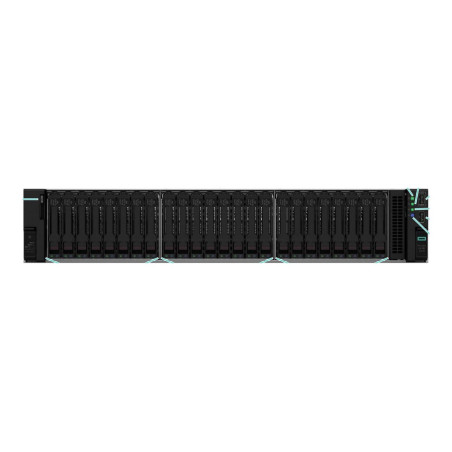

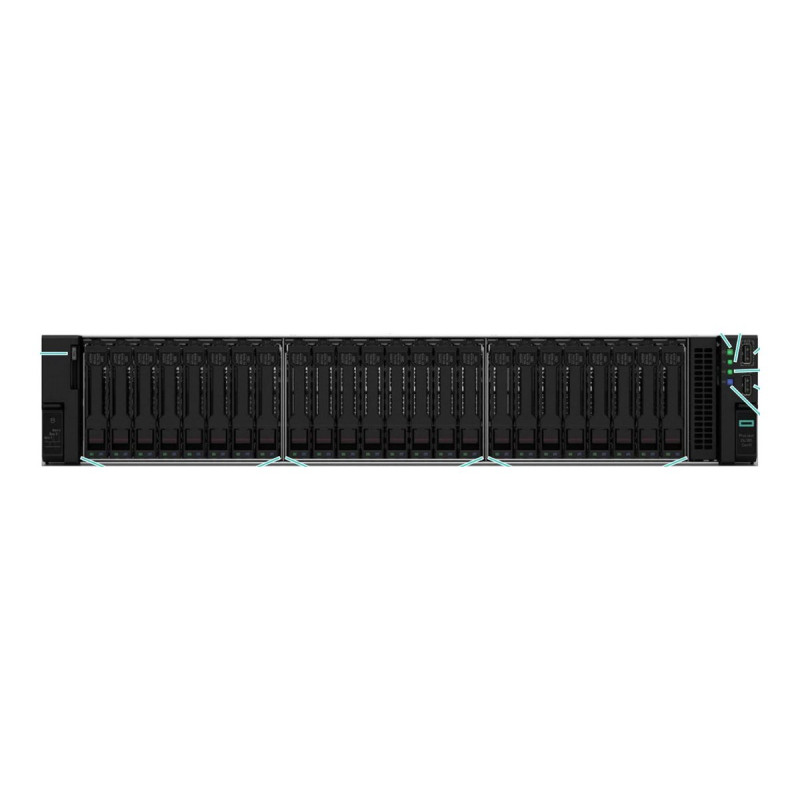

HPE DL385 G11 9135 2x32G 8SFF SSD AP Svr
search
  • HPE DL385 G11 9135 2x32G 8SFF SSD AP Svr
  • HPE DL385 G11 9135 2x32G 8SFF SSD AP Svr

HPE DL385 G11 9135 2x32G 8SFF SSD AP Svr

$26,232.80
Tax included

HPE ProLiant DL385 Gen11 - Server - rack-mountable 1U - 2-way - 1 x EPYC 9135 / up to 4.3 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 4 x 960 GB - no OS - monitor: none

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPE ProLiant DL385 Gen11 - Server - rack-mountable 1U - 2-way - 1 x EPYC 9135 / up to 4.3 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - SSD 4 x 960 GB - no OS - monitor: none

Specifications

RAM64 GB (installed) / 6 TB (max) - DDR5 SDRAM - Advanced ECC
TypeServer - rack-mountable
Weight42.82 kg
Processor1 x AMD EPYC 9135 / 3.65 GHz (up to 4.3 GHz, (16-core)
Hard Drive4 x SSD 960 GB
OS ProvidedNo operating system
Cache Memory64 MB L3 Cache
LocalisationRegion: Asia Pacific
Video Memory16 MB
Optical StorageNo optical drive
Power RedundancyYes
Software IncludedHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced
Dimensions (WxDxH)8.75 cm x 43.47 cm x 64.64 cm
Server Scalability2-way
Storage ControllerRAID OCP (HPE MR408i-o Gen11 SPDM)
Cache Per Processor64 MB
Height (Rack Units)1U
Product DescriptionHPE ProLiant DL385 Gen11 - rack-mountable EPYC 9135 3.65 GHz - 64 GB - SSD 4 x 960 GB
Server Storage BaysHot-swap 2.5"
Environmental StandardsENERGY STAR Qualified

Cache Memory

Installed SizeL3 Cache - 64 MB
Cache Per Processor64 MB

Dimensions & Weight

Width8.75 cm
Depth43.47 cm
Height64.64 cm
Weight42.82 kg

Dimensions & Weight (Shipping)

Shipping Width99.8 cm
Shipping Depth60 cm
Shipping Height27 cm

Environmental Parameters

Min Operating Temperature10 C
Max Operating Temperature35 C
Humidity Range Operating8 - 90% RH (non-condensing)

Expansion / Connectivity

Bays8 (total) / 6 (free) x hot-swap 2.5" SFF
Slots1 (total) / 1 (free) x PCIe 5.0 x16 (full-height, half-length) 2 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0
Interfaces1 x HPE iLO (1 in front) (service port) 5 x USB 3.1 Gen 1 (1 front, 2 rear, 2 internal) 1 x VGA

General

TypeServer
Product Form FactorRack-mountable - 1U
Built-in DevicesLed panel
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Server Scalability2-way
Hot-Swap Bays Qty8
LocalisationRegion: Asia Pacific

Graphics Controller

Video Memory16 MB
Video InterfacesVGA

Hard Drive

TypeSSD
Capacity4 x 960 GB

Miscellaneous

Compliant StandardsACPI 6.1, PCIe 4.0, SMBIOS 3.1, UEFI 2.7, Redfish API, AES, Triple DES, TLS v1.2, DMTF, APML 1.0, Active Directory v1.0, ASHRAE Class A3, ASHRAE Class A4, WEEE 2002/95/EC, ErP Lot 9, FIPS 140-3

Monitor

Monitor TypeNone.

Networking

Remote Management ProtocolIPMI 2.0, SNMP 3
Remote Management ControllerIntegrated Lights-Out 6
FeaturesWake on LAN (WoL), PXE support

Operating System / Software

OS ProvidedNo operating system
SoftwareHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced

Optical Storage

TypeNo optical drive

Power

Device TypePower supply - hot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Installed Qty2
Max Supported Qty2
Voltage RequiredAC 100-120/200-240 V
Power Provided1600 Watt

Processor / Chipset

CPUAMD EPYC 9135
Clock Speed3.65 GHz
Max Turbo Speed4.3 GHz
Number of Cores16-core
CPU Qty1
Max CPU Qty2
CPU UpgradabilityUpgradable

RAM

Installed Size64 GB (installed) / 6 TB (max)
TechnologyDDR5 SDRAM - Advanced ECC
Effective Memory Speed6400 MT/s
Rated Memory Speed6400 MT/s
Form FactorDIMM 288-pin
Slots24 (Total) / 22 (empty)
FeaturesHPE SmartMemory, registered, slots 13 - 24 are available in two-processor configuration only
Configuration Features2 x 32 GB

Storage Controller

Type1 x RAID - OCP
Storage Controller NameHPE MR408i-o Gen11 SPDM
Channel Qty8
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size4 GB

Sustainability Information

ENERGY STAR CertifiedYes
ENERGY STAR Version4.0

Resources

Product information source: Dicker Data Partner Portal.

Hewlett Packard Enterprise
P85586-375
