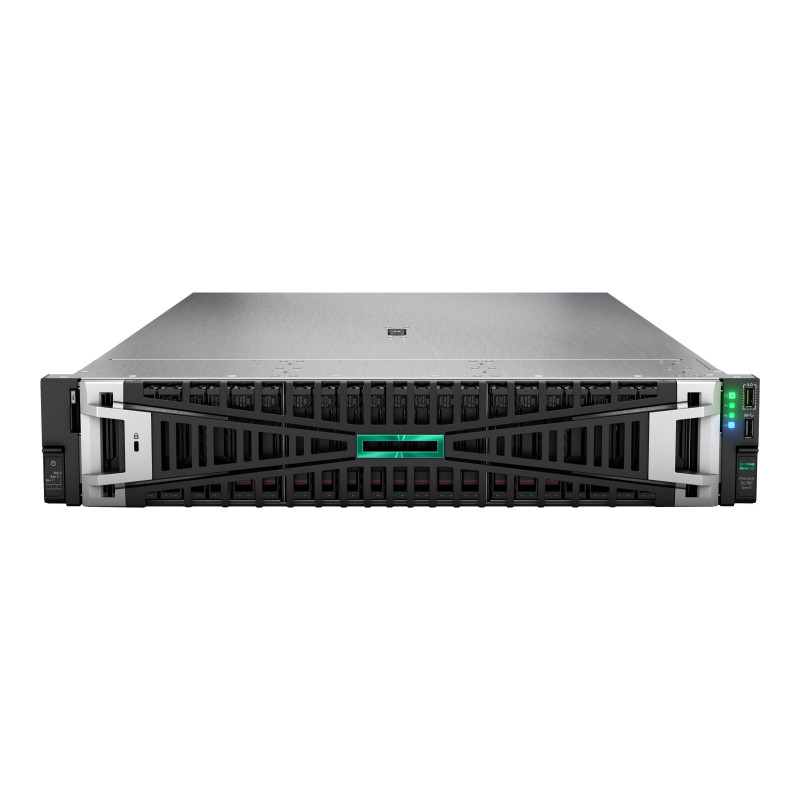

HPE DL380 G11 6526Y 2x32G 8SFF SSD Svr
search
  • HPE DL380 G11 6526Y 2x32G 8SFF SSD Svr

HPE DL380 G11 6526Y 2x32G 8SFF SSD Svr

$18,400.80
Tax included

HPE ProLiant DL380 Gen11 - Server - rack-mountable 2U - 2-way - 1 x Xeon Gold 6526Y / up to 3.9 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none

Quantity
Last items in stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPE ProLiant DL380 Gen11 - Server - rack-mountable 2U - 2-way - 1 x Xeon Gold 6526Y / up to 3.9 GHz - RAM 64 GB - SATA/SAS/NVMe - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - no OS - monitor: none

Specifications

RAM64 GB (installed) / 8 TB (max) - DDR5 SDRAM
TypeServer - rack-mountable
Weight41.32 kg
Processor1 x Intel Xeon Gold 6526Y / 2.8 GHz (up to 3.9 GHz, (16-core)
Hard DriveNo HDD
Networking1GbE, 2.5GbE, 5GbE, 10GbE
OS ProvidedNo operating system
Cache Memory37.5 MB L3 Cache
LocalisationRegion: Asia Pacific
Video Memory16 MB
Optical StorageNo optical drive
Power RedundancyYes
Dimensions (WxDxH)60 cm x 99.8 cm x 27.3 cm
Server Scalability2-way
Storage ControllerRAID (SATA 6Gb/s / SAS 4.0 / PCI Express (NVMe)) - OCP (HPE MR416i-o Gen11 SPDM); NVMe (HPE NS204i-u Gen11)
Cache Per Processor37.5 MB
Height (Rack Units)2U
Product DescriptionHPE ProLiant DL380 Gen11 - rack-mountable Xeon Gold 6526Y 2.8 GHz - 64 GB - no HDD
Server Storage BaysHot-swap 2.5"
Manufacturer WarrantyLimited warranty - parts and labour - 3 years - on-site - response time: next business day

Cache Memory

Installed SizeL3 Cache - 37.5 MB
Cache Per Processor37.5 MB

Dimensions & Weight

Width60 cm
Depth99.8 cm
Height27.3 cm
Weight41.32 kg

Environmental Parameters

Min Operating Temperature10 C
Max Operating Temperature35 C
Humidity Range Operating8 - 90% RH (non-condensing)

Expansion / Connectivity

Bays8 (total) / 6 (free) x hot-swap 2.5" SFF
Slots1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode) 2 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0
Interfaces1 x USB 3.0 (1 in front) (HPE iLO Service Port) 4 x USB 3.0 (2 rear, 2 internal) 1 x HPE iLO - RJ-45 (1 rear) 1 x VGA (1 rear) 2 x LAN (10Gigabit Ethernet)

General

TypeServer
Product Form FactorRack-mountable - 2U
Built-in DevicesLed panel
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Server Scalability2-way
Hot-Swap Bays Qty8
LocalisationRegion: Asia Pacific

Graphics Controller

Video Memory16 MB
Video InterfacesVGA

Hard Drive

TypeNo HDD

Manufacturer Warranty

Service & SupportLimited warranty - parts and labour - 3 years - on-site - response time: next business day

Miscellaneous

Included Accessories6 high performance fans
Compliant StandardsAES, TLS v1.2, ACPI 6.3, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, WEEE 2002/95/EC, FIPS 140-2

Monitor

Monitor TypeNone.

Networking

Ethernet Ports2 x 10 Gigabit Ethernet
Ethernet ControllerBroadcom BCM57416
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management ProtocolSNMP 3, IPMI 2.0, SMASH CLP
Remote Management ControllerIntegrated Lights-Out 6
FeaturesWake on LAN (WoL), PXE support
Compliant StandardsOCP 3.0

Operating System / Software

OS ProvidedNo operating system
OS CertifiedMicrosoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, Canonical Ubuntu, Oracle Linux, Citrix

Optical Storage

TypeNo optical drive

Power

Device TypePower supply - hot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Installed Qty2
Max Supported Qty2
Voltage RequiredAC 100-240 V
Power Provided800 Watt
80 PLUS Certification80 PLUS Platinum

Processor / Chipset

CPUIntel Xeon Gold 6526Y
Clock Speed2.8 GHz
Max Turbo Speed3.9 GHz
Number of Cores16-core
CPU Qty1
Max CPU Qty2
CPU UpgradabilityUpgradable
Chipset TypeIntel C741

RAM

Installed Size64 GB (installed) / 8 TB (max)
TechnologyDDR5 SDRAM
Effective Memory Speed5200 MT/s
Rated Memory Speed5200 MT/s
Form FactorDIMM 288-pin
Slots32 (Total) / 30 (empty)
FeaturesHPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only
Configuration Features2 x 32 GB

Storage Controller

Type1 x RAID - OCP
Controller Interface TypeSATA 6Gb/s / SAS 4.0 / PCI Express (NVMe)
Storage Controller NameHPE MR416i-o Gen11 SPDM
Channel Qty16
RAID LevelRAID 0, RAID 1, RAID 5, RAID 10
Buffer Size8 GB

Storage Controller (2nd)

TypeNVMe
Controller Interface TypeHPE NS204i-u Gen11

Resources

Product information source: Dicker Data Partner Portal.

Hewlett Packard Enterprise
P84560-375
