HPE DL320 G11 3508U 1X16G 4LFF HDD SVR

$7,108.20
Tax included

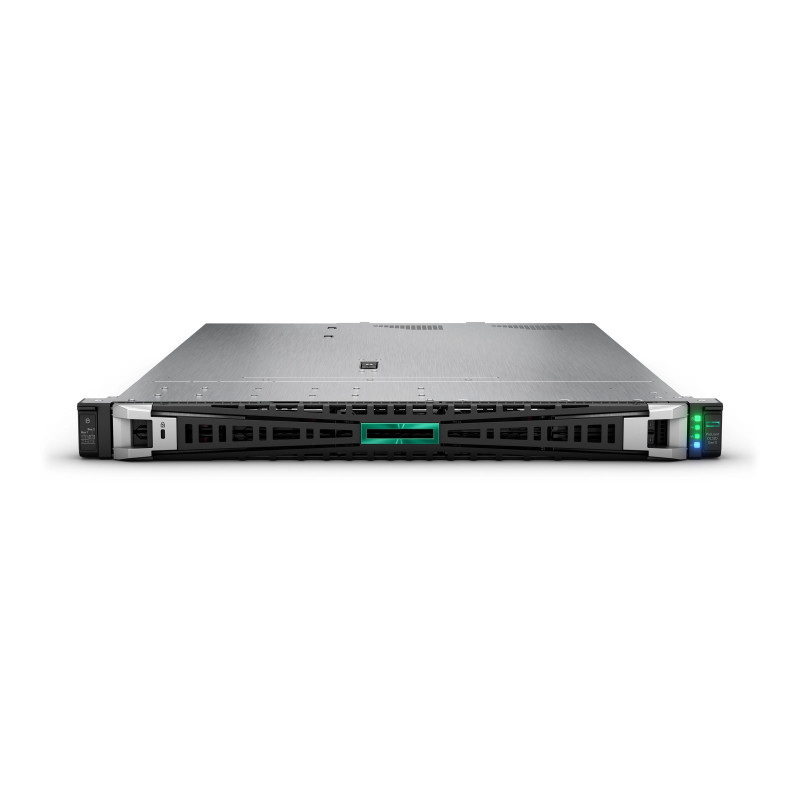

HPE ProLiant DL320 Gen11 - Server - rack-mountable 1U - 1-way - 1 x Xeon Bronze 3508U / up to 2.2 GHz - RAM 16 GB - SATA/SAS - hot-swap 3.5" bay(s) - HDD 2 x 8 TB - Gigabit Ethernet - no OS - monitor: none

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPE ProLiant DL320 Gen11 - Server - rack-mountable 1U - 1-way - 1 x Xeon Bronze 3508U / up to 2.2 GHz - RAM 16 GB - SATA/SAS - hot-swap 3.5" bay(s) - HDD 2 x 8 TB - Gigabit Ethernet - no OS - monitor: none

Specifications

RAM16 GB (installed) / 2.04 TB (max) - DDR5 SDRAM
TypeServer - rack-mountable
Weight13.2 kg
Processor1 x Intel Xeon Bronze 3508U / 2.1 GHz (up to 2.2 GHz, (8-core)
Hard Drive2 x HDD 8 TB - SATA 6Gb/s - 7200 rpm
Networking1GbE
OS ProvidedNo operating system
Cache Memory22.5 MB L3 Cache
LocalisationRegion: Asia Pacific
Video Memory16 MB
Optical StorageNo optical drive
Power RedundancyYes
Software IncludedHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)
Dimensions (WxDxH)43.46 cm x 66.47 cm x 4.28 cm
Server Scalability1-way
Storage ControllerRAID (Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)) - OCP (HPE MR408i-o Gen11 SPDM)
Cache Per Processor22.5 MB
Height (Rack Units)1U
Product DescriptionHPE ProLiant DL320 Gen11 - rack-mountable Xeon Bronze 3508U 2.1 GHz - 16 GB - HDD 2 x 8 TB
Server Storage BaysHot-swap 3.5"
Manufacturer WarrantyLimited warranty - parts and labour - 3 years - on-site - response time: next business day
Environmental StandardsENERGY STAR Qualified
Processor Main FeaturesIntel Turbo Boost Technology 2, Hyper-Threading Technology

Cache Memory

Installed SizeL3 Cache - 22.5 MB
Cache Per Processor22.5 MB

Dimensions & Weight

Width43.46 cm
Depth66.47 cm
Height4.28 cm
Weight13.2 kg

Environmental Parameters

Min Operating Temperature10 C
Max Operating Temperature35 C
Humidity Range Operating8 - 90% RH (non-condensing)

Expansion / Connectivity

Bays4 (total) / 2 (free) x hot-swap 3.5" LFF
Slots2 (total) / 2 (free) x PCIe 5.0 x16 - half-length, full-height 1 (total) / 0 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
Interfaces1 x HPE iLO (1 in front) (service port) 3 x USB 3.2 Gen 1 (1 front, 2 rear) 1 x USB 2.0 (1 internal) 1 x VGA 2 x LAN (Gigabit Ethernet)

General

TypeServer
Product Form FactorRack-mountable - 1U
Built-in DevicesLed panel
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
Server Scalability1-way
Hot-Swap Bays Qty4
LocalisationRegion: Asia Pacific

Graphics Controller

Video Memory16 MB
Video InterfacesVGA

Hard Drive

TypeHDD
Capacity2 x 8 TB
Interface TypeSATA 6Gb/s
Spindle Speed7200 rpm
FeaturesBusiness critical, HPE Multi Vendor, 512 emulation ( 512e )

Manufacturer Warranty

Service & SupportLimited warranty - parts and labour - 3 years - on-site - response time: next business day

Miscellaneous

Included Accessories7 x high performance fans
Compliant StandardsAES, Triple DES, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, FIPS 140-2, ACPI 6.3, Active Directory v1.0, SMBIOS 3.2, Redfish API

Monitor

Monitor TypeNone.

Networking

Ethernet Ports2 x Gigabit Ethernet
Ethernet ControllerBroadcom BCM5720
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Remote Management ProtocolIPMI 2.0, SNMP 3
Remote Management ControllerIntegrated Lights-Out 6
FeaturesACPI support, PXE support, Wake on LAN (WoL)

Operating System / Software

OS ProvidedNo operating system
OS CertifiedMicrosoft Windows Server 2019, Microsoft Windows Server 2022, VMware ESXi 7.0 update 3, VMware ESXi 8.0, VMware ESXi 8.0 update 1, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0, SUSE Linux Enterprise Server 15 SP4, Ubuntu 22.04 LTS, CentOS
SoftwareHPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download)

Optical Storage

TypeNo optical drive

Power

Device TypePower supply - hot-plug
Power RedundancyYes
Power Redundancy Scheme1+1
Installed Qty2
Max Supported Qty2
Voltage RequiredAC 100-240 V
Power Provided500 Watt
80 PLUS Certification80 PLUS Platinum

Processor / Chipset

CPUIntel Xeon Bronze 3508U
Clock Speed2.1 GHz
Max Turbo Speed2.2 GHz
Number of Cores8-core
CPU Qty1
Max CPU Qty1
CPU UpgradabilityUpgradable
Processor Main FeaturesIntel Turbo Boost Technology 2, Hyper-Threading Technology
Chipset TypeIntel C741

RAM

Installed Size16 GB (installed) / 2.04 TB (max)
TechnologyDDR5 SDRAM
Effective Memory Speed2200 MHz
Rated Memory Speed2800 MHz
Form FactorDIMM 288-pin
Slots16 (Total) / 15 (empty)
FeaturesRegistered, HPE SmartMemory
Configuration Features1 x 16 GB

Storage Controller

Type1 x RAID - OCP
Controller Interface TypeSerial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Storage Controller NameHPE MR408i-o Gen11 SPDM
Channel Qty8
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size4 GB

Sustainability Information

ENERGY STAR CertifiedYes
ENERGY STAR Version4.0

Resources

Product information source: Dicker Data Partner Portal.

Hewlett Packard Enterprise
P81570-375
