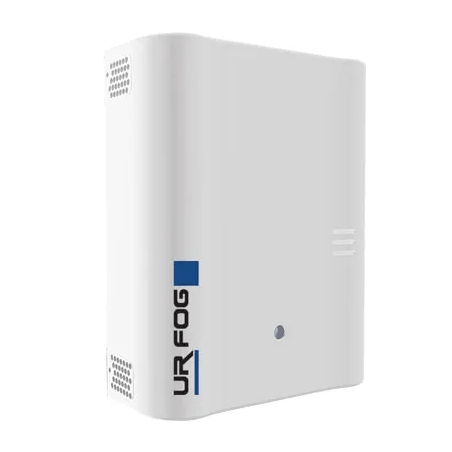

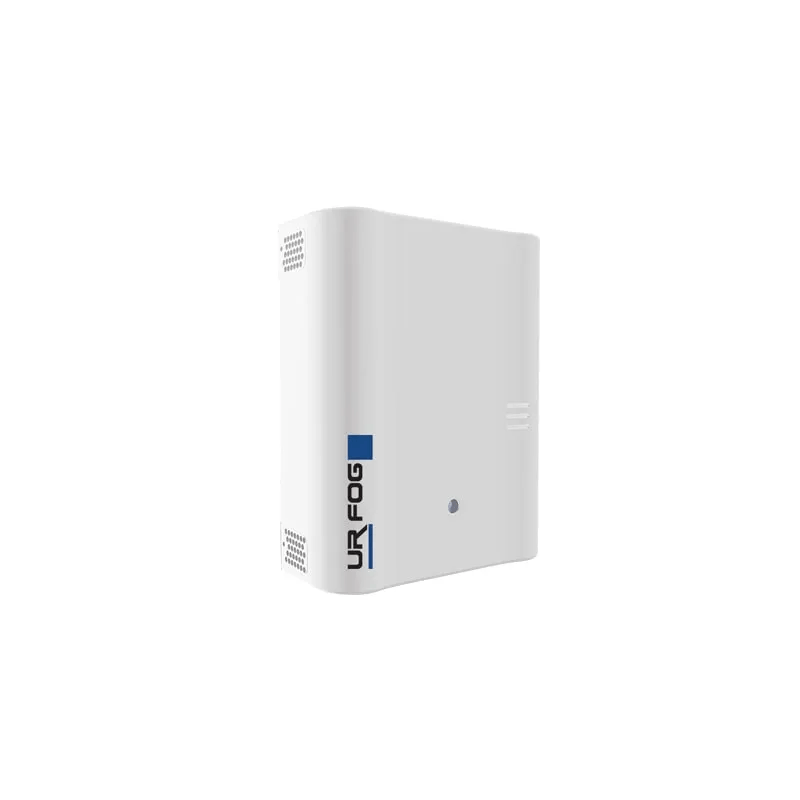

URFOG MODULAR 400 KIT FLUID BAG MODULAR 750 ML INCLUDED
$2,519.90
Tax included
URFOG Modular Series Fog emission and saturation up to 1200 m³ in 46 seconds (400 m³ visibility less than 1 m) Modular is the small, powerful and flexible fogging system that includes all the fastest technologies. Despite the small dimension, it is possible to insert optional boards (such as alarm centrals, sensors, etc.) in allocated areas. The front cabinet is made of plastic material to make the wireless communication easiest between the internally installed devices and the outside. Included Parts: 1 x Modular Series Fogging Machine 1 x 240v AU Power Lead 1 x 12v 2.3Ah Backup Battery 1 x Fluid Cannister 1 x Installation Manual 1 x Exterior Warning Signage 2 x Relay
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
URFOG Modular Series Fog emission and saturation up to 1200 m³ in 46 seconds (400 m³ visibility less than 1 m) Modular is the small, powerful and flexible fogging system that includes all the fastest technologies. Despite the small dimension, it is possible to insert optional boards (such as alarm centrals, sensors, etc.) in allocated areas. The front cabinet is made of plastic material to make the wireless communication easiest between the internally installed devices and the outside. Included Parts: 1 x Modular Series Fogging Machine 1 x 240v AU Power Lead 1 x 12v 2.3Ah Backup Battery 1 x Fluid Cannister 1 x Installation Manual 1 x Exterior Warning Signage 2 x Relay
Specifications
| Colors | white – optional black |
|---|---|
| Mains power | 230 V or 120 V |
| Heating timeo | around 2 hours |
| Number of bags | 1 |
| Compact cabinet | yes |
| Vertical mounting | yes |
| Average consumption | 48 W |
| Horizontal mounting | yes |
| Shot characteristics | programmable in seconds |
| Number of bags included | 1 |
| 2 Ah 12V back up battery | yes |
| Dimension of the machine | L 30 x W 13 x H 39 cm |
| Overall packaging weight | 9,5 Kg |
| Heater max power in start | 280 W |
| Amount of fluid in the bag | 750 ml |
| Dimension of the packaging | L 36 x W 19 x H 45 cm |
| “Layer” heating system | yes |
| Weight of the fogging system | 8,5 Kg |
| Lan Connection : Active Cloud | optional |
| Front panel in plastic material | yes |
| Operating time without mains power | over 1 hour |
| 2 cabled inputs: arming and shooting | yes |
| Maximum emission time in a single shot | 46 sec |
| Top internal riser for optional boards | yes |
| Side internal riser for optional boards | yes |
| Total discharge capability with full bag | 1275 m³ |
| Single shot coverage (visibility less than 1 m) | up to 400 m3 |
| Single shot coverage (visibility more than 1,5 m) | up to 1200 m3 |
| Serial interface RS232 with UR FOG Standard protocol | yes |
| Usb port for computer monitoring (Windows and Linux) | yes |
| 1 cabled output: fault (empty bag, low battery/lack of power supply, system failure) | yes |
Product information source: Dicker Data Partner Portal.
