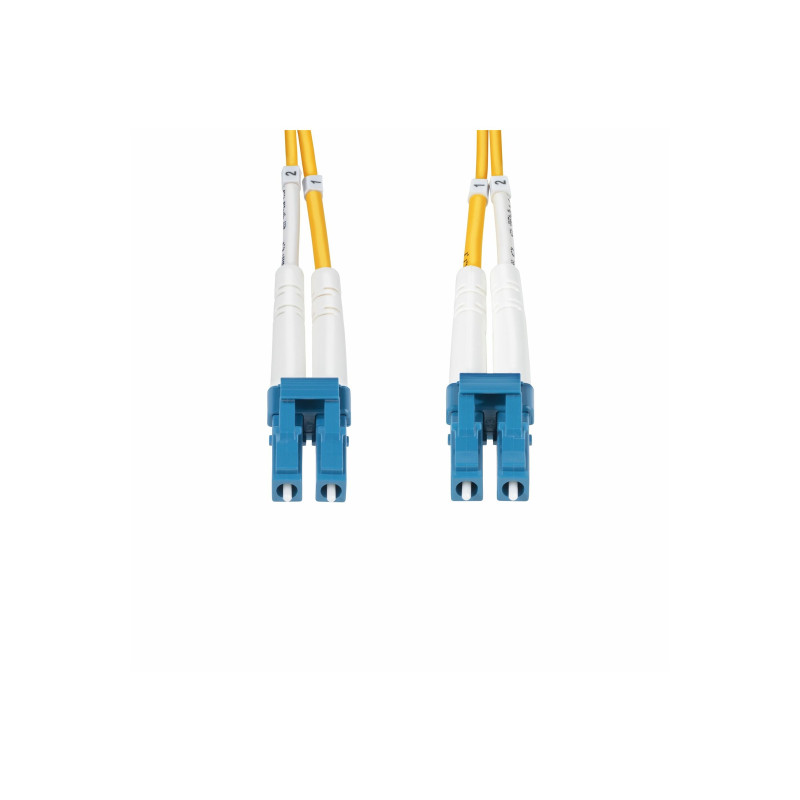

STARTECH 2M (6.6FT) LC TO LC (UPC) OS2 SINGLE MODE DUPLEX FIBER OPTIC CABLE, 9/125M, 100G
$36.94
Tax included
StarTech.com 2m (6.6ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125?m, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2LCLC2M) - Patch cable - LC/UPC single-mode (M) to LC/UPC single-mode (M) - 2 m - 2 mm - fibre optic - duplex - 9 / 125 micron - OS1/OS2 - halogen-free, passive - yellow
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
StarTech.com 2m (6.6ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125?m, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2LCLC2M) - Patch cable - LC/UPC single-mode (M) to LC/UPC single-mode (M) - 2 m - 2 mm - fibre optic - duplex - 9 / 125 micron - OS1/OS2 - halogen-free, passive - yellow
Specifications
| Type | Patch cable - OS1/OS2 |
|---|---|
| Colour | Yellow |
| Length | 2 m |
| Diameter | 2 mm |
| Features | Halogen-free, passive adapter, colour coded connectors, ceramic ferrule, bend insensitive, low insertion loss, bending radius 10mm, aramid fibre reinforced, up to 100 Gbps, 0.3 dB insertion loss, 55 dB return loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support |
| Connector | 2 x LC/UPC single-mode - male |
| Technology | Duplex fibre optic |
| Cable Length | 2 m |
| Product Description | Startech 2m (6.6ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125?m, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2LCLC2M) - patch cable - 2 m - 2 m - yellow |
| Type of Fibre Optics | Singlemode |
| Manufacturer Warranty | Limited lifetime warranty |
| Connector (Second End) | 2 x LC/UPC single-mode - male |
| Core / Cladding Diameter | 9 / 125 micron |
Connectivity
| Connector | 2 x LC/UPC single-mode - male |
|---|---|
| Connector (Second End) | 2 x LC/UPC single-mode - male |
Dimensions & Weight (Shipping)
| Shipping Width | 20 cm |
|---|---|
| Shipping Depth | 22 cm |
| Shipping Height | 0.32 cm |
| Shipping Weight | 20.4 g |
Environmental Parameters
| Min Operating Temperature | -20 C |
|---|---|
| Max Operating Temperature | 60 C |
General
| Network Cable Type | Patch cable - OS1/OS2 |
|---|---|
| Technology | Duplex fibre optic |
| Type of Fibre Optics | Singlemode |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Core / Cladding Diameter | 9 / 125 micron |
| Features | Halogen-free, passive adapter, colour coded connectors, ceramic ferrule, bend insensitive, low insertion loss, bending radius 10mm, aramid fibre reinforced, up to 100 Gbps, 0.3 dB insertion loss, 55 dB return loss, wavelength of 1260-1625 nm, Coarse Wavelength Division Multiplexing (CWDM) support |
| Cable Length | 2 m |
| Length | 2 m |
| Diameter | 2 mm |
| Colour | Yellow |
Manufacturer Warranty
| Service & Support | Limited lifetime warranty |
|---|
Miscellaneous
| Compliant Standards | WEEE, EMI |
|---|
Resources
- 329b9a19 c068 4cde b2f0 afe0b443e1d1.xml
- cb1da753 c6d8 435c bcda 70fc4fd52173.xml
- 04c08eea e0b5 4e72 9d52 e085be9331cf.xml
Product information source: Dicker Data Partner Portal.
