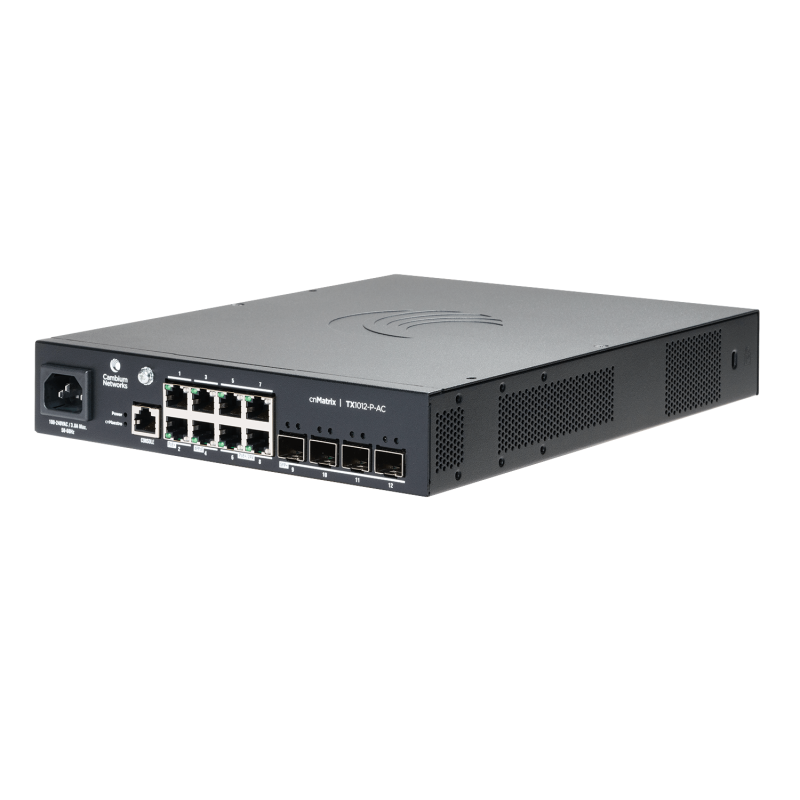

CAMBIUM CNMATRIX TX1012-P-AC, AC POWER POE SWITCH, 8 X 1GBPS & 4 SFP+ NO CORD 3YR
$1,244.55
Tax included
cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance. Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs. 96 Gbps throughput, 8 PoE+ enabled ports, 8 10/100/1000 Mbps ports, SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
cnMatrix TX provides Wireless ISP operators a non-blocking, fully managed, enterprise grade L2/L3 switch portfolio, flexible and intelligent PoE in a single box solution that is easy to install and manage while improving network performance. Fully integrated switching solution purpose-built for WISPs that simplifies deployment operations while improving network performance. Integrated with the complete Cambium portfolio of connectivity solutions, managed via the cnMaestro cloud-based management system. Designed based on the specific needs of Wireless ISPs. 96 Gbps throughput, 8 PoE+ enabled ports, 8 10/100/1000 Mbps ports, SFP+ (10 Gbps) or SFP (1 Gbps) uplink ports
Specifications
| DRAM | 512 MB |
|---|---|
| PVRST | 32 |
| QinQ* | Yes |
| VLANs | 4K |
| Throughput | 96 Gbps |
| ARP Entries | 512 |
| Flash Storage | 128 MB |
| Internal Fans | 1 |
| LACP/Trunking | 8 LAGs/8 links per LA |
| Reset Button* | Ye s |
| Static Routes | 64 |
| Rack Mount Kit | Yes, optional |
| Serial Console | Yes |
| Dynamic Routing | 512 |
| Ingress/Egress ACL | 128 |
| Static ARP Entries | 512 |
| QoS Priority Queues | 8 |
| IGMP Multicast Groups | 256 |
| MAC Address Table Size | 16K |
| Policy Based Automation | Yes |
| 1 Gbps Fiber Ports (SFP) | 0 |
| 10 Gbps Fiber Ports (SFP+) | 4 |
| 10/100/1000 Mbps RJ45 Ports | 8 |
| Low Voltage Passive PoE (24V) | 4 |
| High Power 4 PPoE (up to 90W) | 2 |
| PoE+ Enabled Ports 802 3af/at/bt | 8 |
| Forwarding Rate in Mpps (64 Byte Packets) | 120 |
Product information source: Dicker Data Partner Portal.
