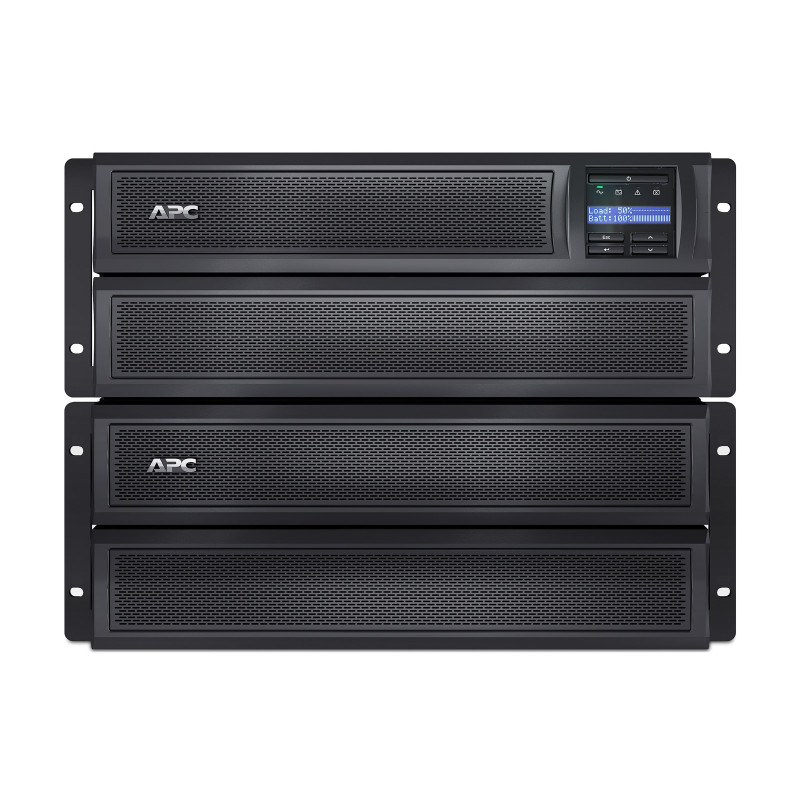

APC Smart-UPS X 3000 Rack/Tower LCD - UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 10 - 4U - black - for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A
Specifications
| Colour | Black |
|---|
| Weight | 38.64 kg |
|---|
| Battery | Lead Acid |
|---|
| Rack Size | 4U |
|---|
| Networking | RS-232, USB |
|---|
| Device Type | UPS - rack-mountable / external |
|---|
| Input Wiring | 1-phase |
|---|
| Pricing Type | APC Take-Back |
|---|
| Batteries Qty | 1 |
|---|
| Input Voltage | AC 208/230 V |
|---|
| Output Voltage | AC 208/230 V |
|---|
| Power Capacity | 2700 watt / 3000 VA |
|---|
| Input Connectors | 1 x power IEC 60320 C20 |
|---|
| Run Time (Up To) | 6.3 min at full load |
|---|
| Output connectors | 8 x power IEC 60320 C13 ? 2 x IEC jumper ? 2 x power IEC 60320 C19 |
|---|
| Dimensions (WxDxH) | 17.8 cm x 48.3 cm x 43.2 cm |
|---|
| Product Description | APC Smart-UPS X 3000 Rack/Tower LCD - UPS - 2700 watt - 3000 VA |
|---|
| Manufacturer Warranty | 3-year warranty |
|---|
| Packaging Recycled Content | Made of recycled cardboard |
|---|
Battery
| Quantity | 1 |
|---|
| Technology | Lead Acid |
|---|
| Run Time (Up To) | 6.3 min at full load 15.7 min at half load |
|---|
| Recharge Time | 3 hours |
|---|
Dimensions & Weight
| Width | 17.8 cm |
|---|
| Depth | 48.3 cm |
|---|
| Height | 43.2 cm |
|---|
| Weight | 38.64 kg |
|---|
Dimensions & Weight (Shipping)
| Shipping Width | 58.6 cm |
|---|
| Shipping Depth | 63.3 cm |
|---|
| Shipping Height | 33 cm |
|---|
| Shipping Weight | 47.73 kg |
|---|
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|
| Max Operating Temperature | 40 C |
|---|
| Humidity Range Operating | 0 - 95% |
|---|
| Sound Emission | 55 dBA |
|---|
Expansion / Connectivity
| Interfaces | 1 x USB 1 x RS-232 1 x EPO (emergency power off) |
|---|
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
|---|
General
| Device Type | UPS - rack-mountable / external |
|---|
| Height (Rack Units) | 4U |
|---|
| Colour | Black |
|---|
Manufacturer Warranty
| Service & Support | Limited warranty - 3 years Limited warranty - battery - 2 years |
|---|
Miscellaneous
| Cables Included | Serial cable USB cable Power cable 1.83 m |
|---|
| Rack Mounting Kit | Included |
|---|
| Features | User-replaceable removable battery, audible alarm, LCD display, overload protection |
|---|
| Compliant Standards | CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH |
|---|
| Pricing Type | APC Take-Back |
|---|
Networking
| Remote Management Interface | RS-232, USB |
|---|
Power Device
| UPS Technology | Line interactive |
|---|
| Input Voltage | AC 208/230 V |
|---|
| Input Voltage Range | AC 140 - 280 V |
|---|
| Frequency Provided | 47 - 63 Hz |
|---|
| Input Wiring | 1-phase |
|---|
| Frequency Required | 47 - 63 Hz |
|---|
| Input Connectors | 1 x power IEC 60320 C20 |
|---|
| Power Output Connectors Details | 8 x power IEC 60320 C13 2 x IEC jumper 2 x power IEC 60320 C19 |
|---|
| Output Voltage | AC 208/230 V 47 - 63 Hz |
|---|
| Power Capacity | 2700 watt / 3000 VA |
|---|
| Output Waveform | Sinewave |
|---|
| Surge Suppression | Yes |
|---|
| Surge Energy Rating | 645 joules |
|---|
| Circuit Protection | Circuit breaker |
|---|
| Efficiency | 98.5% |
|---|
Software / System Requirements
| Software Included | APC PowerChute Business Edition |
|---|
Sustainability Information
| Packaging Recycled Content | Made of recycled cardboard |
|---|
