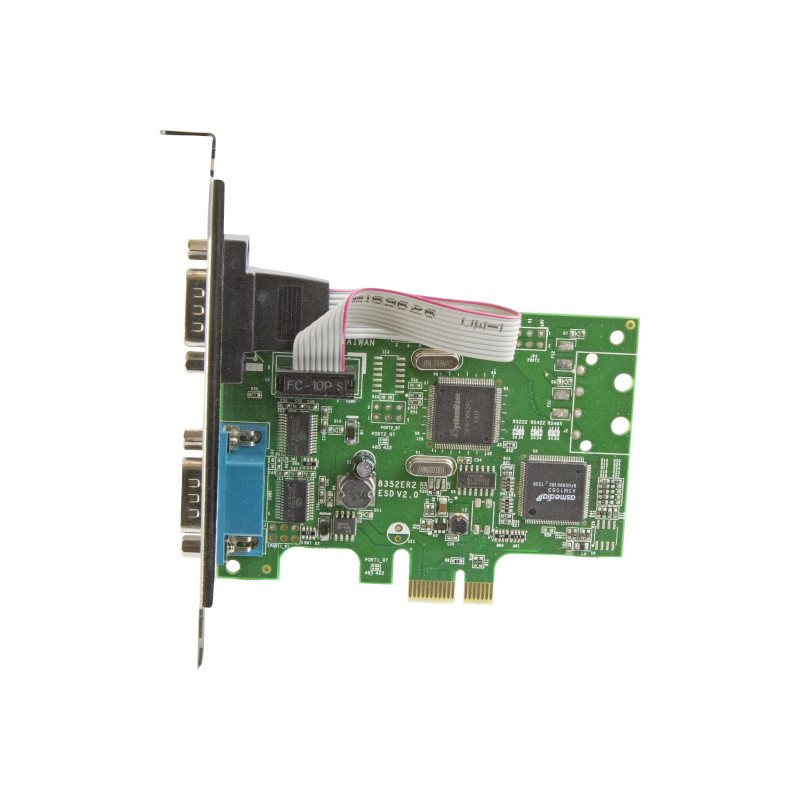

STARTECH.COM PCIe RS232(2), SERIAL CARD+B53+B51
$81.32
Tax included
StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - Serial adapter - PCIe low profile - RS-232 x 2
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - Serial adapter - PCIe low profile - RS-232 x 2
Specifications
| Ports | RS-232 x 2 |
|---|---|
| Weight | 61 g |
| Device Type | Serial adapter |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 460.8 Kbps |
| Dimensions (WxDxH) | 12 cm x 10.3 cm x 2 cm |
| Product Description | Startech 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - serial adapter - PCI Express x1 - RS-232 x 2 |
| System Requirements | Microsoft Windows 95, Microsoft Windows 98 Second Edition, Microsoft Windows Millennium Edition, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Linux 2.4 - 2.6.x |
| Interface (Bus) Type | PCI Express x1 |
| Manufacturer Warranty | 2-year warranty |
| PCI Specification Revision | PCIe 1.0a |
Dimensions & Weight
| Width | 12 cm |
|---|---|
| Depth | 10.3 cm |
| Height | 2 cm |
| Weight | 61 g |
Environmental Parameters
| Min Operating Temperature | -10 C |
|---|---|
| Max Operating Temperature | 80 C |
| Humidity Range Operating | 5 - 85% |
Expansion / Connectivity
| Interfaces | 2 x RS-232 - 9 pin D-Sub (DB-9) |
|---|
General
| Device Type | Serial adapter |
|---|---|
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express x1 |
| PCI Specification Revision | PCIe 1.0a |
Manufacturer Warranty
| Service & Support | Limited warranty - 2 years |
|---|
Miscellaneous
| Included Accessories | 2 x low-profile bracket |
|---|---|
| Compliant Standards | WHQL, FCC, RoHS, WEEE |
Networking
| Ports | RS-232 x 2 |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocol | RS-232 |
| Data Transfer Rate | 460.8 Kbps |
| Features | Software flow control, full duplex mode, 128-byte FIFO |
Software / System Requirements
| Software Included | Drivers & Utilities |
|---|---|
| OS Required | Microsoft Windows 95, Microsoft Windows 98 Second Edition, Microsoft Windows Millennium Edition, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10, Linux 2.4 - 2.6.x |
