D-LINK 1000BASE-T TO 1000BASE-SX MEDIA CONVERTER WITH SC FIBRE CONNECTOR (mmf 850NM) 550M
search
  • D-LINK 1000BASE-T TO 1000BASE-SX MEDIA CONVERTER WITH SC FIBRE CONNECTOR (mmf 850NM) 550M

D-LINK 1000BASE-T TO 1000BASE-SX MEDIA CONVERTER WITH SC FIBRE CONNECTOR (mmf 850NM) 550M

$140.22
Tax included

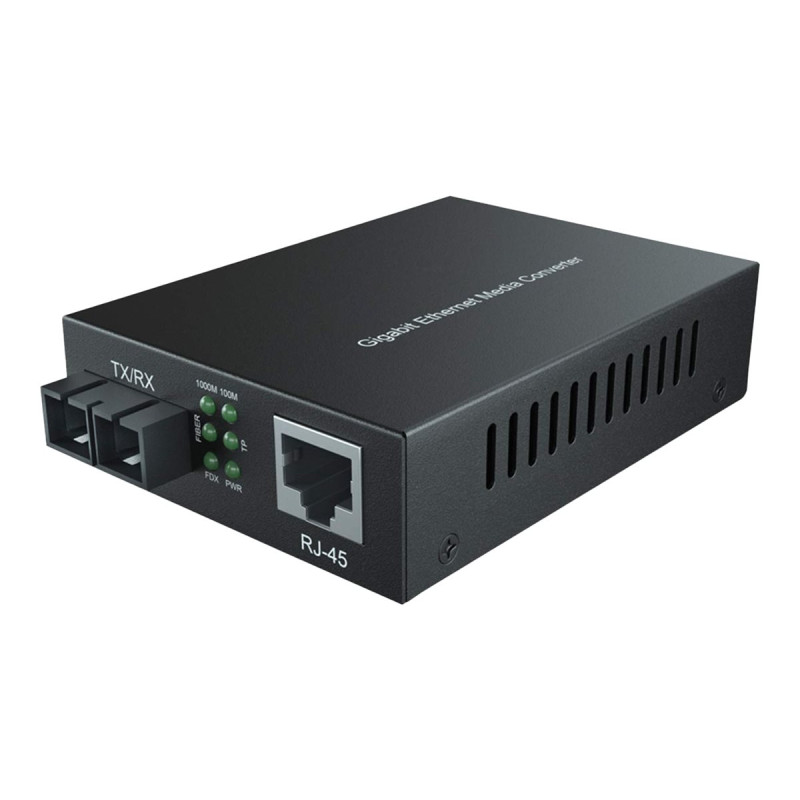

D-Link DMC F700SC - Fibre media converter - 1GbE - 10Base-T, 1000Base-SX, 1000Base-T, 100Base-TX - RJ-45 / SC multi-mode - up to 550 m - 850 nm

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

D-Link DMC F700SC - Fibre media converter - 1GbE - 10Base-T, 1000Base-SX, 1000Base-T, 100Base-TX - RJ-45 / SC multi-mode - up to 550 m - 850 nm

Specifications

Weight124 g
Device TypeFibre media converter - RJ-45 / SC multi-mode
Form FactorExternal
Cabling Type10Base-T, 1000Base-SX, 1000Base-T, 100Base-TX
Data Link Protocol10Mb LAN, 100Mb LAN, 1GbE
Data Transfer Rate1 Gbps
Dimensions (WxDxH)7 cm x 9.4 cm x 2.6 cm
Optical Wave Length850 nm
Product DescriptionD-Link DMC F700SC - fibre media converter - 10Mb LAN, 100Mb LAN, 1GbE
Manufacturer WarrantyLimited lifetime warranty
Max Transfer Distance550 m

Dimensions & Weight

Width7 cm
Depth9.4 cm
Height2.6 cm
Weight124 g

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature50 C
Humidity Range Operating20 - 80% (non-condensing)

Expansion / Connectivity

Interfaces1 x Ethernet 1000Base-T - RJ-45 female 1 x Ethernet 1000Base-SX - SC multi-mode female x 2

General

Device TypeFibre media converter
Form FactorExternal

Manufacturer Warranty

Service & SupportLimited warranty - lifetime

Miscellaneous

Compliant StandardsLVD, CE/EMC Class B, RCM

Networking

Connectivity TechnologyWired
Cabling Type10Base-T, 1000Base-SX, 1000Base-T, 100Base-TX
Data Link Protocol10Mb LAN, 100Mb LAN, 1GbE
Data Transfer Rate1 Gbps
Optical Wave Length850 nm
Max Transfer Distance550 m
Status IndicatorsPower, link/activity, FDX
FeaturesFlow control, full duplex mode, auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Power

Power DeviceExternal power adapter

Resources

Product information source: Dicker Data Partner Portal.
