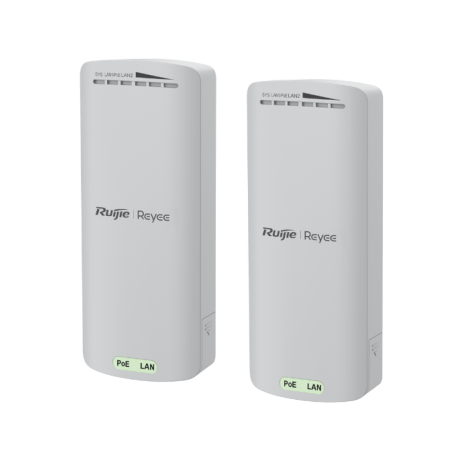

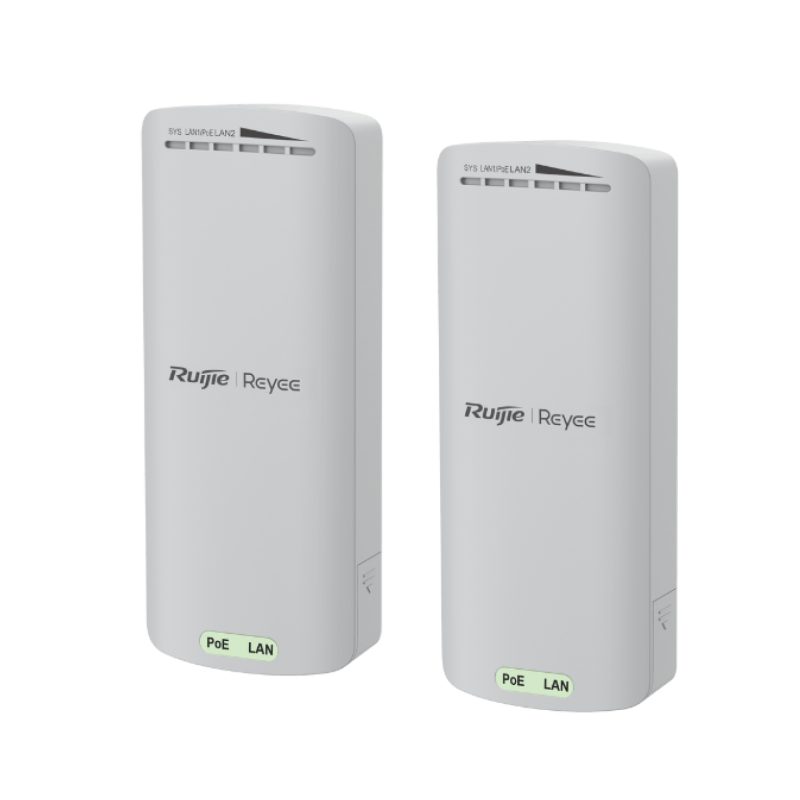

RUIJIE REYEE 2.4GHZ WIRELESS BRIDGE-2 PREPAIRED UNITS-300MBPS 8DBI 500M 2X FE-2 PACK,3YR
$67.57
Tax included
The Ruijie Reyee RG-EST100-E is a 2.4GHz dual-stream wireless bridge designed for point-to-point connections over distances of up to 500 meters. It's known for its reliability in outdoor environments, offering stable data transmissions for applications like CCTV video backhaul. The device is pre-paired for easy setup and can be monitored via the free Ruijie Cloud and App. Highlights - Maximum Distance: 500M - 2 Pre-Paired Units Included - Pre-Paired for Easy Setup - Easy Configuration without Complex Alignment - IP55 Rated (-30℃~60℃), Suited for Outdoor or Elevator Environments - Visually intuitive statistics and easy remote configuration, monitoring and management via the free Ruijie Cloud and App - 3 Year Limited Warranty
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
The Ruijie Reyee RG-EST100-E is a 2.4GHz dual-stream wireless bridge designed for point-to-point connections over distances of up to 500 meters. It's known for its reliability in outdoor environments, offering stable data transmissions for applications like CCTV video backhaul. The device is pre-paired for easy setup and can be monitored via the free Ruijie Cloud and App. Highlights - Maximum Distance: 500M - 2 Pre-Paired Units Included - Pre-Paired for Easy Setup - Easy Configuration without Complex Alignment - IP55 Rated (-30℃~60℃), Suited for Outdoor or Elevator Environments - Visually intuitive statistics and easy remote configuration, monitoring and management via the free Ruijie Cloud and App - 3 Year Limited Warranty
Specifications
| Ports | 2x 10/100Mbps ports, port 1 with Passive PoE |
|---|---|
| Weight | 0.3KG |
| Antenna | Directional antennas, 8dBi |
| Warranty | 3 Year Limited Warranty |
| IP Rating | IP55 |
| Environment | Operating temperature: -30°C to 60°C (-22°F‒140°F) | Storage temperature: -40°C to 70°C (-40°F‒158°F) | Operating humidity: 5% to 95% (non-condensing) | Storage humidity: 5% to 95% (non-condensing) |
| Installation | Wall-mounted/Pole-mounted |
| Polarization | Horizontal: 70°,Vertical: 70° |
| Power Supply | 12V DC power supply or 12V DC Passive PoE |
| Radio Design | 2.4GHz Single-Band Dual-Stream |
| LED Indicator | LED off: No bridging | LED blinking: ≤ -78dBm | One LED on: -78dBm< RSSI ≤ -72dBm | Two LEDs on: -72dBm< RSSI ≤ -65dBm | Three LEDs on: > -65dBm |
| Hardware Button | 1 reset button |
| Operating Band* | 802.11b/g/n: 2.400‒2.483GHz |
| Spatial Streams | 2x2, MU-MIMO |
| Power Consumption | < 5W |
| Bridging Distance | 500M |
| Maximum Throughput | Up to 300Mbps at 2.4GHz |
| Lightning Protection | ±6kV (Common Mode) |
| Transmission Protocol | IEEE 802.11b/g/n |
| Dimensions (D x W x H) | 165.5mm x 68.7mm x 42mm |
| Configuration/Monitoring/Management | Ruijie Cloud and App (Free) |
Product information source: Dicker Data Partner Portal.
