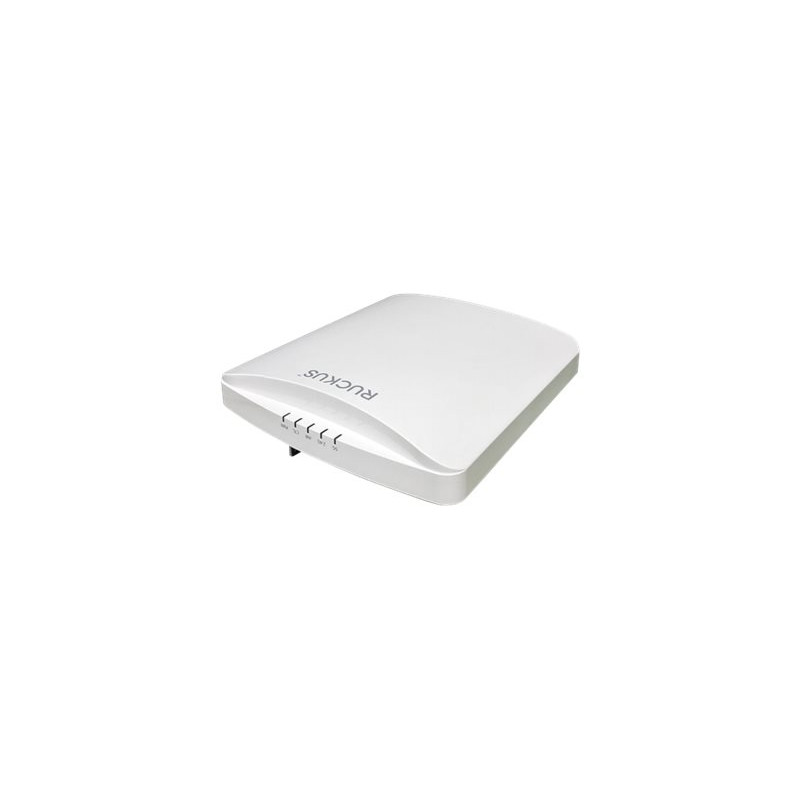

RUCKUS R750 DUAL BAND 11AX INDOOR AP 4X4:4
search
  • RUCKUS R750 DUAL BAND 11AX INDOOR AP 4X4:4

RUCKUS R750 DUAL BAND 11AX INDOOR AP 4X4:4

$1,223.00
Tax included

Ruckus R750 - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Ruckus R750 - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz

Specifications

Weight1.01 kg
CapacityMaximum associated clients: 1024 ? SSIDs per radio: 31
Device TypeRadio access point
Form FactorExternal
PerformanceMaximum data rate (2.4 GHz): 1148 Mbps ? Maximum data rate (5 GHz): 2400 Mbps
LocalisationWorldwide
Frequency Band2.4 GHz, 5 GHz
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Dimensions (WxDxH)20.6 cm x 23.5 cm x 6.2 cm
Product DescriptionRuckus R750 - radio access point - Wi-Fi 6
Power Over Ethernet (PoE) SupportedPoE+

Aerial

DirectivityOmni-directional
Gain Level3 dBi

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature50 C
Humidity Range Operating0 - 95% (non-condensing)

Expansion / Connectivity

Interfaces1 x 1000Base-T (PoE+) - RJ-45 1 x USB 2.0 - Type A 1 x 2.5 GBase-T (PoE+)

General

Device TypeRadio access point
Width20.6 cm
Depth23.5 cm
Height6.2 cm
Weight1.01 kg
LocalisationWorldwide

Miscellaneous

Compliant StandardsUL 2043, RoHS, WEEE, EN 60601-1-2, EN 50121-4, IEC 61373, EN 50121-1

Networking

Form FactorExternal
Connectivity TechnologyWireless
Line Coding FormatOFDM
Data Link ProtocolIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax
Network / Transport ProtocolL2TP, PPPoE
Frequency Band2.4 GHz, 5 GHz
PerformanceMaximum data rate (2.4 GHz): 1148 Mbps Maximum data rate (5 GHz): 2400 Mbps
CapacityMaximum associated clients: 1024 SSIDs per radio: 31
FeaturesAuto-sensing per device, DHCP support, NAT support, VLAN support, auto-uplink (auto MDI/MDI-X), manageable, IPv6 support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), IPv4 support, Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), Space Time Blocking Code (STBC), ceiling mountable, security lock slot (cable lock sold separately), BeamFlex+ Smart Antenna Technology, MU-MIMO technology, SU-MIMO technology, 4x4:4 streams
Encryption AlgorithmAES, WPA-PSK
Authentication MethodRADIUS, LDAP, Basic Service Set Identifier (BSSID), Active Directory
Compliant StandardsIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac

Power

Power Over Ethernet (PoE) SupportedPoE+

Resources

Product information source: Dicker Data Partner Portal.

RUCKUS
901-R750-WW00
