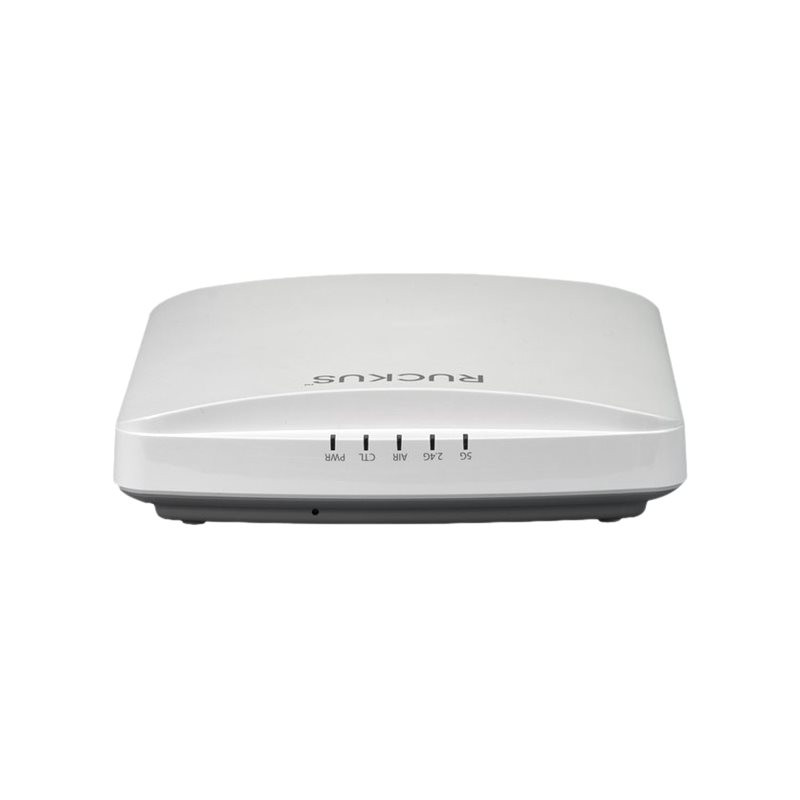

RUCKUS R550 DUAL BAND 11AX INDOOR AP 2X2:2 PLENUM

$697.00
Tax included

Ruckus R550 - Radio access point - 802.11ax (Wi-Fi 6) - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz, 5 GHz - DC power / PoE

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Ruckus R550 - Radio access point - 802.11ax (Wi-Fi 6) - Bluetooth, ZigBee, Wi-Fi 6 - 2.4 GHz, 5 GHz - DC power / PoE

Specifications

PowerDC 48 V / (PoE)
Weight562 g
CapacityMaximum number of configured SSIDs: 31 ? Maximum number of clients: 512
Device TypeRadio access point
Form FactorExternal - indoor
PerformanceMaximum data rate (2.4 GHz): 574 Mbps ? Maximum data rate (5 GHz): 1200 Mbps
LocalisationWorldwide
Frequency Band2.4 GHz, 5 GHz
Data Link ProtocolBluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Dimensions (WxDxH)19.02 cm x 17.6 cm x 4.78 cm
Product DescriptionRuckus R550 - radio access point - Bluetooth, ZigBee, Wi-Fi 6
Manufacturer WarrantyLimited lifetime warranty
Power Over Ethernet (PoE) SupportedPoE+

Aerial

AntennaInternal
Gain Level3 dBi

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature50 C
Humidity Range Operating0 - 95% (non-condensing)

Expansion / Connectivity

Interfaces1 x 1000Base-T (PoE) - RJ-45 1 x 1000Base-T - RJ-45 1 x USB 2.0 - Type A

General

Device TypeRadio access point
Ruggedized DesignIndoor
Width19.02 cm
Depth17.6 cm
Height4.78 cm
Weight562 g
LocalisationWorldwide

Internet of Things (IoT)

Internet of Things (IoT) CompatibleYes
Communications TechnologyBluetooth Low Energy (LE), Zigbee

Manufacturer Warranty

Service & SupportLimited warranty - lifetime

Miscellaneous

Compliant StandardsEN 61000-4-2, EN 61000-4-3, EN 61000-4-5, RoHS, EN 60950-1, WEEE, EN 60601-1-2, EN 62311, EN 50121-4, IEC 61373, EN 50121-1, ISTA 2A

Networking

Form FactorExternal
Connectivity TechnologyWireless
Data Transfer Rate1774 Mbps
Data Link ProtocolBluetooth, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band2.4 GHz, 5 GHz
PerformanceMaximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 1200 Mbps
CapacityMaximum number of configured SSIDs: 31 Maximum number of clients: 512
FeaturesWall mountable, Wireless Intrusion Detection System (WIDS), Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), Low Density Parity Check (LDPC), plenum-rated, Space Time Blocking Code (STBC), GRE tunneling, ceiling mountable, Wireless Intrusion Prevention System (WIPS), Captive Portal, security lock slot (cable lock sold separately), 802.1x authentication, BeamFlex+ Smart Antenna Technology, policy based rate limiting, Hotspot Access Point Capability, Airtime Fairness, 2x2 MU-MIMO technology, port-based VLAN, ChannelFly, SmartMesh, 2x2 SU-MIMO technology, Polarization Diversity with Maximal Ratio Combining (PD-MRC), multicast mode, Airtime-based WLAN Prioritisation, HotSpot 2.0, WISPr authentication, IPv4 and IPv6 dual stack, SoftGRE tunnelling, WMM Power Save, SmartCast, SmartRoam, Spectrum Analysis, SpeedFlex, SmartZone, Transmit Beamforming, background scan based, adaptive band balancing, client load balancing, VLAN pooling, application recognition and control, device fingerprinting
Encryption AlgorithmAES, TKIP, WPA2, WPA-PSK, WPA3-Enterprise, WPA3-Personal, Opportunistic Wireless Encryption (OWE), WPA3-Enhanced Open
Authentication MethodRADIUS
Compliant StandardsIEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, Wi-Fi CERTIFIED 6

Power

Power Over Ethernet (PoE) SupportedPoE+
Voltage RequiredDC 48 V / (PoE)
Power Consumption Operational18.71 Watt

Resources

Product information source: Dicker Data Partner Portal.

RUCKUS
901-R550-WW00
