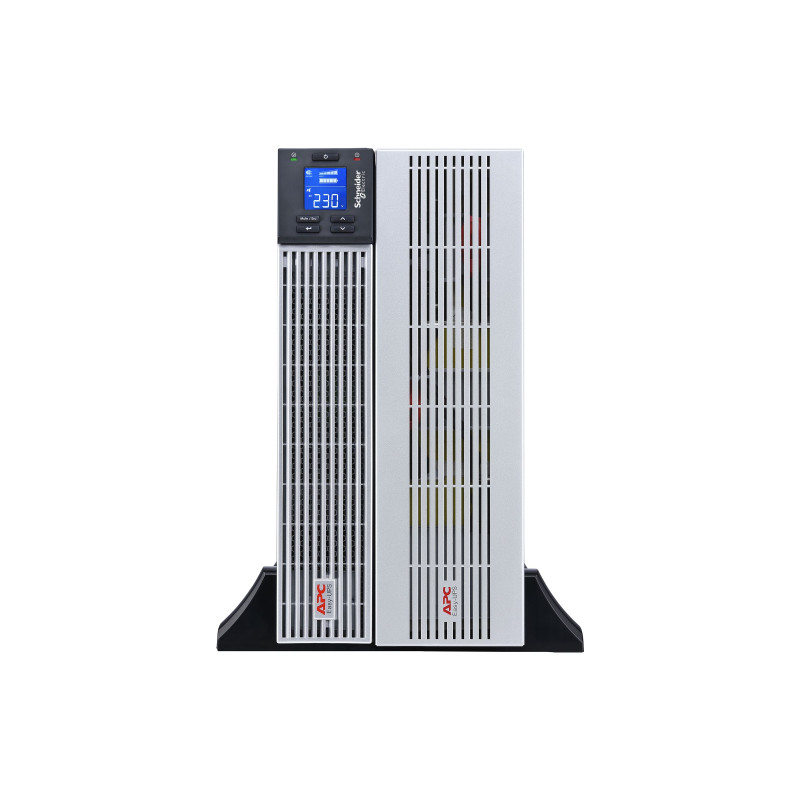

APC EASY UPS ON-LINE LI-ION SRVL RT EXT. RUNTIME 6000VA 230V, WITH RAIL KIT BATT PACK
$0.00
Tax included
APC Easy UPS On-Line - UPS (rack-mountable / external) - extended runtime, hardwire outlet (1P+N+E), Intelligent Card slot, with rail kit - AC 230 V - 6 kW - 6000 VA - Lithium Ion - RS-232, USB, RJ-11, RJ-45 - 5U - black, silver (front bezel)
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
APC Easy UPS On-Line - UPS (rack-mountable / external) - extended runtime, hardwire outlet (1P+N+E), Intelligent Card slot, with rail kit - AC 230 V - 6 kW - 6000 VA - Lithium Ion - RS-232, USB, RJ-11, RJ-45 - 5U - black, silver (front bezel)
Specifications
| Colour | Black, silver (front bezel) |
|---|---|
| Weight | 69.2 kg |
| Battery | Lithium ion Lithium Ion |
| Rack Size | 5U |
| Networking | RS-232, USB, RJ-11, RJ-45 |
| Device Type | UPS - rack-mountable / external |
| Designed For | P/N: AP9544, SRVSMB001, VGL9901I |
| Input Voltage | AC 230 V |
| Output Voltage | AC 230 V |
| Power Capacity | 6 kW / 6000 VA |
| Input Connectors | 1 x hardwire 3-wire (1P+ N + E) |
| Run Time (Up To) | 35 min at full load |
| Dimensions (WxDxH) | 43.8 cm x 68.5 cm x 21.7 cm |
| Product Description | APC Easy UPS On-Line - UPS - extended runtime, hardwire outlet (1P+N+E), Intelligent Card slot, with rail kit - 6 kW - 6000 VA - Li-Ion |
| Included Accessories | Stabilisation feet |
| Manufacturer Warranty | 3-year warranty |
Battery
| Technology | Lithium Ion lithium ion |
|---|---|
| Voltage Provided | 48 V |
| Recharge Time | 5 hours |
| Technology | Lithium Ion lithium ion |
| Voltage Provided | 48 V |
| Recharge Time | 5 hours |
Compatibility Information
| Designed For | P/N: AP9544, SRVSMB001, VGL9901I |
|---|
Dimensions & Weight
| Width | 43.8 cm |
|---|---|
| Depth | 68.5 cm |
| Height | 21.7 cm |
| Weight | 69.2 kg |
| Width | 43.8 cm |
| Depth | 68.5 cm |
| Height | 21.7 cm |
| Weight | 69.2 kg |
Dimensions & Weight (Shipping)
| Shipping Width | 60 cm |
|---|---|
| Shipping Depth | 80 cm |
| Shipping Height | 65.2 cm |
| Shipping Weight | 85.9 kg |
| Shipping Width | 60 cm |
| Shipping Depth | 80 cm |
| Shipping Height | 65.2 cm |
| Shipping Weight | 85.9 kg |
Environmental Parameters
| Min Operating Temperature | 0 C |
|---|---|
| Max Operating Temperature | 40 C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 57.3 dBA |
| Min Operating Temperature | 0 C |
| Max Operating Temperature | 40 C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 57.3 dBA |
Expansion / Connectivity
| Interfaces | RS-232 USB Management - RJ-11 Management - RJ-45 |
|---|---|
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
| Interfaces | RS-232 USB Management - RJ-11 Management - RJ-45 |
| Expansion Slots | 1 (total) / 1 (free) x Intelligent Slot |
General
| Device Type | UPS - rack-mountable / external |
|---|---|
| Height (Rack Units) | 5U |
| Colour | Black, silver (front bezel) |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 5U |
| Colour | Black, silver (front bezel) |
Manufacturer Warranty
| Service & Support | Limited warranty - replace or repair - 3 years Limited warranty - replace or repair - batteries - 5 years |
|---|---|
| Service & Support | Limited warranty - replace or repair - 3 years Limited warranty - replace or repair - batteries - 5 years |
Miscellaneous
| Included Accessories | Stabilisation feet |
|---|---|
| Cables Included | RJ-45 cable RJ-11 cable RS-232 cable USB cable Battery cable Ground cable |
| Rack Mounting Kit | Included |
| Features | Extended runtime, double conversion, LCD display, internal bypass, low battery alarm, overload alarm |
| Compliant Standards | CB, UKCA, RCM, IRAM, TISI, UN38.3, IEC 62619, IP20, EU RoHS, REACH |
| Included Accessories | Stabilisation feet |
| Cables Included | RJ-45 cable RJ-11 cable RS-232 cable USB cable Battery cable Ground cable |
| Rack Mounting Kit | Included |
| Features | Extended runtime, double conversion, LCD display, internal bypass, low battery alarm, overload alarm |
| Compliant Standards | CB, UKCA, RCM, IRAM, TISI, UN38.3, IEC 62619, IP20, EU RoHS, REACH |
Networking
| Remote Management Interface | RS-232, USB, RJ-11, RJ-45 |
|---|---|
| Remote Management Interface | RS-232, USB, RJ-11, RJ-45 |
Power Device
| UPS Technology | On-line |
|---|---|
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 120 - 300 V |
| Frequency Provided | 50/60 Hz 4Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 3-wire (1P+ N + E) |
| Output Voltage | AC 230 V 50/60 Hz |
| Power Capacity | 6 kW / 6000 VA |
| Output Waveform | Sinewave |
| Surge Energy Rating | 600 Joules |
| Efficiency | 93.5% at 100% Load |
| UPS Technology | On-line |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 120 - 300 V |
| Frequency Provided | 50/60 Hz 4Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 3-wire (1P+ N + E) |
| Output Voltage | AC 230 V 50/60 Hz |
| Power Capacity | 6 kW / 6000 VA |
| Output Waveform | Sinewave |
| Surge Energy Rating | 600 Joules |
| Efficiency | 93.5% at 100% Load |
