APC SMART-UPS (SRT), 2200VA, IEC(8), NETWORK, LCD, 2U RACK, 3YR
search
  • APC SMART-UPS (SRT), 2200VA, IEC(8), NETWORK, LCD, 2U RACK, 3YR
  • APC SMART-UPS (SRT), 2200VA, IEC(8), NETWORK, LCD, 2U RACK, 3YR

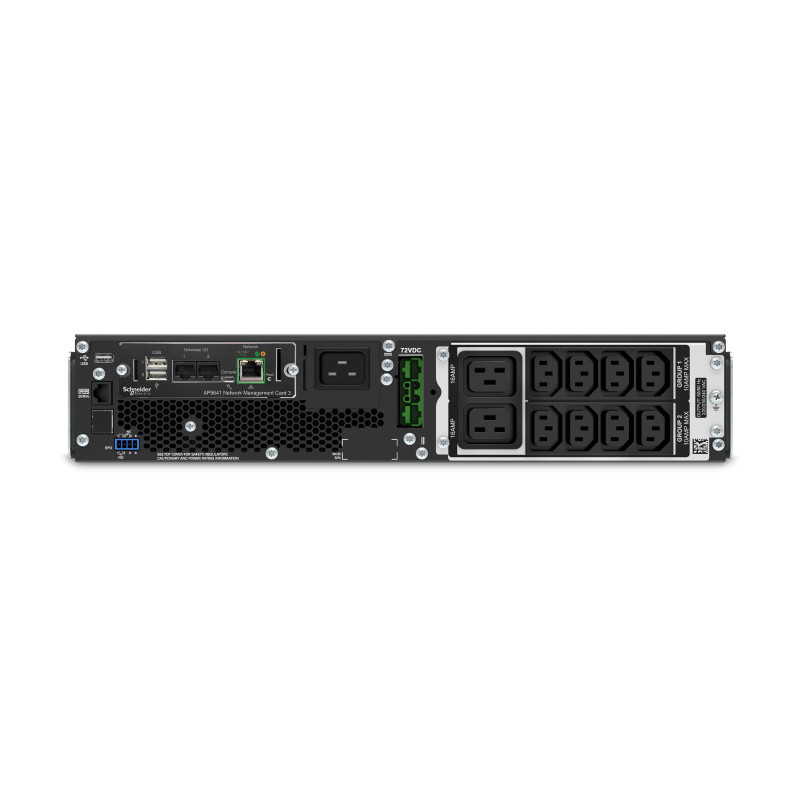

APC SMART-UPS (SRT), 2200VA, IEC(8), NETWORK, LCD, 2U RACK, 3YR

$0.00
Tax included

APC Smart-UPS SRT 2200VA RM - UPS (rack-mountable / external) - AC 220/230/240 V - 1980 Watt - 2200 VA Lead Acid - RS-232, USB - output connectors: 10 - 2U - black - with APC UPS Network Management Card - for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A

Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

APC Smart-UPS SRT 2200VA RM - UPS (rack-mountable / external) - AC 220/230/240 V - 1980 Watt - 2200 VA Lead Acid - RS-232, USB - output connectors: 10 - 2U - black - with APC UPS Network Management Card - for P/N: AR4018SPX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, NBWL0356A

Specifications

ColourBlack
Weight25 kg
BatteryLead Acid Lead Acid
Rack Size2U
NetworkingRS-232, USB
Device TypeUPS - rack-mountable / external
Bundled withAPC UPS Network Management Card
Designed ForP/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3300W, AR3305W, AR3340G, AR3355SP, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A
Input VoltageAC 220/230/240 V
Output VoltageAC 220/230/240 V
Power Capacity1980 watt / 2200 VA
Input Connectors1 x power IEC 60320 C20
Run Time (Up To)4 min at full load
Output connectors8 x power IEC 60320 C13 ? 2 x power IEC 60320 C19
Dimensions (WxDxH)43.2 cm x 58.4 cm x 8.5 cm
Product DescriptionAPC Smart-UPS SRT 2200VA RM - UPS - 1980 watt - 2200 VA - Lead Acid - with APC UPS Network Management Card
Manufacturer Warranty3-year warranty
Environmental StandardsENERGY STAR

Battery

TechnologyLead Acid Lead Acid
Run Time (Up To)4 min at full load 12 min at half load
Recharge Time3 hours
FeaturesMaintenance free, sealed, leak-proof

Compatibility Information

Designed ForP/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, NBWL0356A

Dimensions & Weight

Width43.2 cm
Depth58.4 cm
Height8.5 cm
Weight25 kg

Dimensions & Weight (Shipping)

Shipping Width59.9 cm
Shipping Depth81 cm
Shipping Height24.6 cm
Shipping Weight34.02 kg

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature40 C
Humidity Range Operating0 - 95% (non-condensing)
Sound Emission55 dBA

Expansion / Connectivity

Interfaces1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x EPO (emergency power off) 1 x management (USB) - 4 pin USB Type A
Expansion Slots1 (total) / 0 (free) x SmartSlot

General

Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
ColourBlack
Bundled withAPC UPS Network Management Card

Manufacturer Warranty

Service & SupportLimited warranty - 3 years Limited warranty - batteries - 2 years

Miscellaneous

Cables Included3 x power cable - external USB cable - external Network cable - external Power extension cable - external EPO cable
Rack Mounting KitIncluded
FeaturesAudible alarm, LCD display, internal bypass, Eco-Mode
Compliant StandardsVDE, IEC 62040-2, RoHS, EN 62040-2, IP20, EAC, RCM, IEC 62040-1, EN 62040-1

Networking

Remote Management InterfaceRS-232, USB

Power Device

UPS TechnologyOn-line
Input VoltageAC 220/230/240 V
Input Voltage RangeAC 160 - 275 V
Input Voltage Range (Adjustable)AC 100 - 275 V
Frequency Provided50/60 Hz
Frequency Required40 - 70 Hz
Input Connectors1 x power IEC 60320 C20
Power Output Connectors Details8 x power IEC 60320 C13 2 x power IEC 60320 C19
Output VoltageAC 220/230/240 V 50/60 Hz
Power Capacity1980 watt / 2200 VA
Output WaveformSinewave
Surge SuppressionYes
Surge Energy Rating340 joules
Circuit ProtectionCircuit breaker
Efficiency87.1% at 25% Load, 92.2% at 100% Load, 91.1% at 50% Load, 92% at 75% Load

Software / System Requirements

Software IncludedAPC PowerChute Business Edition

Sustainability Information

ENERGY STARYes

Resources

Product information source: Dicker Data Partner Portal.

APC
SRT2200RMXLI-NC
