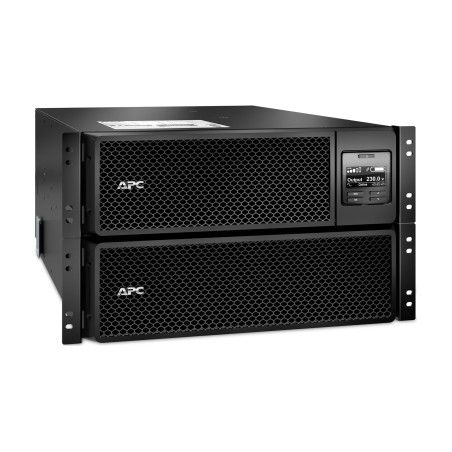

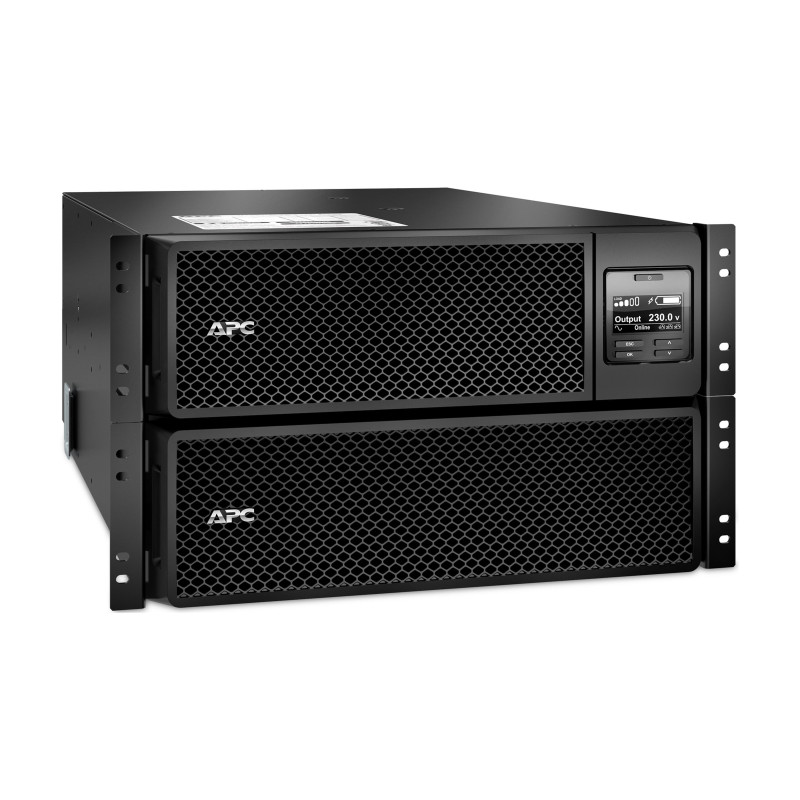

APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR
search
  • APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR
  • APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR
  • APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR
  • APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR

APC SMART-UPS (SRT), 10K VA, IEC(10), NETWORK, LCD, 6U RACK/TWR, 3YR

$0.00
Tax included

APC Smart-UPS SRT 10000VA RM - UPS (rack-mountable) - AC 230 V - 10 kW - 10000 VA - Ethernet 10/100, USB - output connectors: 14 - 6U - black - for P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3155W, AR3305W, AR3355SP, AR3355W, NBWL0356A

Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

APC Smart-UPS SRT 10000VA RM - UPS (rack-mountable) - AC 230 V - 10 kW - 10000 VA - Ethernet 10/100, USB - output connectors: 14 - 6U - black - for P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3155W, AR3305W, AR3355SP, AR3355W, NBWL0356A

Specifications

ColourBlack
Weight111.82 kg
BatteryLead Acid
Rack Size6U
NetworkingEthernet 10/100, USB
Device TypeUPS - rack-mountable
Designed ForP/N: ACDC2513, AR2401, AR2487G, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, NBWL0356A
Input VoltageAC 230 V
Output VoltageAC 230 V ? 3%
Power Capacity10 kW / 10000 VA
Input ConnectorsHardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Run Time (Up To)3.8 min at full load
Output connectors6 x power IEC 60320 C13 ? 4 x power IEC 60320 C19 ? 1 x hardwire 3-wire (HN + G) ? 3 x IEC connector
Dimensions (WxDxH)43.2 cm x 71.5 cm x 26.3 cm
Product DescriptionAPC Smart-UPS SRT 10000VA RM - UPS - 10 kW - 10000 VA
Manufacturer Warranty3-year warranty

Battery

TechnologyLead Acid
Run Time (Up To)3.8 min at full load 11.5 min at half load
Recharge Time3 hours
FeaturesMaintenance free, sealed, leak-proof

Compatibility Information

Designed ForP/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC2513, ACF001, ACF002, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A

Dimensions & Weight

Width43.2 cm
Depth71.5 cm
Height26.3 cm
Weight111.82 kg

Dimensions & Weight (Shipping)

Shipping Width60 cm
Shipping Depth1 m
Shipping Height46.1 cm
Shipping Weight130 kg

Environmental Parameters

Min Operating Temperature0 C
Max Operating Temperature40 C
Humidity Range Operating0 - 95% (non-condensing)
Sound Emission55 dBA

Expansion / Connectivity

Interfaces1 x management (Ethernet) - RJ-45 1 x management (USB) - 4 pin USB Type B 1 x EPO (emergency power off) 1 x serial - RJ-45
Expansion Slots1 (total) / 1 (free) x SmartSlot

General

Device TypeUPS - rack-mountable
Height (Rack Units)6U
ColourBlack

Manufacturer Warranty

Service & SupportLimited warranty - 3 years Limited warranty - batteries - 2 years

Miscellaneous

FeaturesAudible alarm, LCD display
Compliant StandardsC-Tick, VDE, IEC 60950, EN 50091-2, RoHS, EN 50091-1, REACH, EN 62040-2, IP20, EAC

Networking

Remote Management InterfaceEthernet 10/100, USB

Power Device

UPS TechnologyOn-line
Input VoltageAC 230 V
Frequency Provided50/60 Hz
Frequency Required45 - 65 Hz
Input ConnectorsHardwire 5-wire (3PH + N + G), hardwire 3-wire (1PH + N + G)
Power Output Connectors Details6 x power IEC 60320 C13 4 x power IEC 60320 C19 1 x hardwire 3-wire (HN + G) 3 x IEC connector
Output VoltageAC 230 V 3% - 50/60 Hz
Power Capacity10 kW / 10000 VA
Output WaveformSinewave
Surge SuppressionYes
Surge Energy Rating480 joules
Efficiency98%

Software / System Requirements

Software IncludedAPC PowerChute Business Edition

Resources

Product information source: Dicker Data Partner Portal.

APC
SRT10KRMXLI
New
