HPE MSA 2070 SFF 2x12Gb SAS 4-port Cntrl 12x1.92TB SSD 23TB Storage Array
search
  • HPE MSA 2070 SFF 2x12Gb SAS 4-port Cntrl 12x1.92TB SSD 23TB Storage Array

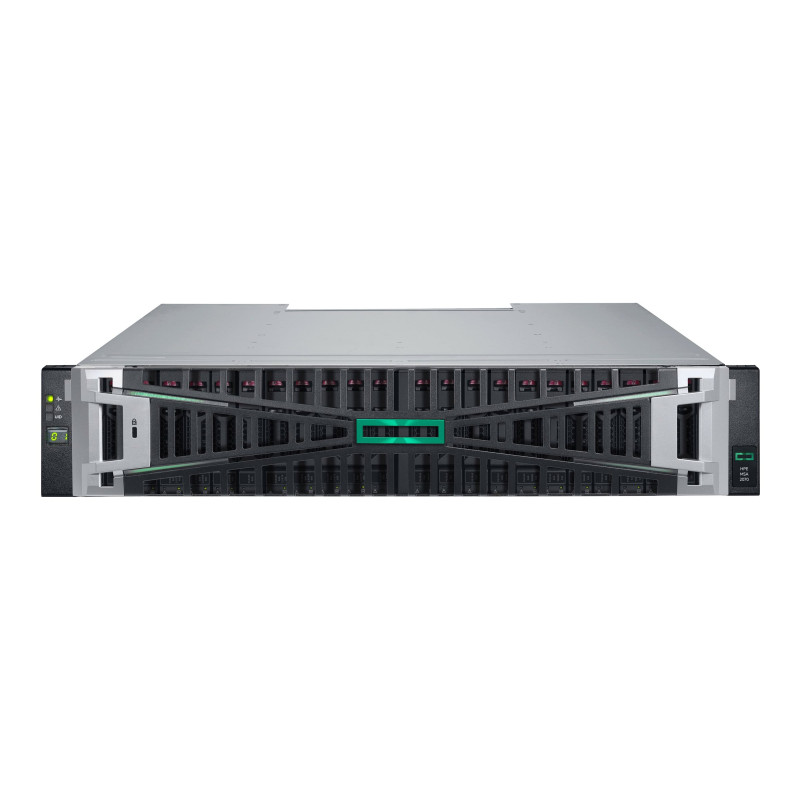

HPE MSA 2070 SFF 2x12Gb SAS 4-port Cntrl 12x1.92TB SSD 23TB Storage Array

$0.00
Tax included

HPE Modular Smart Array 2070 12Gb SAS SFF Storage - Solid state / hard drive array - 23 TB - 24 bays (SAS-3) - SSD 1.92 TB x 12 - SAS 12Gb/s (external) - rack-mountable - 2U

Quantity
Out-of-Stock

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPE Modular Smart Array 2070 12Gb SAS SFF Storage - Solid state / hard drive array - 23 TB - 24 bays (SAS-3) - SSD 1.92 TB x 12 - SAS 12Gb/s (external) - rack-mountable - 2U

Specifications

PowerAC 100-240 V 50/60 Hz
InterfaceSAS 12Gb/s
Hard Drive12 x 1.92 TB SSD
Device TypeSolid state / hard drive array
OS RequiredMicrosoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix XenServer
Enclosure TypeRack-mountable - 2U
Power RedundancyYes
Supported DrivesSAS-3
Dimensions (WxDxH)48.3 cm x 50.8 cm x 8.9 cm
Storage ControllerRAID (SAS 12Gb/s) - RAID 0, 1, 5, 6, 10
Product DescriptionHPE Modular Smart Array 2070 12Gb SAS SFF Storage - solid state / hard drive array
Total Array Capacity23 TB
Manufacturer Warranty3-year warranty
Max Supported Capacity737.28 TB
Environmental StandardsENERGY STAR Qualified
Storage Controller Quantity2
Installed Devices / Modules Qty12 (installed) / 24 (max)

Chassis

Installed Devices / Modules Qty12
Supported Devices / Modules Qty24
Supported DrivesSAS-3

Dimensions & Weight

Width48.3 cm
Depth50.8 cm
Height8.9 cm

Environmental Parameters

Min Operating Temperature5 C
Max Operating Temperature40 C
Humidity Range OperatingUp to 85% RH

Environmental Standards

ENERGY STAR CertifiedYes

Expansion / Connectivity

Expansion Bays24 (total) / 12 (free) - 2.5" SFF
Interfaces8 x SAS 12Gb/s 4 x mini-USB 2.0 (management) 2 x Ethernet 1000Base-T (management) - RJ-45 2 x SAS 12Gb/s (expansion port)

General

Device TypeSolid state / hard drive array
Enclosure TypeRack-mountable - 2U

Hard Drive

TypeSSD
Capacity12 x 1.92 TB

Manufacturer Warranty

Service & SupportLimited warranty - parts - 3 years

Miscellaneous

FeaturesSMTP support, SNMP support
Compliant StandardsASHRAE Class A3, UL, CSA 62368-1, EN 62368-1, EU Lot 9, VCCI Class A, FCC Class A certified, ICES-003 Class A, EN 55032 Class A, CISPR 32 Class A, EN 61000-3-2, EN 61000-3-3, RoHS, China RoHS, WEEE
Included AccessoriesRack mounting kit, 2 x PDU cords (IEC C14)

Power

Power Device2 x internal power supply - hot-plug
Max Supported Qty2
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 100-240 V 50/60 Hz
Power Provided580 Watt
80 PLUS Certification80 PLUS Platinum

Processor

CPUNo CPU

Storage

Total Array Capacity23 TB
Max Supported Capacity737.28 TB
HDD Array External InterfaceSAS 12Gb/s

Storage Controller

TypeRAID (SAS-3)
Installed Qty2
Interface TypeSAS 12Gb/s
Data Transfer Rate1.2 GBps
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Storage Controller (2nd)

Installed Qty2

System Requirements

OS RequiredMicrosoft Windows Server, VMware vSphere, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, Citrix XenServer

Resources

Product information source: Dicker Data Partner Portal.

HPE
P84178-B25
New
